USED 1969 Blanchard 22K-42, 1969, REBUILT BY V-R-I (DATE UNKNOWN)
Overview
Description
42" Chuck 40HP Spindle Blanchard 22K-42, 1969, REBUILT BY V-R-I (DATE UNKNOWN) ROTARY SURFACE GRINDER, 1/2" CHUCK LIFE, SLUDGE CONV., COOLANT IN BASE,
Specifications

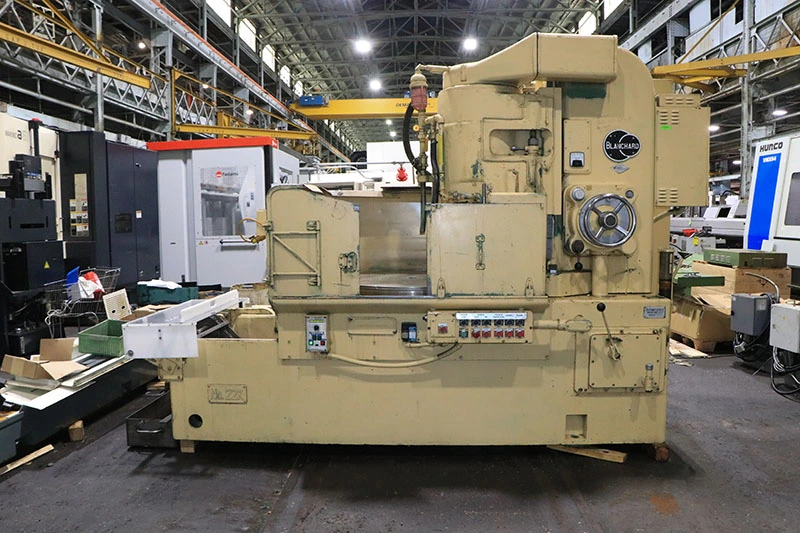

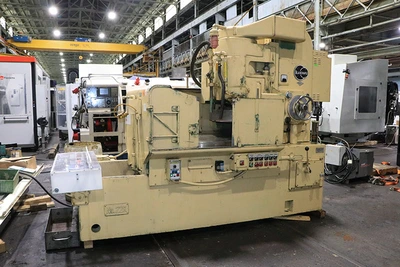

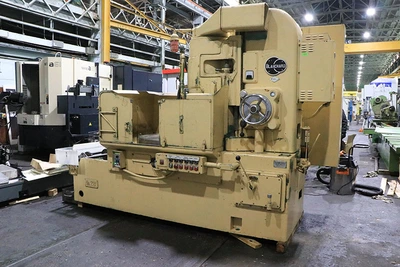

42" BLANCHARD ROTARY SURFACE GRINDER,
WITH WET BASE, COOLANT IN BASE,
& MOTORIZED SLUDGE CONVEYOR
** REBUILT AT SOME POINT BY "VERMONT REBUILD INC." **
MODEL: #22K-42 S/N: 12900 NEW: 1969
CHUCK DIAMETER ........................ 42"
SWING INSIDE GUARDS ................... 48"
VERTICAL RANGE UNDER NEW WHEEL ........ 12
MAXIMUM LOAD ON CHUCK ................. 3,000 LBS
GRINDING WHEEL DIAMETER ............... 22"
GRINDING WHEEL SPEED .................. 720 RPM
CHUCK SPEEDS (6) ...................... 6 TO 33 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"
APPROXIMATE DIMENSIONS............. 12'L x 8'4"W x 102"H
APPROXIMATE WEIGHT .................... 14,500 LBS
EQUIPPED WITH:
40 HP 3/60/230-460 VOLT SPINDLE MOTOR, MADE BY GE
HARDENED & REPLACEABLE BED WAYS
TRABON HAND PUMP CENTRALIZED LUBRICATION SYSTEM
12" VERTICAL RANGE
WET BASE W/SELF-CONTAINED COOLANT SYSTEM
& MOTORIZED SLUDGE CONVEYOR

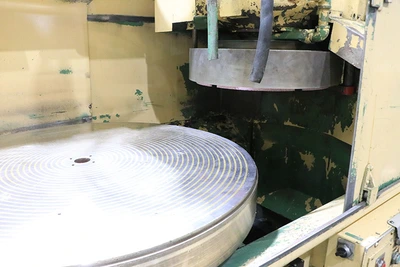

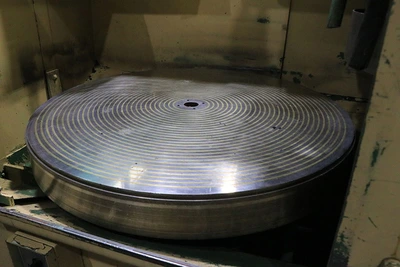

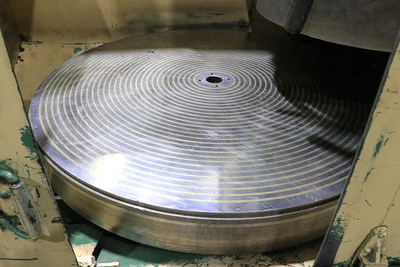

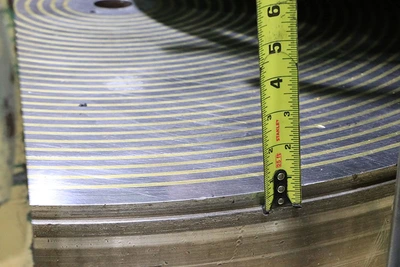

42" ELECTRO-MAGNETIC CHUCK, WITH NEARLY 1/2" CHUCK LIFE

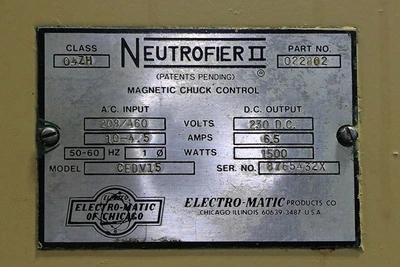

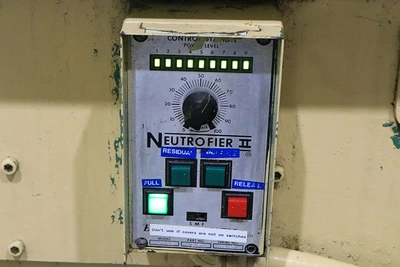

"ELECTRO-MATIC" II NEUTROFIER CONTROL, 1500 WATT POWER SUPPLY
"ELECTRO-MATIC II" VARIABLE HOLD CONTROL

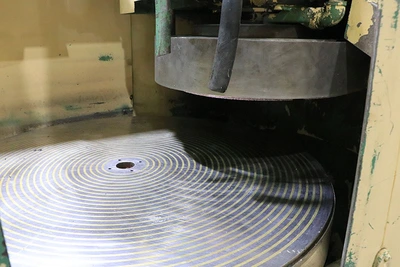

22" DIAMETER SEGMENTED WHEEL (CORTLAND)
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
INTERLOCKED WITH FEED
3/60/230-460 VOLT MOTORS
WIRED PRESENTLY FOR 3/60/460 VOLTS
SPECIAL NOTE:
OUR MACHINE WAS REBUILT AT SOME POINT BY
"VERMONT REBUILD INC". AS A MACHINE THAT
WAS REBUILT, THE CONDITION OF OUR MACHINE
IS FAR ABOVE AVERAGE. WE DO NOT KNOW
WHEN OUR MACHINE WAS REBUILT, AS
"V-R-I" IS NO LONGER IN BUSINESS.
Link to video: 42" BLANCHARD ROTARY SURFACE GRINDER
** EXCELLENT CONDITION, OUR MACHINE RUNS TERRIFICALLY **
** GUARDING IS COMPLETE & WITHOUT HOLES **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
