USED 1971 Blanchard 22-42, 50 H.P., WET BASE, 3/8" CHUCK LIFE, COOLANT
Overview
Description
42" Chuck 50HP Spindle Blanchard 22-42, 50 H.P., WET BASE, 3/8" CHUCK LIFE, COOLANT ROTARY SURFACE GRINDER, 24" VERTICAL,
Specifications

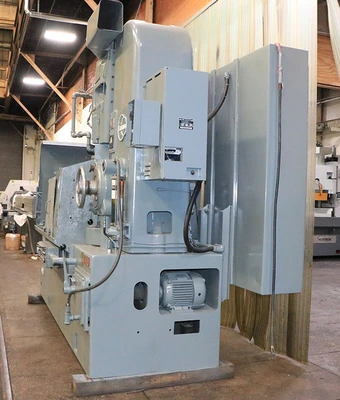

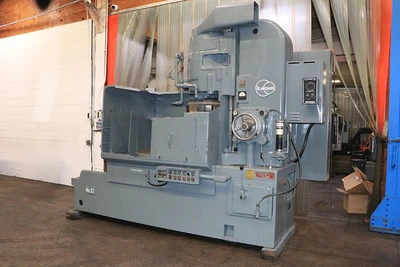

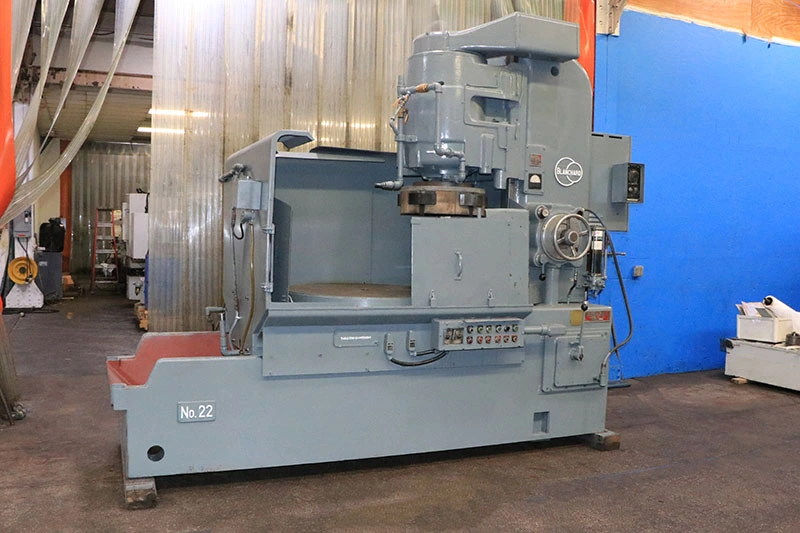

42" BLANCHARD ROTARY SURFACE GRINDER,
WET BASE WITH SELF-CONTAINED COOLANT SYSTEM
MODEL: #22-42 S/N: 13551 NEW: 1971
CHUCK DIAMETER ........................ 42"
SWING INSIDE GUARDS ................... 48"
VERTICAL RANGE UNDER NEW WHEEL ........ 24"
MAXIMUM LOAD ON CHUCK ................. 3,000 LBS
GRINDING WHEEL DIAMETER ............... 22"
GRINDING WHEEL SPEED .................. 720 RPM
CHUCK SPEEDS (6) ...................... 6 TO 33 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"
APPROXIMATE DIMENSIONS................. 12'L X 8'4"W X 102"H
APPROXIMATE WEIGHT .................... 15,000 LBS
EQUIPPED WITH:
HIGH COLUMN - THIS MACHINE HAS 24" VERTICAL
RANGE WITH A NEW WHEEL! THIS IS A DESIRABLE
OPTIONAL FEATURE THAT PROVIDES YOU TO DO WORK
THAT MANY OTHER BLANCHARD OWNERS CANNOT DO.
50 HP 3/60/230-460 VOLT SPINDLE MOTOR
HARDENED & REPLACEABLE BED WAYS
TRABON MANUAL LUBRICATION PUMP
EXTRA VERTICAL RANGE (24" CAPACITY)
WET BASE W/SELF-CONTAINED COOLANT SYSTEM

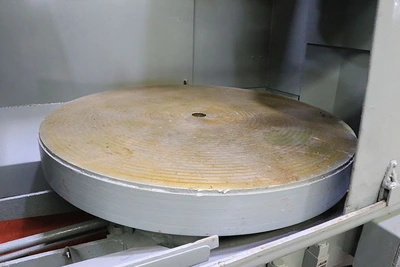

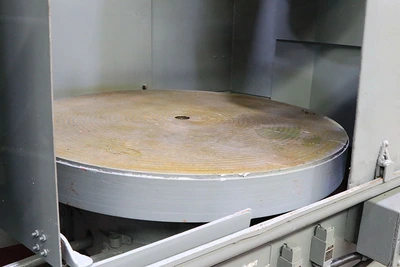

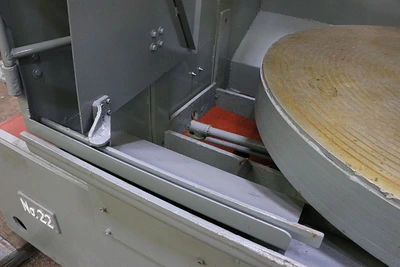

42" ELECTRO-MAGNETIC CHUCK, 3/8" CHUCK LIFE

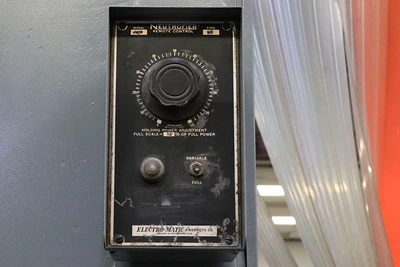

"ELECTRO-MATIC" NEUTROFIER CONTROL, 1500 WATT POWER SUPPLY

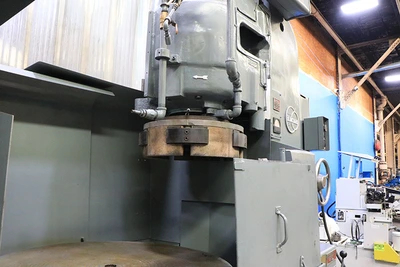

22" DIAMETER SEGMENTED WHEEL (CORTLAND)
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
INTERLOCKED WITH FEED
WIRED PRESENTLY FOR 3/60/460 VOLTS, 90 KVA
** SERVICED, TAKEN APART, CLEANED & PAINTED **
** READY FOR DELIVERY **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERB CONDITION & APPEARANCE - THIS IS A SUPERIOR MACHINE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
