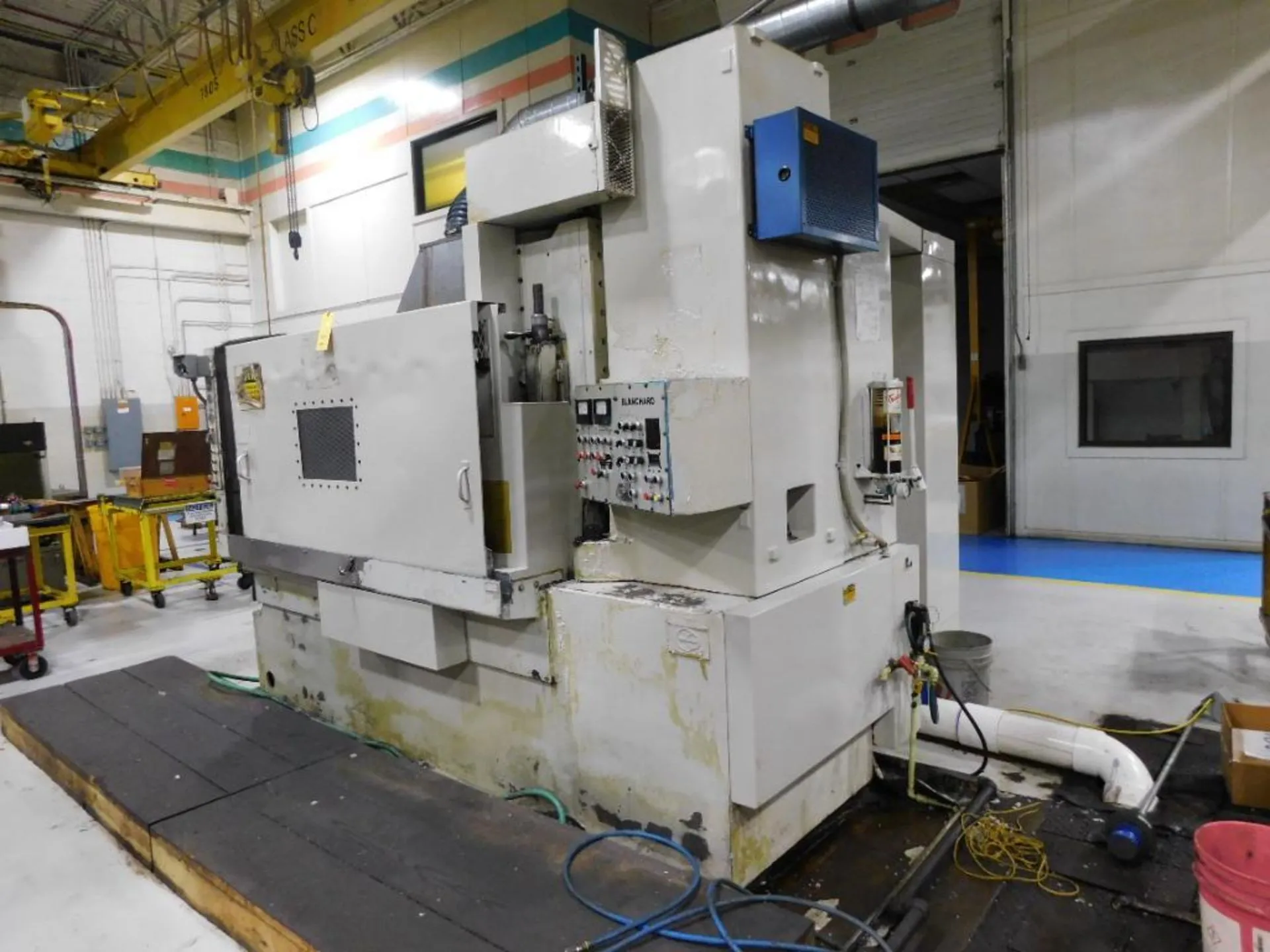

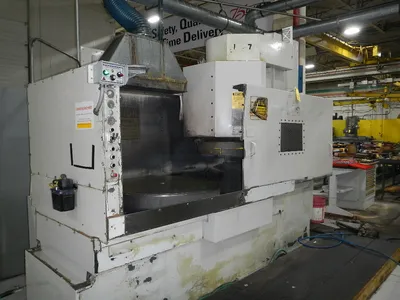

USED 1988 Blanchard 22AD-42, 1988, PROG. AUTO CYCLE CONTROL

42" Chuck 50HP Spindle Blanchard 22AD-42, 1988, PROG. AUTO CYCLE CONTROL ROTARY SURFACE GRINDER, DRY BASE, EXT. COOLANT SYSTEM

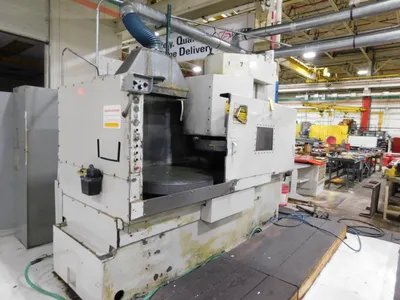

  42" BLANCHARD ROTARY SURFACE GRINDER

 WITH PROGRAMMABLE AUTO CYCLE CONTROLS

MODEL:  22AD-42    S/N: 15756     NEW: 1988

SPECIFICATIONS:

CHUCK DIAMETER .................... 42"

SWING INSIDE GUARDS ............... 48"

VERTICAL RANGE UNDER NEW WHEEL .... 24"

MAXIMUM LOAD ON CHUCK ............. 3,000 LBS

GRINDING WHEEL DIAMETER ........... 22"

GRINDING WHEEL SPEED .............. 720 RPM

CHUCK SPEEDS (6) .................. 6 TO 24 RPM

FEED SYSTEM:

RAPID TRAVERSE RATE ............... 20" IPM

WHEELHEAD JOG RATE ................ 0.100" IPM

COARSE FEED RATE .................. 0.001" TO .100" IPM

COARSE FEED MODE .................. CONTINUOUS/IMPULSE

FINE FEED RATE .................... 0.001" TO .010" IPM

COARSE TO FINE CHANGEOVER POINT ... 0 TO .009"

SPARKOUT TIMER .................... 0.1 TO 10 MINUTES

APPROXIMATE DIMENSIONS .......... 124'L X 8'4"W X 9'7"H

APPROXIMATE WEIGHT ................ 16,000 LBS

EQUIPPED WITH:

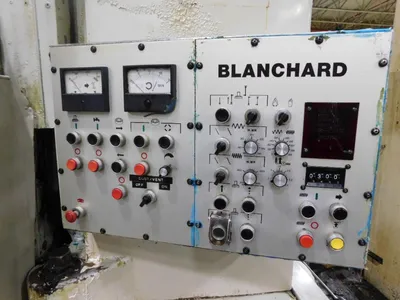

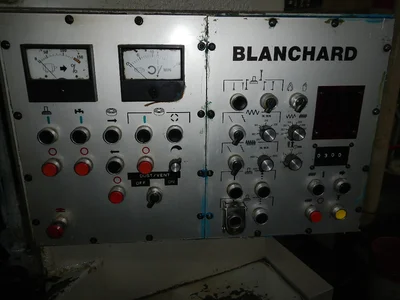

-AUTO-CYCLE PROGRAMMABLE CYCLE CONTROL W/DIGITAL DISPLAY

-"A" SERIES MACHINE W/ALL ELECTRIC DRIVES

-HARDENED AND REPLACEABLE BASE WAYS

-50 HP 3/60/230-460 VOLT SPINDLE MOTOR

-24" VERTICAL CAPACITY

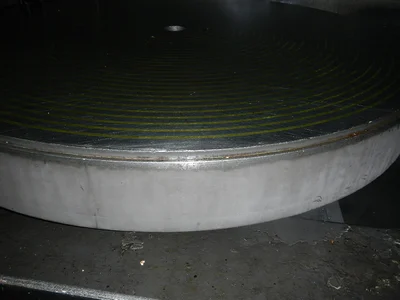

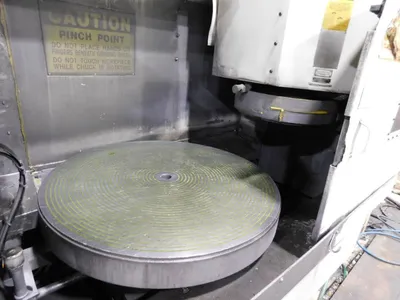

-42" ELECTRO-MAGNETIC CHUCK.  PRESENTLY HAS "NEAR NEW"

  CHUCK LIFE, 3/8" CHUCK LIFE!

-INFINITELY VARIABLE HOLD NEUTROFIER CONTROL.

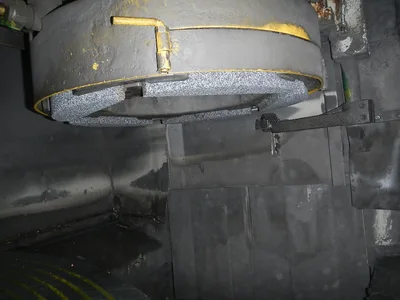

-22" DIAMETER SEGMENTED WHEEL (CORTLAND)

-DY BASE

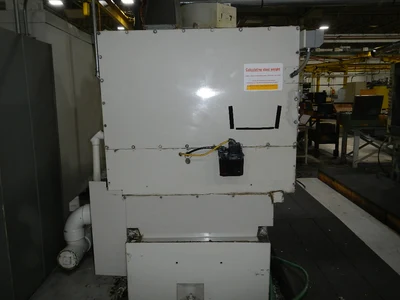

-"BARNES" MPE-25 COOLANT SYSTEM, WITH BOTH

  PAPER FILTRATION & A MAGNETIC SEPARATOR

-PRESENTLY WIRED FOR 3/60/460 VOLTS, 90 FLA

SPECIAL NOTE:

MACHINE WAS MAINTAINED WELL.  WE CAN PROVIDE YOU

 WITH ACCESS TO THE GENTLEMAN WHO PERFORMED THE

 "PM" AT THE FORMER OWNER'S SHOP.

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE **

LINK TO VIDEO: https://youtu.be/mEy0nn74Je8?si=5IFwF12nauuWfjcU

FOR MORE INFORMATION: Call Andy at 973-497-7600
