USED 1979 Cincinnati-Heald 261, 1979, COOLANT,

17" Chuck 10HP Spindle Cincinnati-Heald 261, 1979, COOLANT, ROTARY SURFACE GRINDER

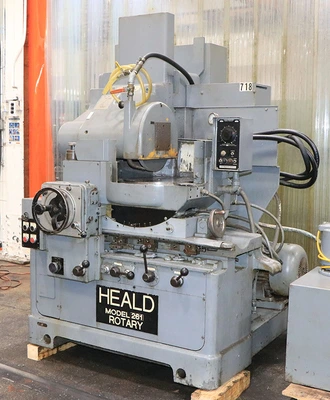

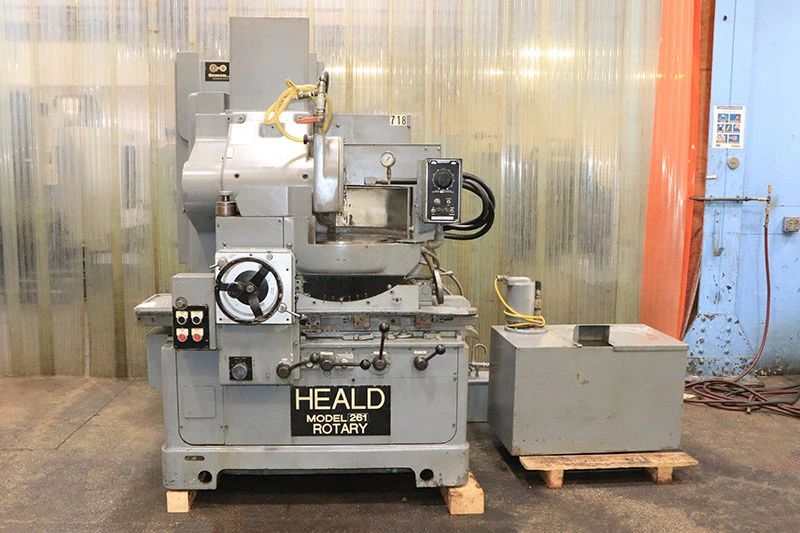

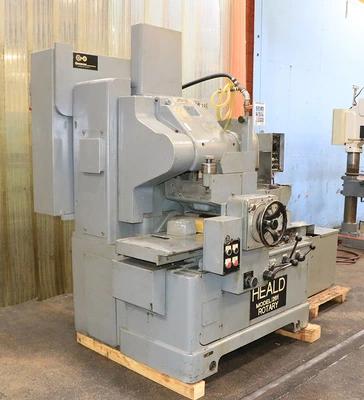

17" Cincinnati-Milacron Heald

 Rotary Surface Grinder

Model No. 261     S/N: 47313      New: 1979

 SPECIFICATIONS:

Chuck Face Diameter ............ 16- 7/8"

Max. Swing Inside Guards ....... 18- 1/2"

Std. Wheel Size .......... 14" Dia. X 1"W x 5"B

Max. Distance From Top

 of Chuck to Wheel Center ...... 17-3/4"

Min. Distance From Top of

  Chuck to Wheel Center ........ 4-1/4"

Max. Height Under a New Wheel... 10-1/2"

Total Table Slide Travel ....... 12"

Table Grinding Stroke .......... 8"

Table Tilt Adjustment, Convex .. 17 Degrees

Table Tilt, Concave ............ 10 Degrees

Table Speeds for Grinding ...... 0 to 12' FPM

Table Speeds for Run-Out ....... 35' FPM

Chuck Speeds, Variable ......... 50 - 225 RPM

Chuck Feed Rates ............... 0 - 20 FPM

Auto Power Downfeed

 Of Spindle ................ 0.0001" to .0006"

Machine Weight, Approx. .....8,350 Lbs

Approx Dims. ............... 78" x 60" x 80"H

Equipped With:

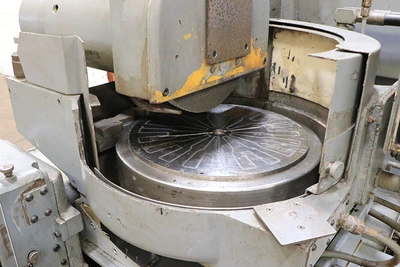

* 17" Diameter Electro-Magnetic Chuck, "Tuning Fork Top"

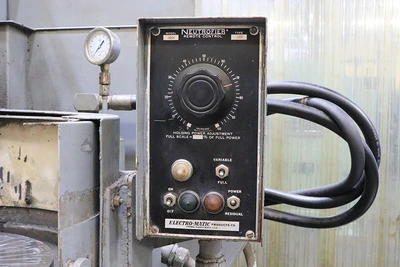

* "Electro-Matic" Neutrofier with Variable Power Control

* Wheel Retraction Knob

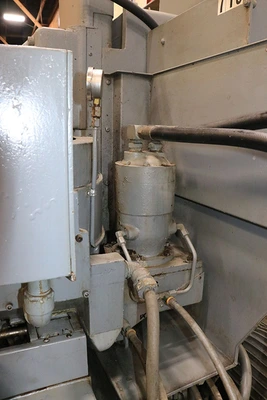

* Automatic Lubrication Through Hydraulic Reservoir

   for the Table Ways & Vertical Ways

* Separate Lubrication System for the Chuck

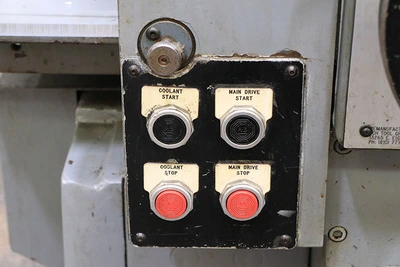

* Coolant Pump & Tank

* 15 HP Spindle Motorm 3/60/230-460 Volts

* 3 HP Hydraulic Pump

* 3/60/220-440 Volt Motors

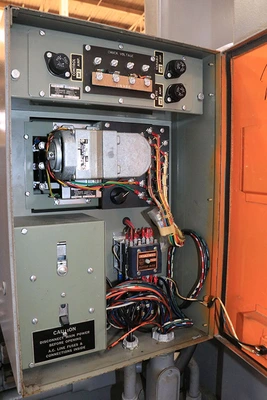

* Machine is Presently Wired for 3/60/460 Volts, 23 FLA

** Inspect Under Power in our Harrison, NJ Warehouse **

** Superb Condition & Appearance **

FOR MORE INFORMATION: Call Andy at 973-497-7600
