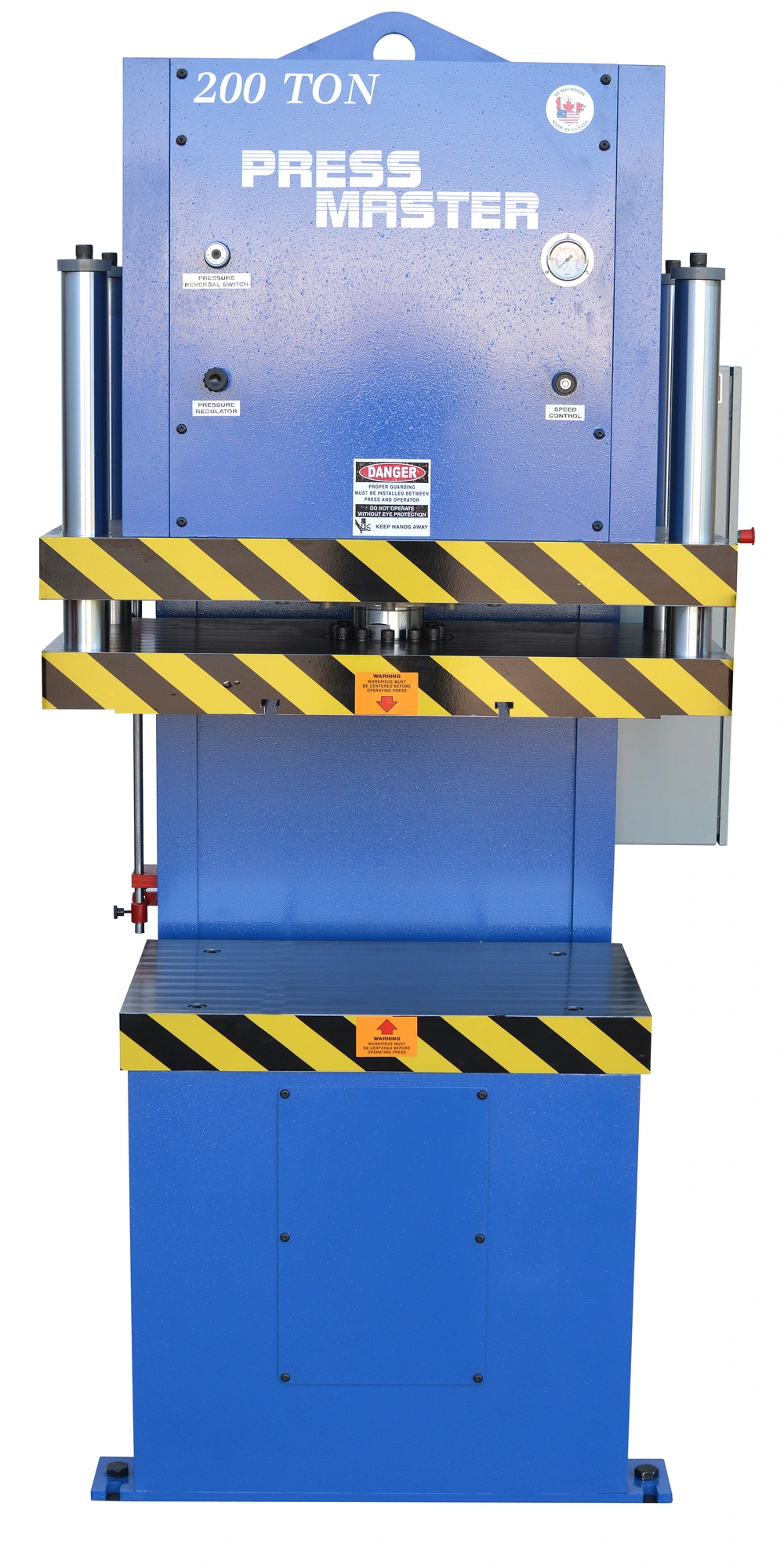

USED Pressmaster CFP-200

200 Ton 15" Stroke Pressmaster CFP-200 HYDRAULIC PRESS, New Design

200 TON PRESSMASTER HYDRAULIC

C-FRAME PRESS

MODEL CFP-200T        BRAND NEW

RATED CAPACITY .............................. 200 TONS

APPROACH SPEED .............................. 65 IPM

PRESSING SPEED .............................. 6 IPM

RETURN SPEED ................................ 78 IPM

TABLE WIDTH ................................. 35"

TABLE DEPTH ................................. 22"

U-SLOT WIDTH ................................ 4"

DAYLIGHT .................................... 20"

FULL STROKE ................................. 15"

THROAT ...................................... 13"

TABLE HEIGHT ................................ 34-3/4"

TOTAL DEPTH ................................. 58"

TOTAL HEIGHT ................................ 102"

TOTAL WIDTH ................................. 40"

UPPER PLATEN WIDTH .......................... 35"

UPPER PLATEN DEPTH .......................... 22"

MOTOR ....................................... 15 HP

AVAILABLE VOLTAGES ............ 230/460/575 / 3 PH / 60 Hz

STANDARD FEATURES:

- PRESSURE GAUGE

- PRESSURE REGULATOR

- ADJUSTABLE SPEED CONTROL

- ADJUSTABLE STROKE CONTROL

- PRESSURE REVERSAL SWITCH

- RAM TRAVEL IS GUIDED BY FOUR PRECISION-GROUND GUIDE RODS

- JOG MODE USED FOR SIMPLIFYING SETUPS

- DUAL CONTROL - YOUR CHOICE OF USING MOVABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS WITH EXTRA EMERGENCY STOP OR FOOT PEDAL

- PROGRAMMABLE CONTROL SYSTEM (PLC)

- LOW SPEED BALDOR ELECTRIC MOTOR

- AIR COOLED INDUSTRIAL OIL COOLER

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND AVAILABLE THOUGHOUT NORTH AMERICA

- ONE YEAR WARRANTY

- MFG. IN NORTH AMERICA

SHIPPING DIMENSIONS ........... 66" L X 60" W X 111" H

APPROX. WEIGHT ................ 13,400

AVAILABLE OPTIONS:

- FULL LIGHT CURTAIN GUARDING ON 3 SIDES ..... $

- T-SLOTTING ......... (PER LINEAR INCH) ..... $

FOR MORE INFORMATION: Call Rick at 973-497-7560
