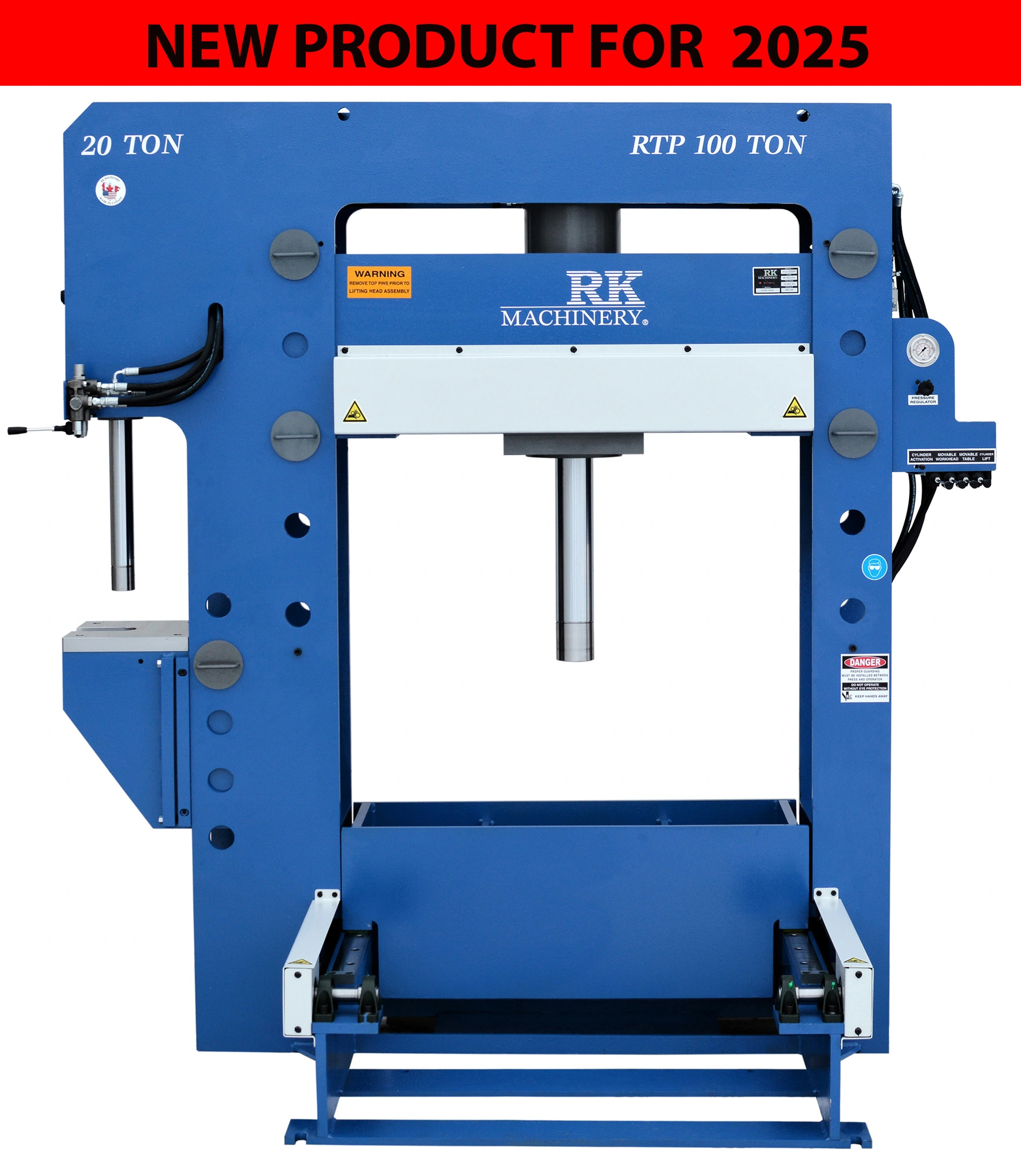

USED Pressmaster RTPBP-100/20-MWH

100 Ton 16" Stroke Pressmaster RTPBP-100/20-MWH H-FRAME HYDRAULIC PRESS

100 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED

STRAIGHTENING PRESS WITH SIDE MOUNTED 20 TON BROACHING PRESS

H-FRAME:

RATED CAPACITY .............................. 100 TONS

WIDTH BETWEEN UPRIGHTS ...................... 48"

DEPTH BETWEEN POSTS ........ ................ 13-1/4"

MAXIMUM RAM TO TABLE ........................ 32"

STROKE ... .................................. 16"

TABLE TRAVEL ................................ 23-1/4"

FLOOR TO TABLE TOP .......................... 24-3/4"

CYLINDER BORE SIZE .......................... 9"

PRESSING SPEED .............................. 19 INCH/MIN

RETURN SPEED ................................ 24 INCH/MIN

BROACH:

RATED CAPACITY .............................. 20 TONS

BORE ........................................ 4"

STROKE ...................................... 20"

PRESSING SPEED .............................. 22.5 INCH/MIN

RETURN SPEED ................................ 159 INCH/MIN

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)

DIMENSIONS: 68" X 102" X 100" H

WEIGHT: 6,000 LBS.

STANDARD FEATURES:

- VARIABLE RAM SPEED IS FINGER TIP CONTROLLED THE MORE

THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS

ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL

THE PROPER SPEED FOR THE TASK. (H-FRAME AND BROACH)

- PRESSURE REGULATOR TO CONTROL THE AMOUNT OF PRESSURE

REQUIRED. (H-FRAME AND BROACH)

- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION.

- HYDRAULIC POWERED MOVABLE TABLE ALLOWS FOR EASY LOADING AND UNLOADING OF HEAVY WORKPIECES.

- HYDRAULIC POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK.

- HYDRUALIC POWERED LIFT FOR VERTICAL DISPLACEMENT OF HEAD AND CYLINDER.

- OPEN SIDES TO FACILITATE WORK ON LONG PIECES.

- PANEL MOUNTED GLYCERINE FILLED GAUGE. (H-FRAME AND BROACH)

- SAFETY VALVE PROTECTS AGAINST OVERLOADS.

- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- LOW SPEED. QUIET OPERATION.

- HIGH-QUALITY LOW-SPEED BALDOR MOTOR.

- 15 GALLON OIL RESERVOIR.

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,000

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- PRESS PLATE ................................ $2,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

- 60" BETWEEN THE POSTS ...................... $6,500

AVAILABLE IN MANY TONNAGES AND CONFIGURATIONS

FOR MORE INFORMATION: Call Rick at 973-497-7560
