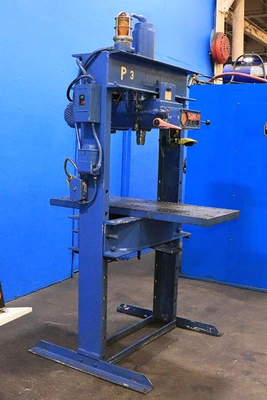

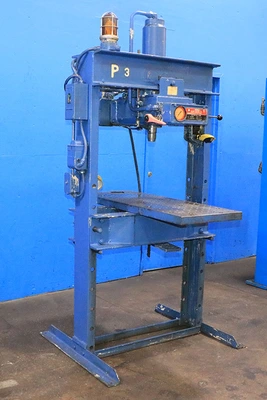

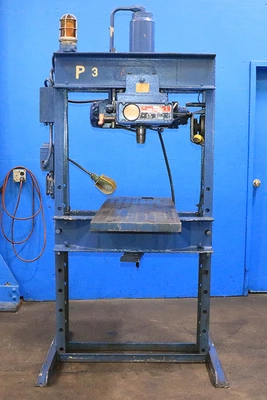

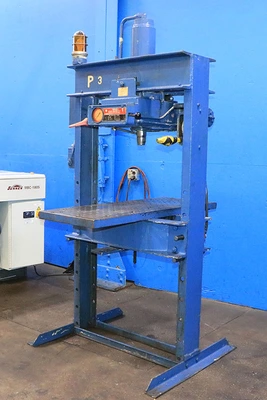

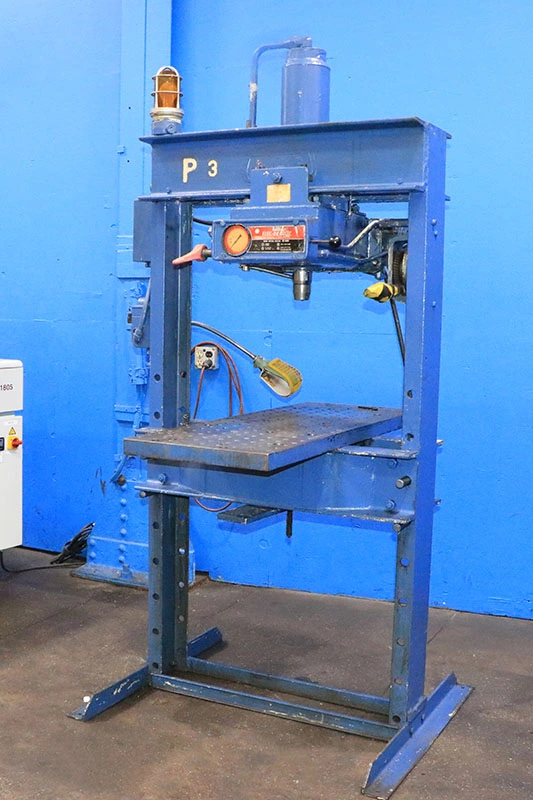

USED Dake 5-075 Elecdraulic

75 TON DAKE H-FRAME ELEC-DRAULIC HYDRAULIC PRESS

MODEL 5-075

RATED CAPACITY ............................ 75 TONS

WIDTH BETWEEN UPRIGHTS .................... 44"

WIDTH BETWEEN TABLE CHANNELS .............. 8-1/4"

SPPED ...................(ADVANCE)......... 28 IPM

       ...................(PRESS).......... 5 IPM

MINIMUM RAM TO TABLE ...................... 6"

MAXIMUM RAM TO TABLE ...................... 36"

RAM TRAVEL ................................ 10"

HORIZONTAL WORKHEAD TRAVEL ................ 24"

EQUIPPED WITH:

- ELECTRIC OPERATION FOR SMOOTH CONSISTENT PRESSING ACTION

- SINGLE ACTING CYLINDER

- RAPID RAM APPROACH, QUICKLY MOVES RAM TO TO WORK TO SAVE ON PRODUCTION TIME

- VARIABLE RAM SPEED

- MOVEABLE WORKHEAD FOR OFF-CENTER WORK

- RAPID RAM RETURN

- SAFETY VALVE, PROTECTS AGAINST OVERLOADS

- STROKE INDICATOR, ENSURES ACCURATE RAM CONTROL

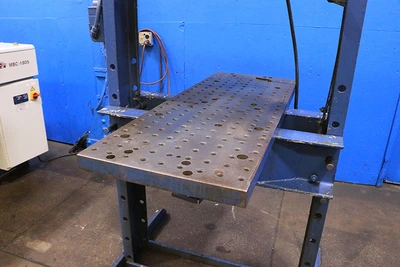

- ADJUSTABLE TABLE WITH SELF LOCKING TABLE HOIST

- 2 HP, 1800 RPM MOTOR, 208/230/460 VOLT 3 PHASE

OVERALL DIMENSIONS: 55-1/2" X 36" X 86" H, WT. 1,650#

VIDEO LINK BELOW:

YT shorts link : https://youtube.com/shorts/b4KL72Ay7hs?si=DUl77wKXz27xXzkY

FOR MORE INFORMATION: Call Rick at 973-497-7560
