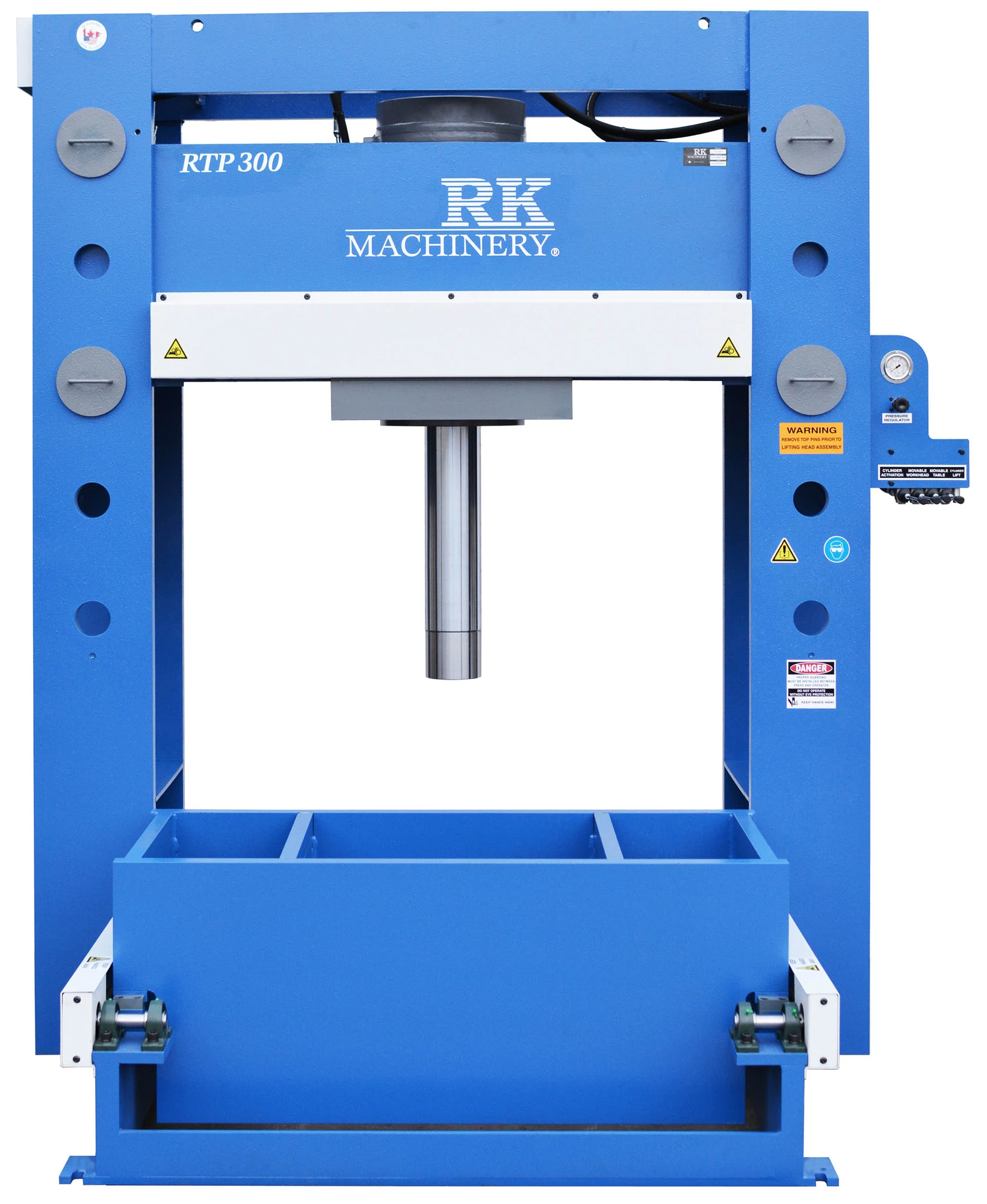

USED Pressmaster RTP-300

300 Ton 20" Stroke Pressmaster RTP-300 H-FRAME HYDRAULIC PRESS

300 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED STRAIGHTENING PRESS

RATED CAPACITY ........................ 300 TONS

WIDTH BETWEEN UPRIGHTS ................ 60"

DEPTH BETWEEN POSTS ................... 24-1/4"

MAXIMUM RAM TO TABLE .................. 31.6"

STROKE ................................ 20"

TABLE TRAVEL .......................... 33"

FLOOR TO TABLE TOP .................... 26-3/4"

CYLINDER BORE SIZE .................... 14"

PRESSING SPEED ........................ 4 INCH/MIN

ADVANCE SPEED ......................... 18 INCH/MIN

RETURN SPEED .......................... 22 INCH/MIN

WEIGHT ................................ 16,000#

DIMENSIONS

 LENGTH ............................... 84"

 WIDTH ................................ 98"

 HEIGHT ............................... 114"

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)

STANDARD FEATURES:

- POWERED MOVABLE TABLE FOR EASE OF LOADING & POSITIONING WORKPIECE UNDER CYLINDER

- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $2,200

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- PRESS PLATE ................................ $5,700

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
