USED Pressmaster HFP-200/20 MWH

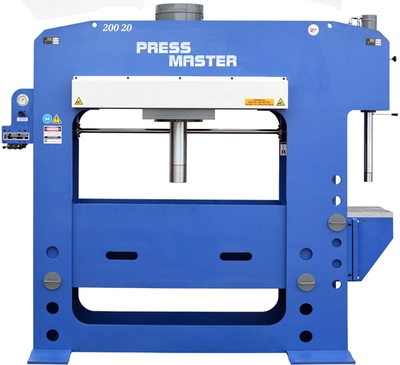

200 Ton 20" Stroke Pressmaster HFP-200/20 MWH H-FRAME HYDRAULIC PRESS

200 TON PRESSMASTER H-FRAME PRESS

MODEL HFP-200/20MWH

SPECIFICATIONS:

RATED CAPACITY, TONNAGE....................... 200

STROKE........................................ 20"

BORE.......................................... 12"

RAM SPEED (Inches/Minute) ADVANCE ............ 24

RAM SPEED (Inches/Minute) PRESSING ........... 5

RAM SPEED (Inches/Minute) RETURN ............. 29

DISTANCE BETWEEN POSTS (RIGHT TO LEFT) ....... 60"

DISTANCE BETWEEN POSTS (FRONT TO BACK) ....... 18"

MAXIMUM DISTANCE FROM BED TO RAM ............. 32"

BROACHING C-FRAME SPECS:

CAPACITY ..................................... 20 TONS

STROKE ....................................... 20"

BORE ......................................... 4"

DAYLITE ...................................... 39.25" MAX.

THROAT ....................................... 8"

TABLE ........................................ 20" X 13"

SPEEDS (Approach) ............................ 22.5-219 IPM

SPEEDS (Pressing) ............................ 22.5-52 IPM

SPEEDS (Return) .............................. 360 IPM

OVERALL HEIGHT ................................... 108"

OVERALL WIDTH .................................... 113"

OVERALL DEPTH .................................... 58"

WEIGHT ........................................... 7,500#

MADE IN CANADA - NOT A CHEAP IMPORT

EQUIPPED WITH:

- MOVABLE WORKHEAD FOR OFF-CENTER WORK. ALLOWS THE OPERATOR TO POSITION

THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER.

- 2 SEPARATE PRESSURE REGULATORS FOR C-FRAME AND H-FRAME

- BOTH CYLINDER ACTIVATIONS ARE FINGER TIP CONTROLLED, THE MORE THE HAND

LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE

OPERATOR TO USE THE PROPER SPEED FOR THE TASK.

- 2 SEPERATE PRESSURE GAUGES.

- HYDRAULIC POWER LIFT TABLE - FOR EASY VERTICAL MOVEMENT OF TABLE.

- HEAVY DUTY STEEL STRUCTURE - ALL COMPONENTS ARE QUALITY U.S. OR CANADIAN PARTS

- TIE RODS WITH SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT

- OPEN SIDES - FACILITATES WORK ON LONGER PIECES

- FLAT RAM NOSE - ALLOWS THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- ELECTRIC/HYDRAULIC OPERATION - PROVIDING SMOOTH AND CONSISTENT PRESSING ACTION

- BALDOR 10 HP, 3 PHASE, 208/230/460 VOLT LOW SPEED MOTOR

- LOW SPEED PUMP - PROVIDES QUIET AND DEPENDABLE OPERATION

- 20 GALLON OIL RESERVOIR.

- LOW PRESSURE HYDRAULIC SYSTEM - MAINTAINS LOWER OIL TEMPERATURE, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND READILY AVAIABLE THROUGH OUT NORTH AMERICA.

- FULL ONE YEAR WARRANTY.

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,700

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500

- PRESS PLATE ................................ $4,600

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
