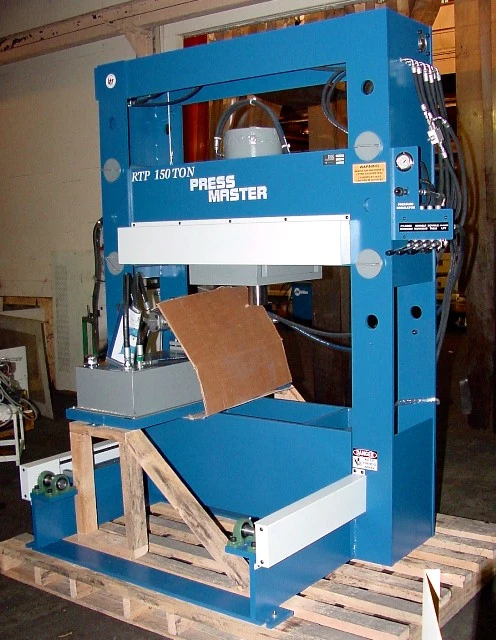

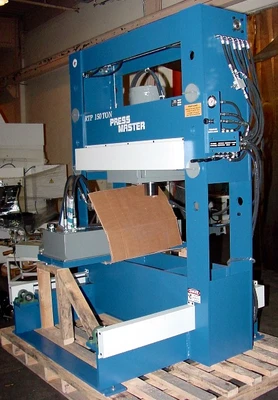

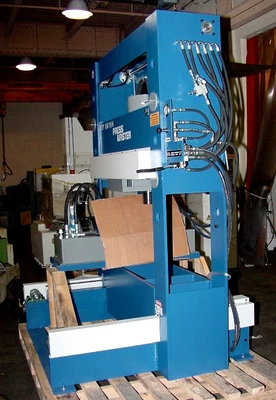

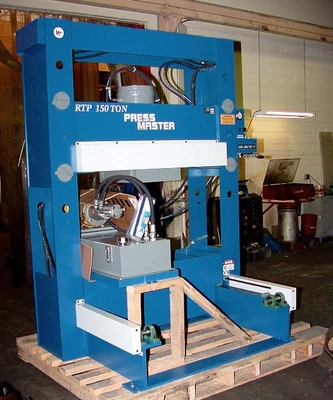

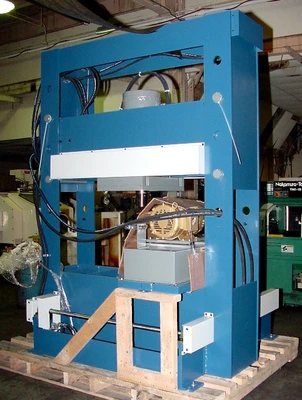

NEW Pressmaster RTP-150 ROLL-IN BED

150 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED STRAIGHTENING PRESS

MODEL RTP-150           NEW - IN STOCK FOR IMMEDIATE DELIVERY

RATED CAPACITY ........................... 150 TONS

WIDTH BETWEEN UPRIGHTS ................... 48"

DEPTH BETWEEN POSTS ...................... 16-3/4"

MAXIMUM RAM TO TABLE ..................... 26-3/4"

STROKE ................................... 16"

TABLE TRAVEL ............................. 23-1/4"

LEFT TO RIGHT CYLINDER TRAVEL ............ 19-1/4"

FLOOR TO TABLE TOP ....................... 25-3/4"

CYLINDER BORE SIZE ....................... 11"

PRESSING SPEED ........................... 6 INCH/MIN

ADVANCE SPEED ............................ 29 INCH/MIN

RETURN SPEED ............................. 33 INCH/MIN

WEIGHT ................................... 6,500 Lbs.

SHIPPING DIMENSIONS

 LENGTH .................................. 70"

 WIDTH ................................... 88"

 HEIGHT .................................. 100"

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)

STANDARD FEATURES:

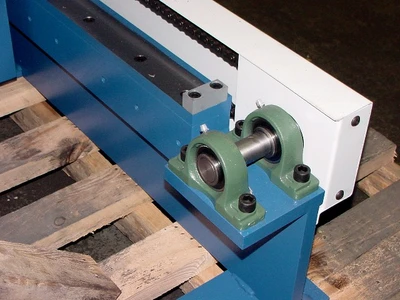

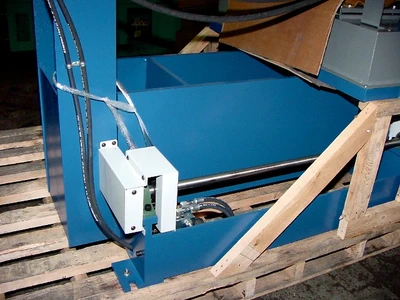

- POWERED MOVABLE TABLE FOR EASE OF LOADING & POSITIONING WORKPIECE UNDER CYLINDER

- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

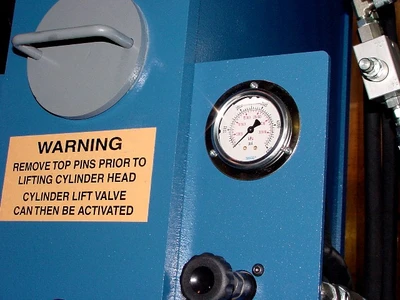

- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY

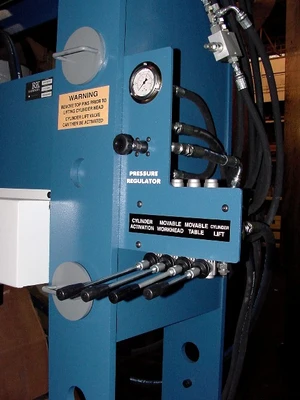

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

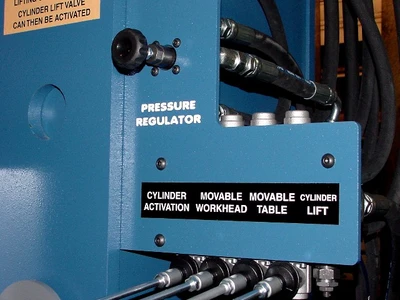

- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

- FULL ONE YEAR WARRANTY ON ALL PARTS

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,200

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- PRESS PLATE ................................ $3,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
