USED Pressmaster HFBP-100/20 MWH

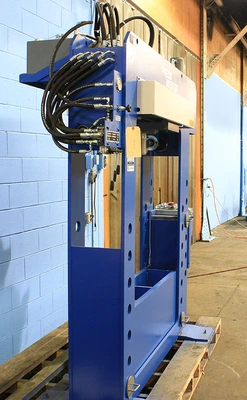

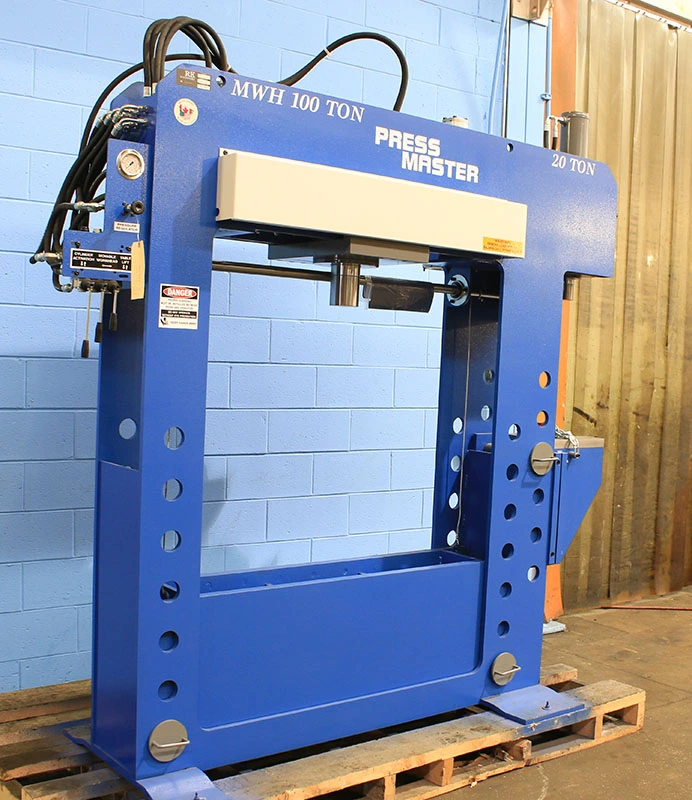

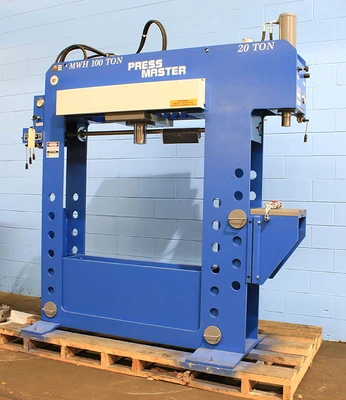

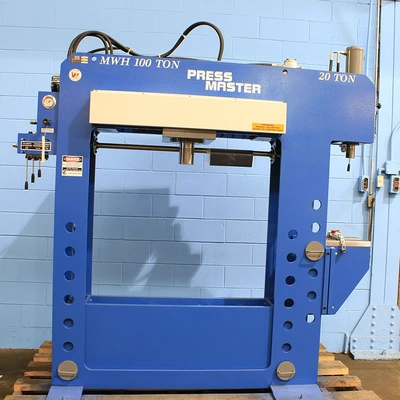

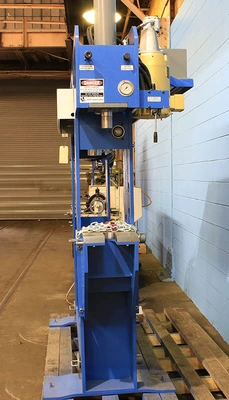

100 Ton 16" Stroke Pressmaster HFBP-100/20 MWH H-FRAME HYDRAULIC PRESS, 20 ton Broach and Movable Workhead

COMBINATION 100 TON H-FRAME PRESS

& 20 TON BROACH PRESS

EXTRA WIDE w/MOVABLE WORKHEAD

MODEL HFBP-100/20 MWH

NEW-IN STOCK FOR IMMEDIATE DELIVERY

H FRAME SPECS

CAPACITY............................. 100 TONS

BORE................................. 9"

STROKE............................... 16"

RAM SPEED

 PRESS............................... 19 IPM

 RETURN.............................. 24 IPM

DIST. BETWEEN POSTS (R TO L)......... 48"

DIST. BETWEEN POSTS (F TO B)......... 12.5"

MAX DIST. FROM BED TO RAM ........... 38"

BROACH SPECS

CAPACITY............................. 20 TONS

BORE................................. 4"

STROKE............................... 20"

RAM SPEED

 PRESS............................... 97 IPM

 RETURN.............................. 159 IPM

POWER................................ 10 HP 3 PHASE

DIMENSIONS

 LENGTH.............................. 48"

 WIDTH............................... 94"

 HEIGHT.............................. 104"

WEIGHT............................... 4,100#

NOT A CHEAP IMPORT -

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS

STANDARD FEATURES

ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION

OPEN SIDES TO FACILITATE WORK ON LONG PIECES

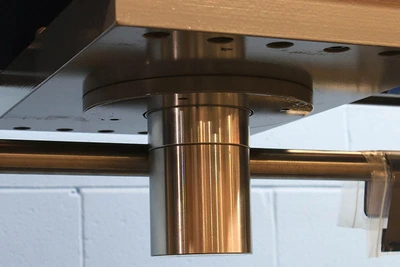

FLAT RIM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS

 TO A SPECIFIC JOB

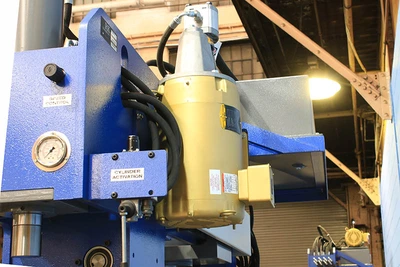

QUALITY BALDOR MOTOR, LOW SPEED

LOW SPEED PUMP-QUIET, DEPENDABLE OPERATION

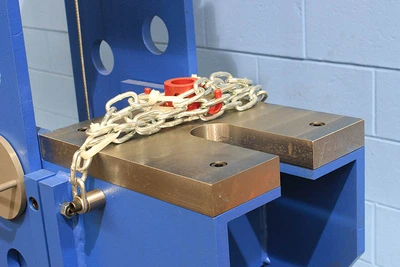

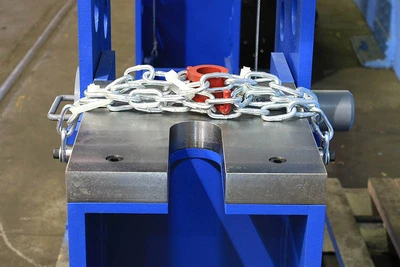

SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION

 THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

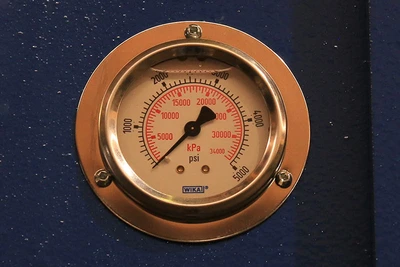

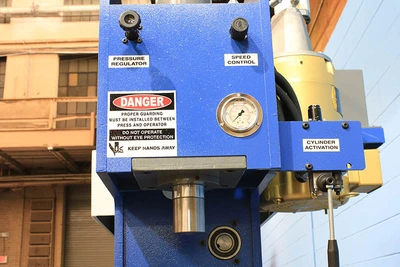

PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS

 ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR

 TO CONTROL THE PROPER SPEED FOR THE TASK

HIGH CAPACITY 15 GAL. HYDRAULIC OIL RESERVOIR

LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES,

 RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION

ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND

 AVAILABLE THROUGHOUT NORTH AMERICA.

STANDARD FEATURES 20 TON

PRESSURE REGULATOR- LIMITS RAM PRESSURE

SPEED CONTROL- LIMITS THE MAXIMUM SPEED OF RAM TRAVEL, ALLOWING OPERATOR TO

SELECT THE PROPER SPEED FOR THE PROPER TASK.

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,000

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500

- PRESS PLATE ................................ $2,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

- 60" BETWEEN THE POSTS ...................... $6,500

CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE

MACHINE IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY

FOR MORE INFORMATION: Call Rick at 973-497-7560
