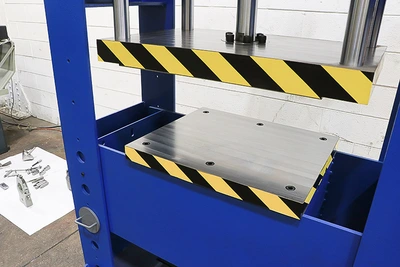

USED Pressmaster 4PP-25 H style

25 Ton 12" Stroke Pressmaster 4PP-25 H style HYDRAULIC PRESS

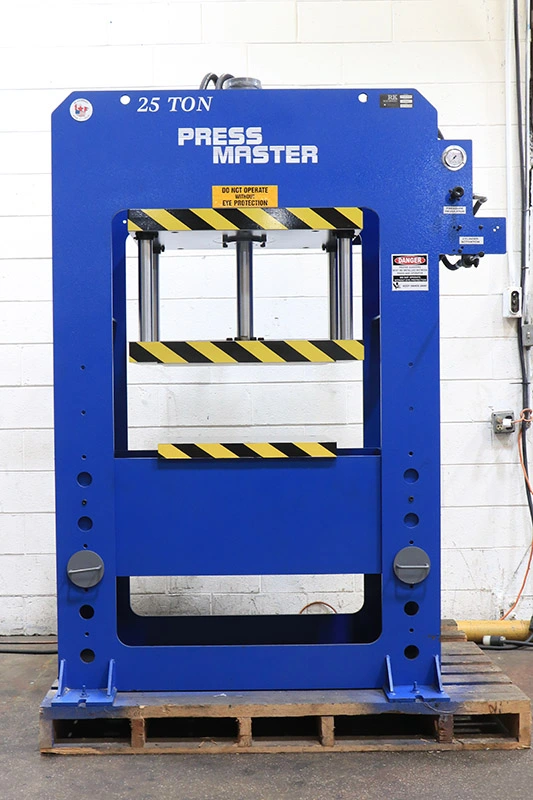

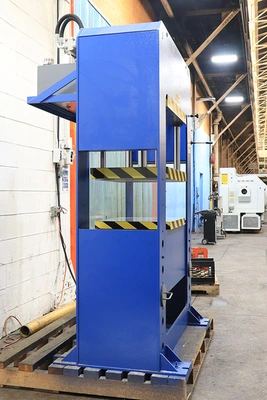

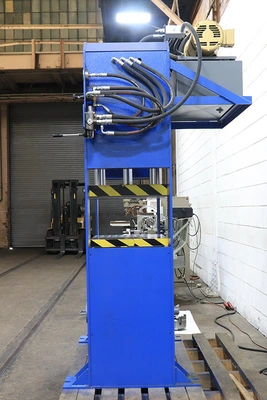

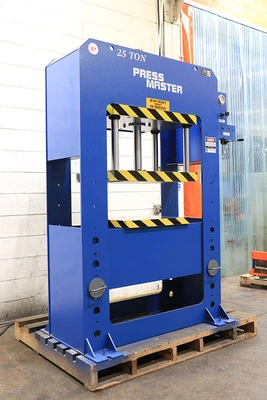

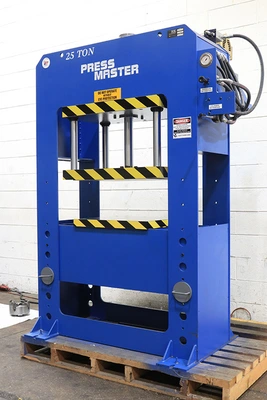

25 TON PRESSMASTER 4-POST HYDRAULIC PRESS

TONS OF FORCE ......(MAX).................... 25 TONS

TABLE ..............(FB X LR)................ 20" X 24"

UPPER PLATEN .......(FB X LR)................ 20" X 24"

OVERALL DISTANCE BETWEEN POSTS (L-R)......... 36"

OVERALL DISTANCE BETWEEN POSTS (F-B)......... 18-3/4"

DAYLIGHT ADJUSTABLE FROM APPROX.............. 8"-32"

STROKE ...................................... 1"-12"

APPROACH SPEED .............................. 52 IPM

PRESS SPEED ................................. 24 IPM

RETURN SPEED ................................ 75 IPM

MOTOR HP .................................... 5 HP

VOLTAGE: 208-230 / 480 VOLT

STANDARD FEATURES:

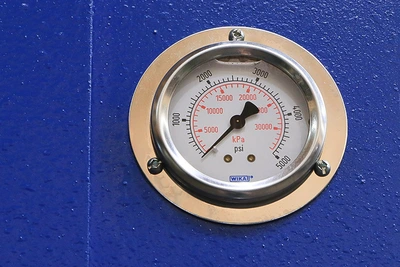

- PRESSURE GAUGE

- PRESSURE REGULATOR

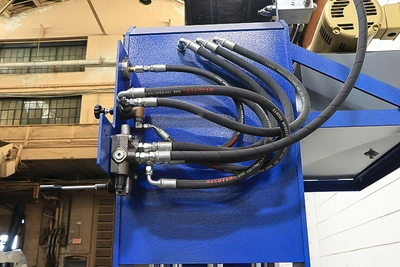

- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HANDLEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE OPERATOR TO USE THE PROPER SPEED FOR THE TASK.

- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS

- QUALITY BALDOR MOTOR, LOW SPEED

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA

APPROX. WEIGHT ...................................... 4,000#

APPROX. SHIPPING DIMENSIONS ......................... " x " x "

FOR MORE INFORMATION: Call Rick at 973-497-7560
