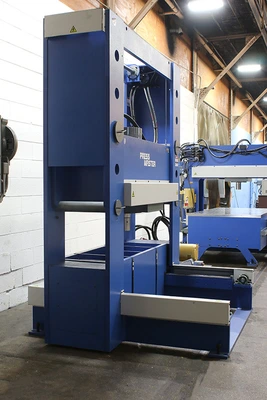

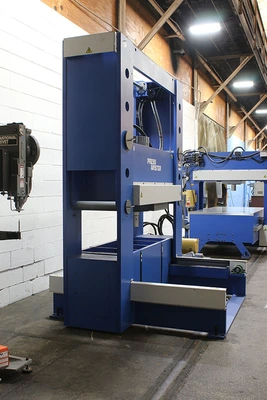

NEW Pressmaster RTP-250T

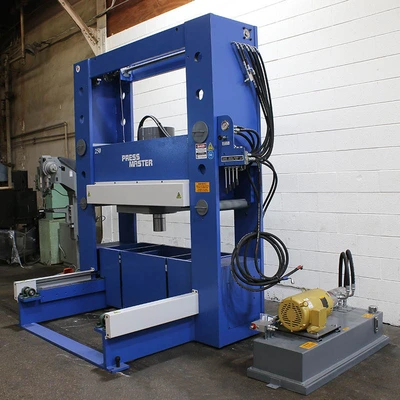

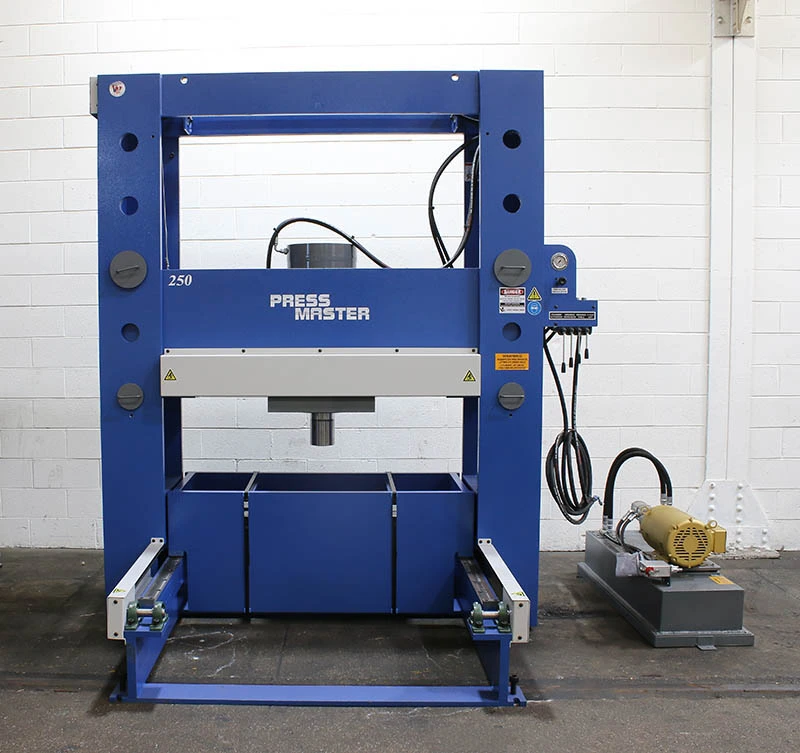

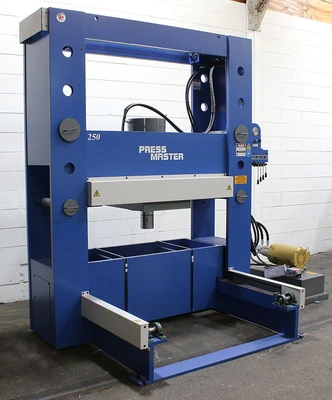

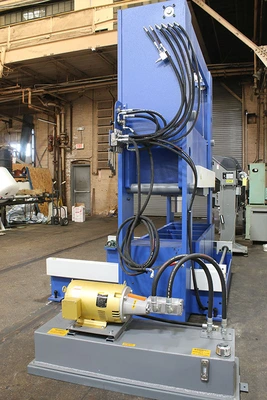

250 Ton 20" Stroke Pressmaster RTP-250T H-FRAME HYDRAULIC PRESS

250 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED STRAIGHTENING PRESS

RATED CAPACITY .............................. 250 TONS

WIDTH BETWEEN UPRIGHTS ...................... 60"

DEPTH BETWEEN POSTS ........ ................ 23-1/4"

MAXIMUM RAM TO TABLE ........................ 32"

STROKE ...................................... 20"

TABLE TRAVEL ................................ 28-1/4"

FLOOR TO TABLE TOP .......................... 26-3/4"

CYLINDER BORE SIZE .......................... 12"

PRESSING SPEED .............................. 4 INCH/MIN

ADVANCE SPEED ............................... 22 INCH/MIN

RETURN SPEED ................................ 27 INCH/MIN

WEIGHT ...................................... 10,000#

DIMENSIONS

 LENGTH ..................................... 80"

 WIDTH ...................................... 100"

 HEIGHT ..................................... 111"

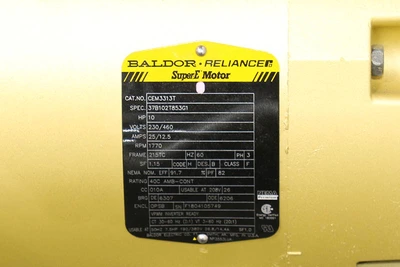

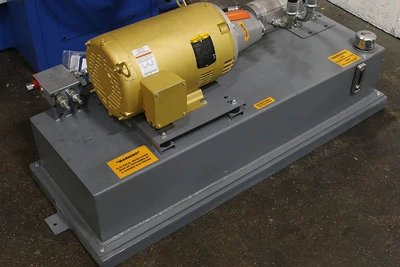

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)

STANDARD FEATURES:

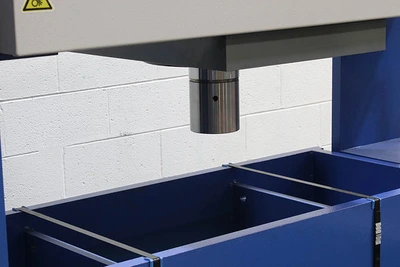

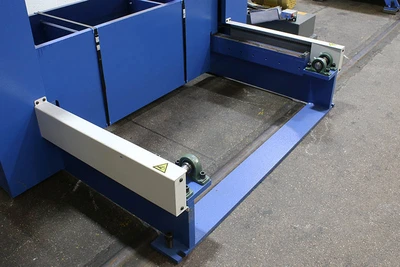

POWERED MOVABLE TABLE FOR EASE OF LOADING & POSITIONING WORKPIECE UNDER CYLINDER

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER

 FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY

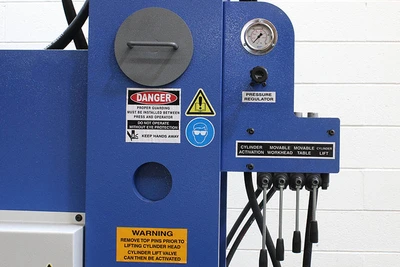

CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE

 THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR

 THE TASK

PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,700

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- PRESS PLATE ................................ $4,600

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
