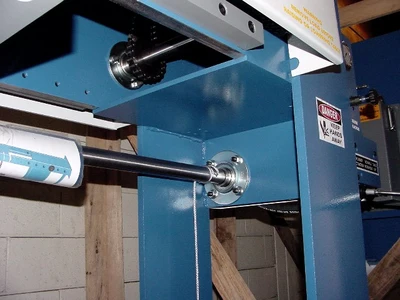

USED Pressmaster HFP 150 MWH

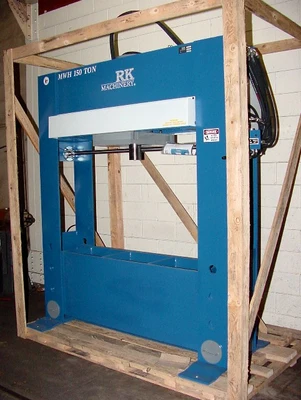

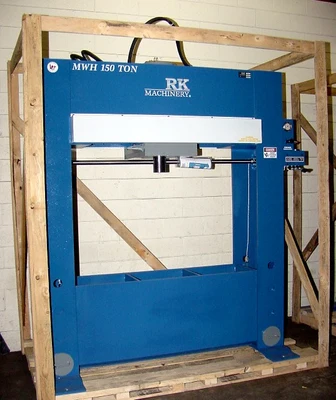

150 Ton 16" Stroke Pressmaster HFP 150 MWH H-FRAME HYDRAULIC PRESS, Moveable Work Head

 150 TON PRESSMASTER H-FRAME HYD. PRESS

MODEL HFP-150 MWH

 EXTRA WIDE w/MOVABLE WORKHEAD

RATED CAPACITY, TONNAGE........................ 150

STROKE......................................... 16"

BORE........................................... 11"

RAM SPEED PRESS ........................IPM.... 6

          ADVANCE ......................IPM.... 29

          RETURN .......................IPM.... 33

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)......... 60"

DISTANCE BETWEEN POSTS (FRONT TO BACK)......... 15"

RAM TRAVEL LEFT TO RIGHT ...................... 31-1/4"

MAXIMUM DISTANCE FROM BED TO RAM .............. 34-1/2"

WEIGHT ....................... 6,200#

SHIPPING DIMENSIONS .......... 58"L X 96"W X 108"H

STANDARD FEATURES:

ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION

OPEN SIDES TO FACILITATE WORK ON LONG PIECES

FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB

QUALITY BALDOR MOTOR, LOW SPEED

LOW SPEED PUMP-QUIET, DEPENDABLE OPERATION

SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

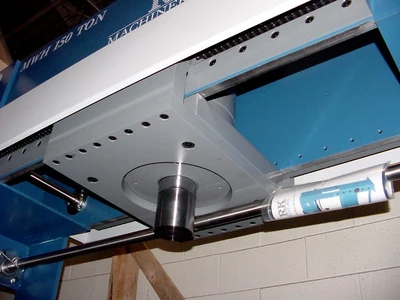

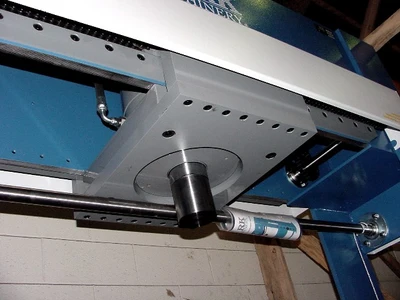

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER

 FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

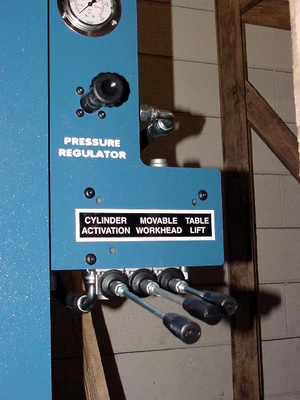

PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

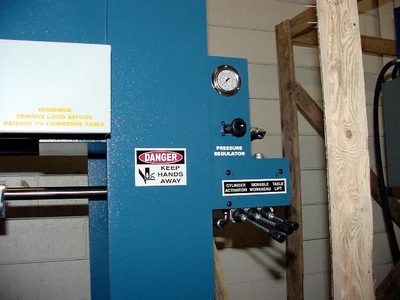

CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE

 MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER

 SPEED FOR THE TASK

HIGH CAPACITY 20 GAL. HYDRAULIC OIL RESERVOIR

LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER

 EFFICIENCY AND SAFER OPERATION

ALL PARTS ARE STANDARD AND READILY AVAILABLE THROUGHOUT NORTH AMERICA

FULL ONE YEAR WARRANTY.

NOT A CHEAP IMPORT.

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,200

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500

- PRESS PLATE ................................ $3,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

 SEE THE VIDEO ON THIS FANTASTIC NEW PRODUCT AT

 http://www.youtube.com/watch?v=nDh2giylCs8

FOR MORE INFORMATION: Call Rick at 973-497-7560
