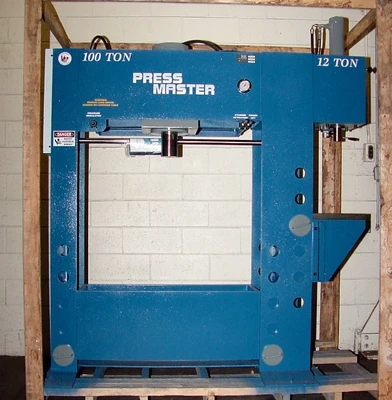

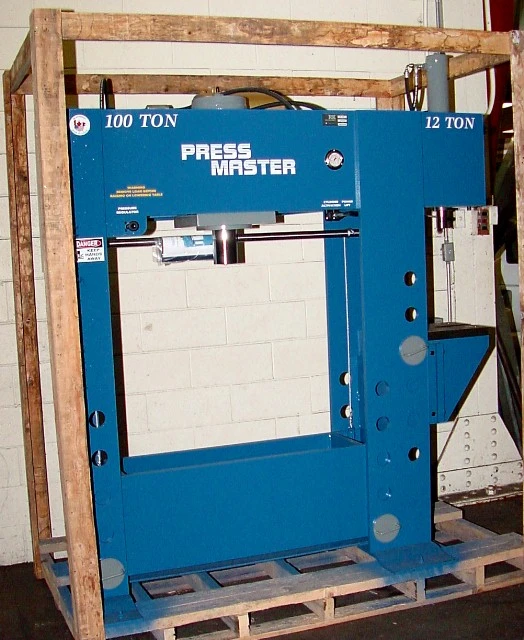

NEW Pressmaster HFBP-100/12

100 Ton 12" Stroke Pressmaster HFBP-100/12 H-FRAME HYDRAULIC PRESS, Side Mounted 12 Ton "C" Frame or Broaching Press

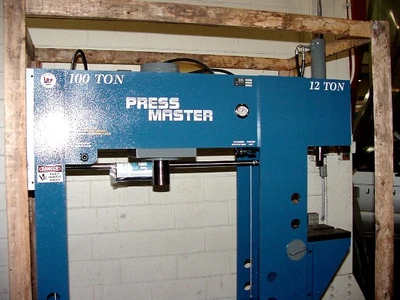

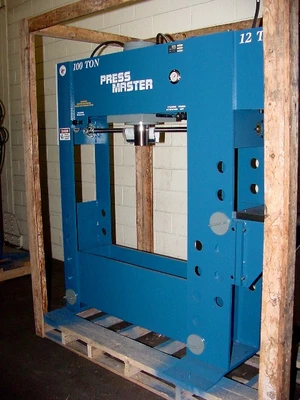

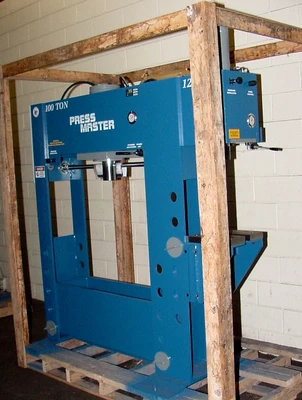

COMBINATION 100 TON H-FRAME PRESS

& 12 TON C-FRAME BROACHING PRESS

MODEL HFBP-100/12

NEW - IN STOCK FOR IMMEDIATE DELIVERY

H-FRAME SPECS:

RATED CAPACITY ............................... 100 TONS

STROKE ....................................... 12"

BORE ......................................... 8"

RAM SPEED: ADVANCE ........................... 20 IPM

           RETURN ............................ 26 IPM

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 42"

DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 13"

MAXIMUM DISTANCE FROM BED TO RAM ............. 33"

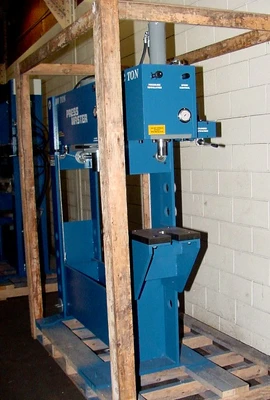

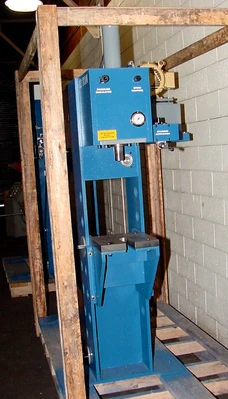

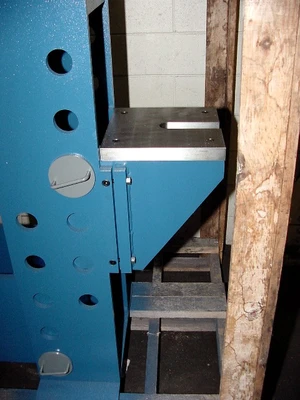

BROACHING C-FRAME SPECS:

CAPACITY ..................................... 12 TONS

STROKE ....................................... 20"

BORE ......................................... 3"

SPEEDS (Pressing) ............................ 136 IPM

SPEEDS (Return) .............................. 244 IPM

OVERALL HEIGHT ............................... 94"

OVERALL WIDTH ................................ 86"

OVERALL DEPTH ................................ 50"

WEIGHT ....................................... 2,800#

NOT A CHEAP IMPORT -

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS

STANDARD FEATURES:

- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION

- OPEN SIDES TO FACILITATE WORK ON LONG PIECES

- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB

- LOW SPEED PUMP

- SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

- DOUBLE-ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION

- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

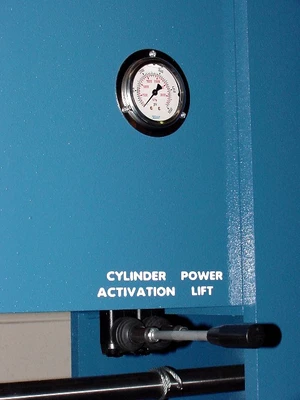

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

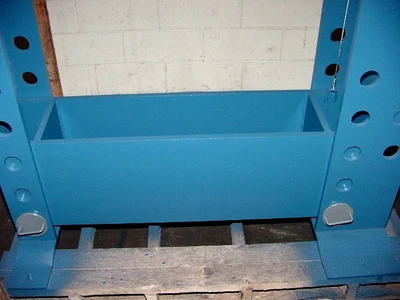

- HIGH CAPACITY 10 GAL. HYDRAULIC OIL RESERVOIR

- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION

- BALDOR 5 HP, 230 VOLT / 1 PHASE MOTOR

- STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING

- FULL ONE YEAR PARTS WARRANTY.

STANDARD FEATURES 12 TON C-FRAME:

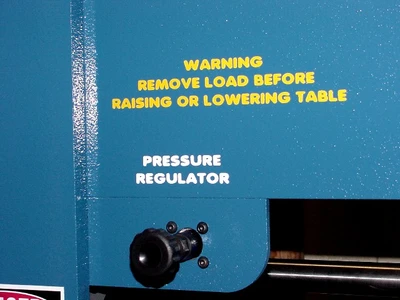

- PRESSURE REGULATOR

- SPEED CONTROL

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,000

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- PRESS PLATE ................................ $2,000

     CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE

MACHINES IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY

FOR MORE INFORMATION: Call Rick at 973-497-7560
