NEW Pressmaster HFP-100-MWH

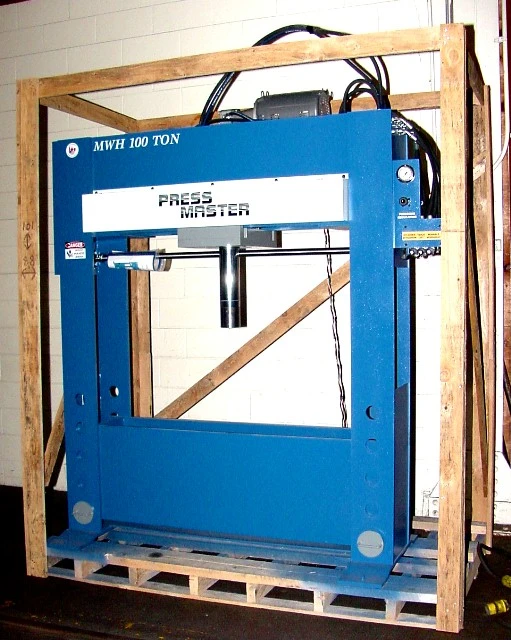

100 Ton 12" Stroke Pressmaster HFP-100-MWH H-FRAME HYDRAULIC PRESS, Movable Workhead

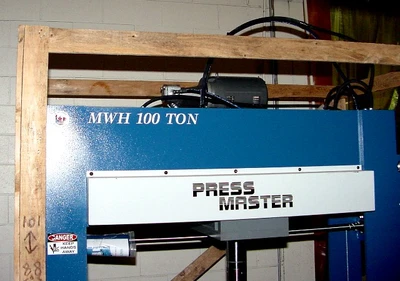

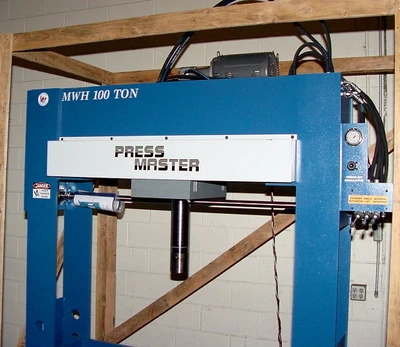

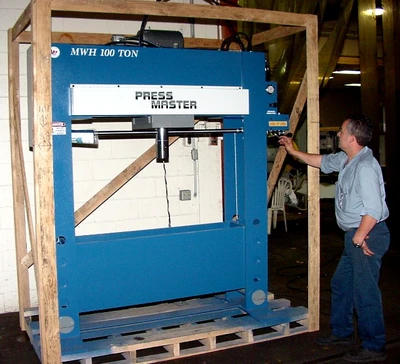

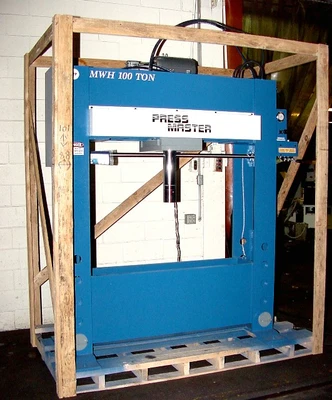

100 TON PRESSMASTER H-FRAME HYD. PRESS

MODEL HFP-100 MWH

NEW - IN STOCK FOR IMMEDIATE DELIVERY

RATED CAPACITY, TONNAGE........................ 100

STROKE......................................... 12"

BORE........................................... 8"

RAM SPEED PRESS ............................... 20 IPM

          RETURN .............................. 26 IPM

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)......... 48"

DISTANCE BETWEEN POSTS (FRONT TO BACK)......... 13"

MAXIMUM DISTANCE FROM BED TO RAM .............. 33"

WEIGHT ........................................ 3,400#

SHIPPING DIMENSIONS ........................... 50" X 88" X 103"

STANDARD FEATURES:

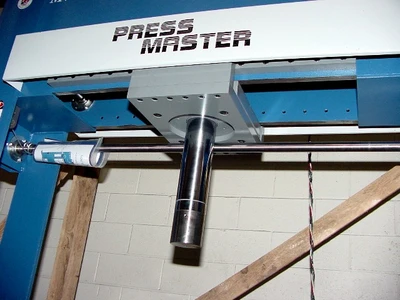

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK

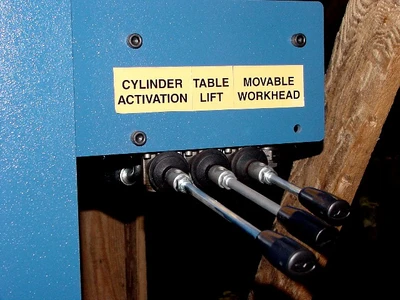

CYLINDER ACTIVATION IS FINGERTIP CONTROLLED THE MORE THE LEVER IS

  ENGAGED THE FASTER THE RAM MOVES ALLOWING THE OPERATOR TO CONTROL

  THE SPEED FOR THE JOB.

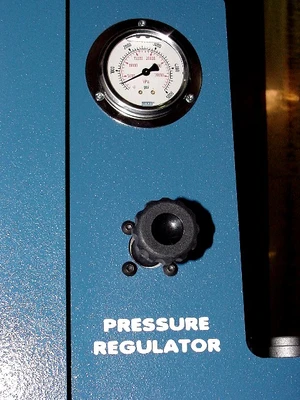

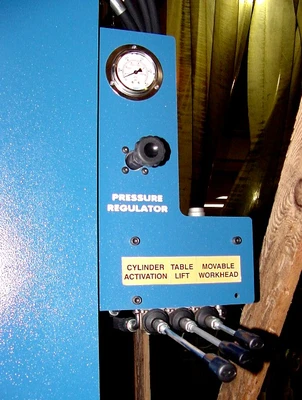

PRESSURE REGULATOR - LIMITS RAM PRESSURE

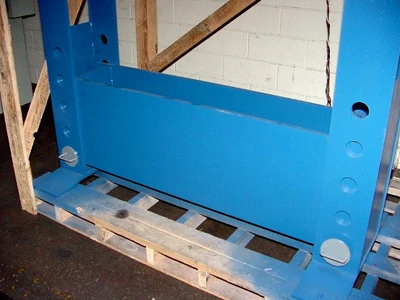

HYDRAULIC POWER LIFT TABLE

SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT

ELECTRIC/HYDRAULIC OPERATION

HEAVY DUTY STEEL STRUCTURE

OPEN SIDES TO FACILITATE WORK ON LONG PIECES

FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

LOW SPEED PUMP

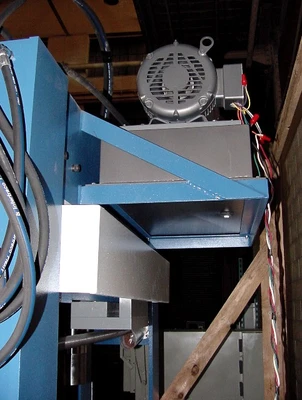

LOW SPEED BALDOR 10 HP, 3 PHASE MOTOR, STANDARD VOLTAGES AVAILABLE

HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR

LOW PRESSURE HYDRAULIC SYSTEM RESULTS IN LOWER OIL TEMPERATURES

  FOR HIGHER EFFICIENCY AND SAFER OPERATION

ALL PARTS ARE STANDARD AND READILY AVAILABLE THROUGHOUT NORTH AMERICA

FULL ONE YEAR WARRANTY.

NOT A CHEAP IMPORT.

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,000

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500

- PRESS PLATE ................................ $2,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

- 60" BETWEEN THE POSTS ...................... $6,500

SEE THE VIDEO ON THIS FANTASTIC NEW PRODUCT AT:

 http://www.youtube.com/watch?v=nDh2giylCs8

FOR MORE INFORMATION: Call Rick at 973-497-7560
