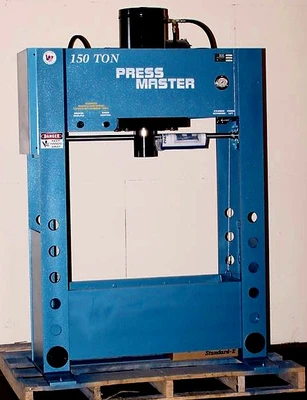

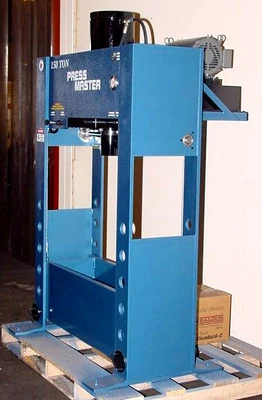

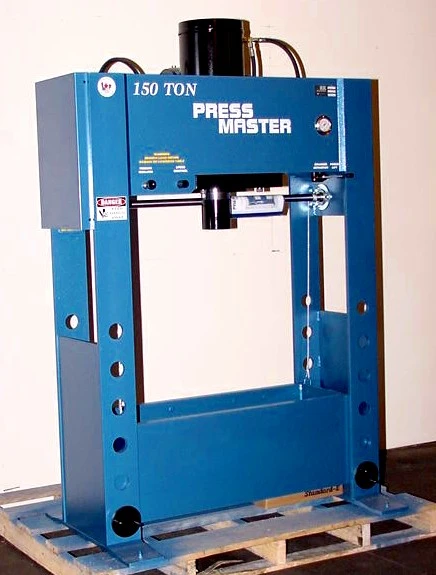

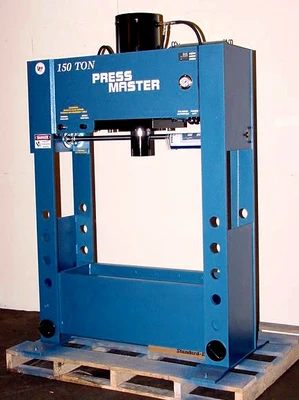

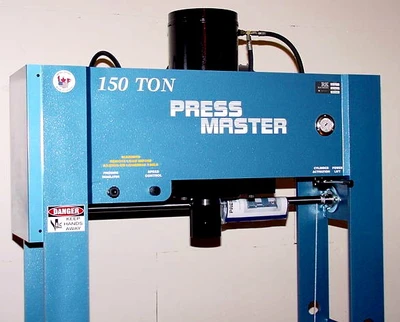

NEW Pressmaster HFP-150

150 TON PRESSMASTER HYDRAULIC H-FRAME PRESS

MODEL HFP-150           NEW

RATED CAPACITY, TONNAGE ....................... 150

STROKE ........................................ 16"

BORE .......................................... 10"

RAM SPEED PRESS ............................... 6 IPM

          ADVANCE ............................. 24 IPM

          RETURN .............................. 28 IPM

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)......... 48"

DISTANCE BETWEEN POSTS (FRONT TO BACK)......... 16.5"

MAXIMUM DISTANCE FROM BED TO RAM .............. 32"

SHIPPING DIMENSIONS

OVERALL HEIGHT ................................ 98"

OVERALL WIDTH ................................. 72"

OVERALL DEPTH ................................. 58"

WEIGHT ........................................ 3,600#

NOT A CHEAP IMPORT -

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS

EQUIPPED WITH:

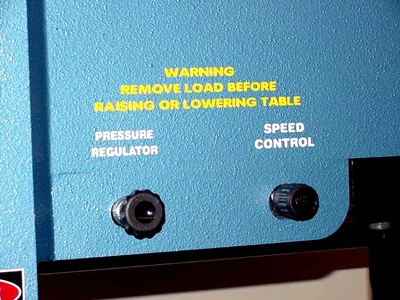

- PRESSURE REGULATOR TO LIMIT RAM PRESSURE

- DOUBLE ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION

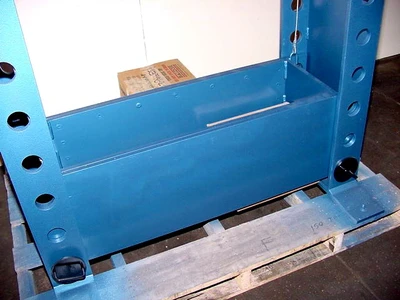

- HYDRAULIC POWER LIFT TABLE CONTROLLED WITH A HAND LEVER

- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION

- OPEN SIDES TO FACILITATE WORK ON LONG PIECES

- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB

- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL

TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER

OPERATION

- HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR

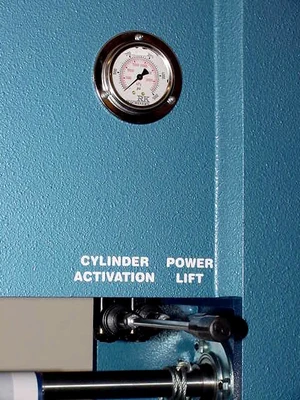

- SINGLE JOY-STICK STYLE LEVER CONTROLS OPERATION

- SINGLE STAGE PUMP

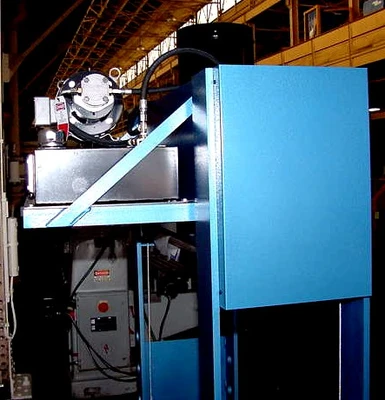

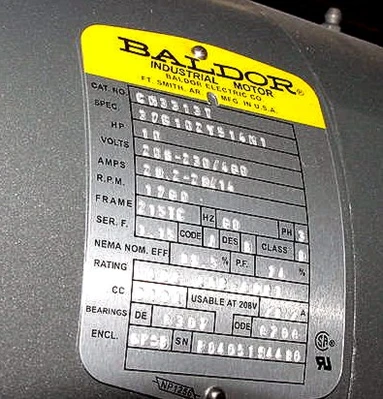

- LOW SPEED, 10 HP, 3 PHASE BALDOR MOTOR - STANDARD VOLTAGES AVAILABLE

- FULL ONE YEAR WARRANTY ON ALL PARTS.

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,200

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500

- PRESS PLATE ................................ $3,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
