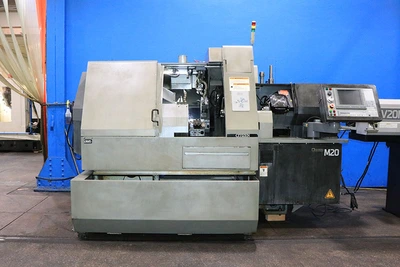

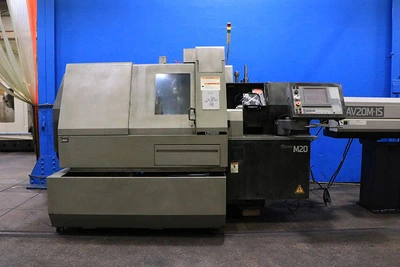

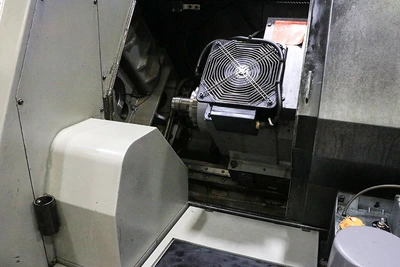

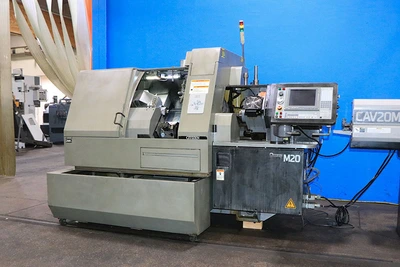

USED 2005 Citizen M-20V 10-AXIS

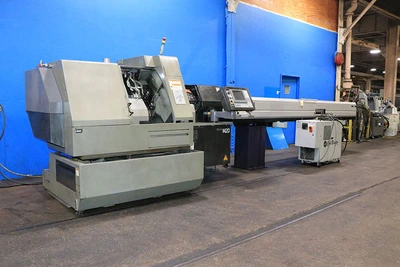

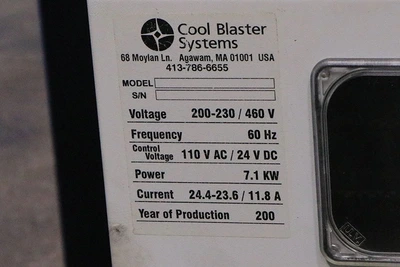

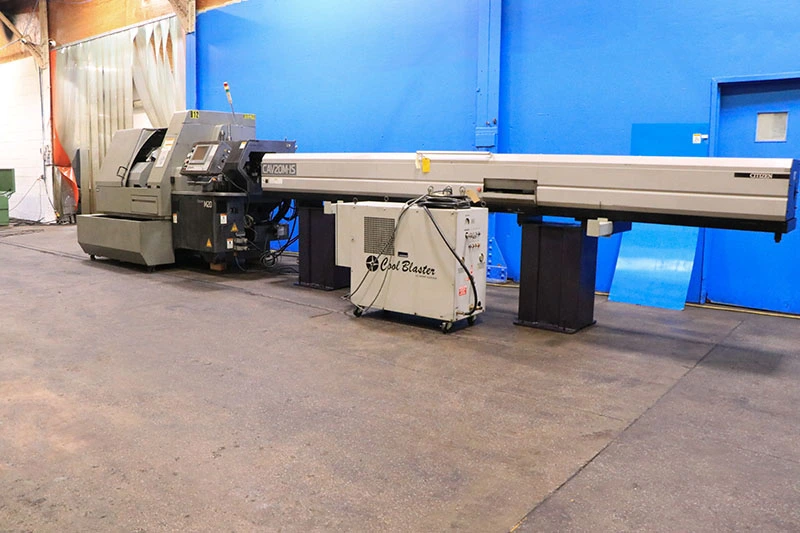

0.75" Dia. Citizen M-20V 10-AXIS CNC SWISS TYPE LATHE, CAV 20M-IS Barloader, High Pressure Coolant

CITIZEN M-20V (3M5) SWISS TYPE CNC LATHE

NEW: 2005

VIDEO LINK: https://youtu.be/d6FpU03S1Ro?si=yLFJMYz78lo6PIFy

SPECIFICATIONS:

CAPACITY 0.75"

POWER 7.5 hp

RPM 10,000 RPM

# AXIS 10

SWISS, CHUCKER OR CONVERTIBLE? Swiss

MAIN SPINDLE INDEXING Full C

SUB SPINDLE INDEXING Full C

LIVE BACK WORKING TOOLS? Yes

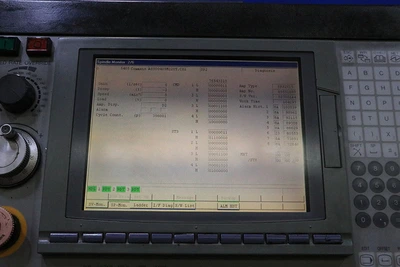

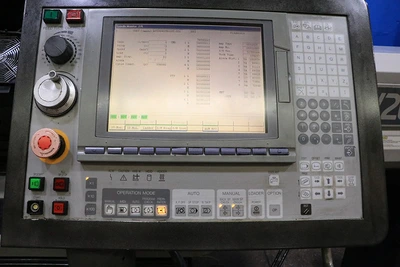

CONTROL CNC (Mitsubishi Meldas)

DIMENSIONS 110" x 50" x 72"

WEIGHT 6,100 lbs

To the best of our knowledge all details listed below are deemed correct.

It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications:

Axes:                                      X1,Y1,Y2,Z1,C1,X2,Z2,C2,X3,Z3 (misc Axes: TI, A1,A2,A3)

Machining Diameter:                        3/4" (20mm)

Machining length per chucking:             12.59" (320mm)

Main spindle speeds:                       200 - 10,000 rpm

Rotary tool speeds: (turret & gang plate): 200 - 5000 RPM

Backworking: Chucking Diameter:            3/4" (20mm)

             Backwork Length:              5.70" (145mm)

             Drilling/Tapping:             M8

             Back Spindle Speeds:          200 - 8000 RPM

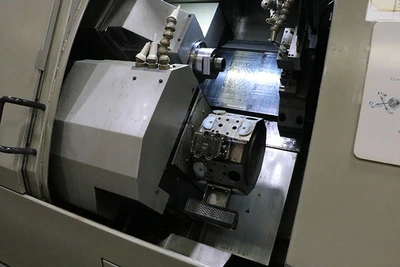

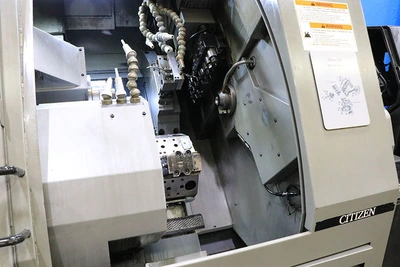

Tooling Set-up: Turret tooling:            12 (24 in half index mode)

                                           Turret Y-Axis

                Gang-Tool Tooling:         5 turning + 4 rotary

                Back Working Tool Post:    3 (+ rear facing tools on turret)

Tool Sizes: Gang Tooling / Turret:         16 x 16 x 130mm / 16 x 16 x 90mm

Motors: Main Spindle Drive:                5 / 7.5 hp

        Rotary Tool / Back Spindle Motors: 2 hp  / 3HP

Machine Dimensions: 110" x 50" x 72"

Machine Weight: 6,100 lbs

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

FOR MORE INFORMATION: Call Mike at 973-497-7540
