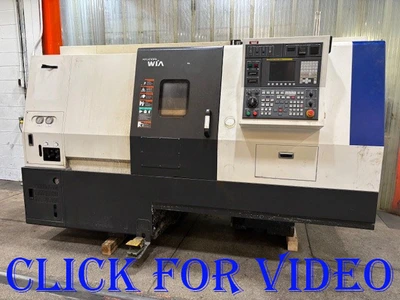

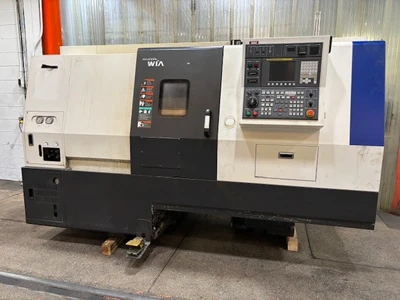

USED 2015 Hyundai-Wia L150LMA - Live Tool
Overview
Description
21.7" Swing 20.9" Centers Hyundai-Wia L150LMA - Live Tool CNC LATHE, Fanuc i Series Control, 8" chk., Tailstock, Chip C
Specifications
HYUNDAI-WIA L150LMA CNC TURNING CENTER
NEW: 2015
VIDEO LINK: https://youtu.be/BH7ipSSReCI?si=2o4ERPg4qI3sA88l
SPECIFICATIONS:
SWING OVER BED .................... 21.7"
SWING OVER CARRIAGE ............... 13.8"
MAX. TURNING DIA. ................. 10"
MAX. TURNING LENGTH ............... 20.9"
BAR CAPACITY ...................... 1.8"
SPINDLE SPEED MAX. ................ 6000 RPM
SPINDLE MOTOR (MAX./CONT.) ........ 15/10 HP
SPINDLE NOSE ...................... A2-5
C-AXIS INDEXING ................... 0.001 Degree
X-AXIS TRAVEL ..................... 8.7"
Z-AXIS TRAVEL ..................... 21.7"
NUMBER OF TURRET STATIONS ......... 12
TOOL SIZE OD ...................... 1" X 1"
TOOL SIZE ID ...................... 1.3"
LIVE TOOL MOTOR ................... 5/3 HP
MILLING TOOL SPEED ................ 4000 RPM
COLLET SIZE ....................... ER32
TOOL TYPE ......................... VDI 40
TAILSTOCK TAPER ................... MT#4
TAILSTOCK QUILL DIA. .............. 2.2"
TAILSTOCK TRAVEL .................. 28.3"
APPROX. MACHINE WEIGHT ............ 9,300 LBS
EQUIPPED WITH:

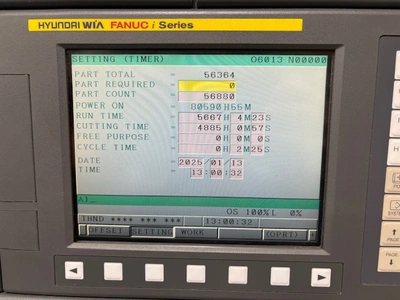

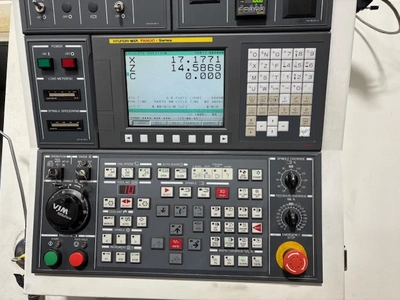

- FANUC "i" SERIES CONTROL

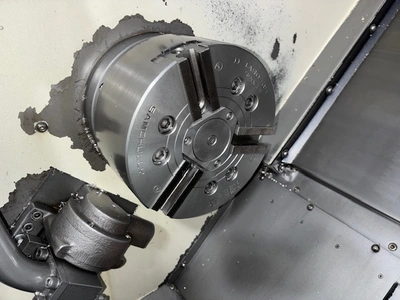

- 8" HS-08 SAMCHULLY 3-JAW HYDRAULIC CHUCK
- TOOLSETTER

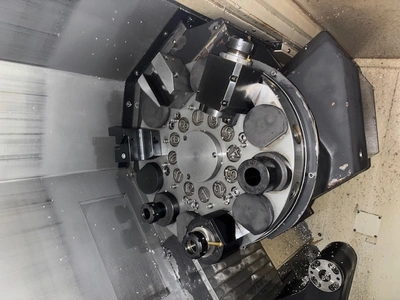

- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR

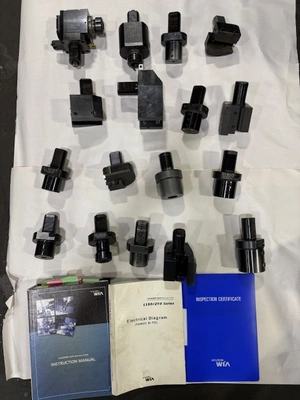

- (4) LIVE TOOLHOLDERS
- ALL AVAILABLE STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
FOR MORE INFORMATION: Call Mike at 973-497-7540
