USED 2007 Hardinge ELITE 51 MS Live Tool, Subpindle

Hardinge ELITE 51 MS Live Tool, Subpindle CNC LATHE, Fanuc 18iTB, LNS Quickload Servo S3

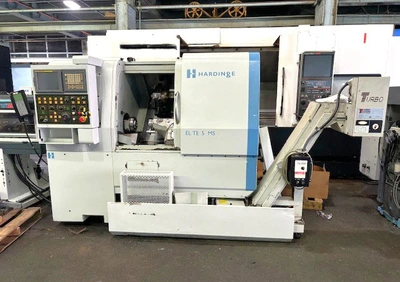

HARDINGE ELITE 51MS MULTI-AXIS CNC TURNING CENTER

NEW: 2007

SPECIFICATIONS:

SWING OVER BED                   18"

MAX CUTTING DIAMETER             11.1"

DISTANCE BETWEEN CENTERS       16"

X-AXIS TRAVEL                   5.74"

Z-AXIS TRAVEL                   15.98"

C-AXIS INDEXING                   0.001 DEGREES

BAR CAPACITY                   2"

SPINDLE NOSE                   A2-6

SPINDLE MOTOR                   25 hp

SPINDLE SPEED                   5,000 RPM

RAPID TRAVERSE RATE - X-AXIS       945 in/min.

RAPID TRAVERSE RATE - Z-AXIS       945 in/min.

SUB SPINDLE - SPINDLE SPEED       6,000 RPM

TURRET CAPACITY                   12 STATIONS

LIVE MILLING SPEED             5,000 RPM

LIVE MILLING MOTOR             5 hp

APPROX. WEIGHT                   7500 LBS

EQUIPPED WITH:

 - FANUC 18i-TB CNC CONTROL

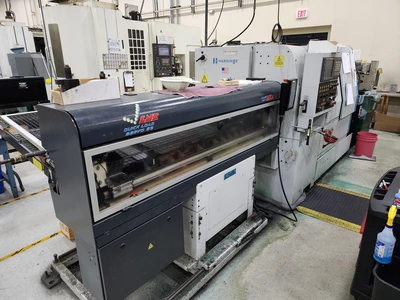

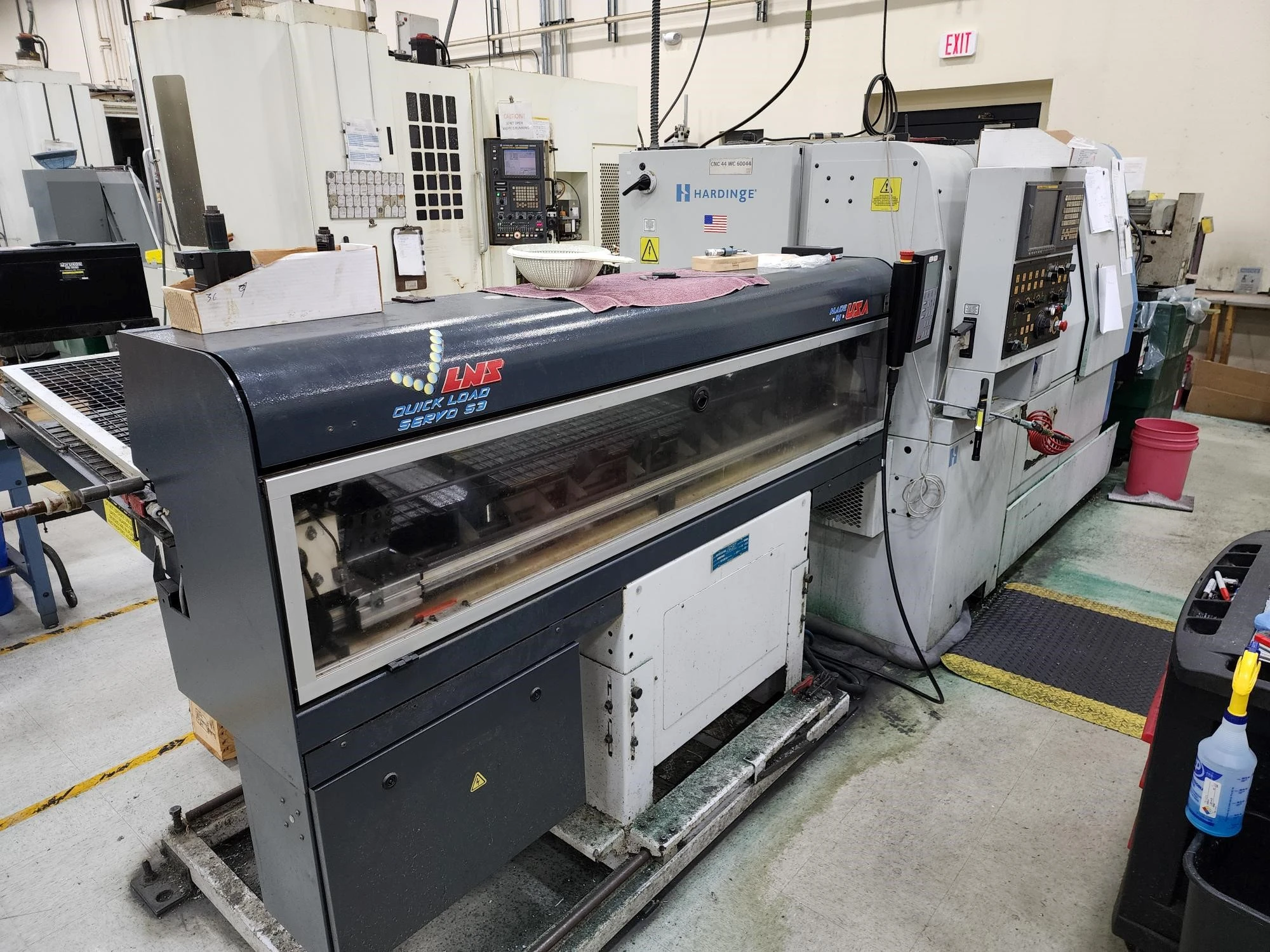

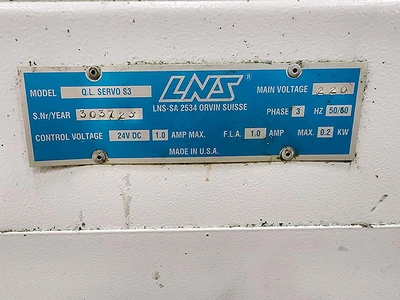

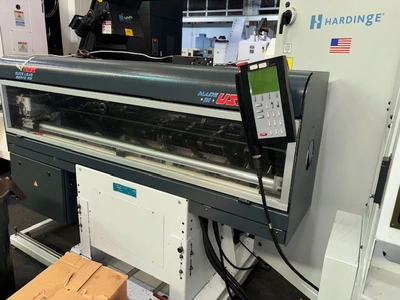

 - LNS QUICKLOAD SERVO S3 SHORT MAGAZINE BARLOADER

 - PARTS CATCHER

 - 20C COLLET READY MAIN SPINDLE

 - 16C COLLET READY SUBSPINDLE

 - FULL C-AXIS

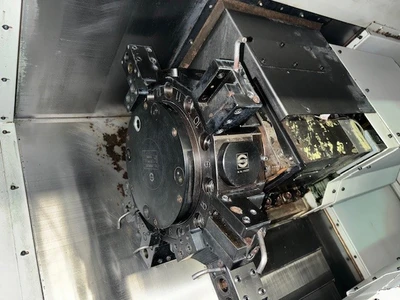

 - 12 POSITION TURRET

 - CHIP CONVEYOR

 - LARGE ASSORTMENT OF STATIC AND LIVE TOOLHOLDERS

FOR MORE INFORMATION: Call Mike at 973-497-7540
