USED Hyundai-Kia SKT-2100SY

Hyundai-Kia SKT-2100SY CNC LATHE

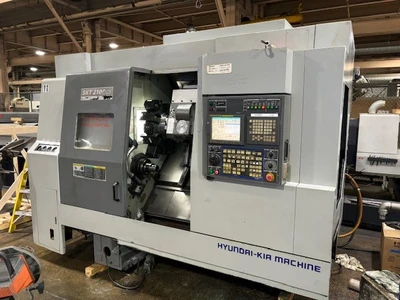

HYUNDAI-KIA SKT-2100SY MULTI-AXIS CNC TURNING CENTER

SPECIFICATIONS:

MAX. SWING ..................... 24.80"

SWING OVER CROSS SLIDE ......... 15.35"

MAX. MACHINING DIA. ............ 13.19"

MAX. TURNING LENGTH ............ 17.91"

BAR CAPACITY ................... 2.56"

SPINDLE SPEED, MAIN ............ 45-4500 RPM

SPINDLE NOSE, MAIN ............. A2-6

MAIN SPINDLE MOTOR ............. 20HP

C-AXIS INDEXING, MAIN .......... 0.001 Deg.

SUBSPINDLE SPEED ............... 60-6000 RPM

SUBSPINDLE NOSE ................ A2-5

SUBSPINDLE BAR CAPACITY ........ 1.38"

SUBSPINDLE MOTOR ............... 10HP

NUMBER OF TOOL POSITIONS ....... 12

TOOL SIZE, OD .................. 1"

TOOL SIZE, ID .................. 2"

ROTARY TOOL SPEED .............. 5,000 RPM

ROTATING TOOL TYPE ............. BMT 65

APPROX. MACHINE WEIGHT ......... 10,000 LBS.

EQUIPPED WITH:

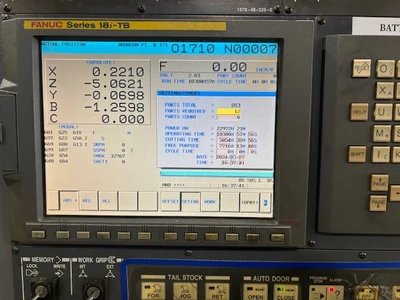

 - FANUC 18iTB CNC CONTROL

 - TOOLSETTER

 - COLLET CHUCK ON MAINSPINDLE

 - 12 POSITION TURRET

 - SUBSPINDLE

 - Y-AXIS

 - ALL AVAILABLE STATIC AND LIVE TOOLHOLDERS

FOR MORE INFORMATION: Call Mike at 973-497-7540
