USED 2005 Citizen K-16 Type VIIP

0.625" Dia. Citizen K-16 Type VIIP CNC SWISS TYPE LATHE, Fanuc, LNS Express 220 Barfeed

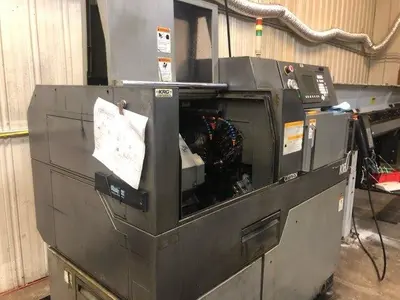

CITIZEN MODEL: K16 TYPE VIIP SWISS TYPE CNC LATHE

NEW: 2005

Specification for OEM Brochure (All details should be confirmed by buyer)

Control:                                 Fanuc FS31i

Max. Machining Diameter:                 16 mm (.63")

Max. Machining Length:                   200 mm (7.87")

Max. Front Drilling Diameter:            10 mm (.39")

Max. Front Tapping Size:                 M8 (w/ tap and die)

Main Spindle:                            Full C

Sub Spindle:                             1 Degree Increments

Spindle Through-hole Diameter:           20 mm (.79")

Main Spindle Speed:                      15,000 rpm

Main Spindle Indexing:                   1 Degree (C-Axis opt)

Max. Drill Dia. Rotary Cross Drill:      5 mm (.2")

Max. Tap Dia. Rotary Cross Drill         M4

Rotary Spindle Speed:                    6,000 rpm

Max. Chuck Diameter of back Spindle:     16 mm (0.63")

Max. Wkpiece Length for front Ejection:  40 mm (1.57"

Max. Drill Dia. for BW:                  6 mm (0.24")

Max. Tap Dia. for BW:                    M5

Back Spindle Speed:                      10,000 rpm

Back Spindle Indexing:                   1 Degree (C-Axis opt)

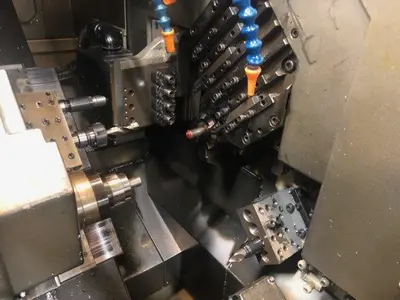

Number of Tools to be Mounted:           18

  Turning Tools on the Gang Tool Post:   6

  Rotary Tools on the Gang Tool Post:    4

  Tools for Front Spindle:               4

  Tools for Back Spindle:                4

Tool Size:

  Gang Tool Post (tool):                 13 mm (.51")

  Sleeve:                                19.05 mm (.75")

Motor: Main Spindle Drive:               2.2/3.7 KW

Input Power Capacity:                    8 KVA

Weight (approx):                         2,100 Kg (4,629.7 lbs)

Machinery Dimensions (aprox):            86" x 38" x 64"H

Equipped With:

 - Fanuc CNC Control

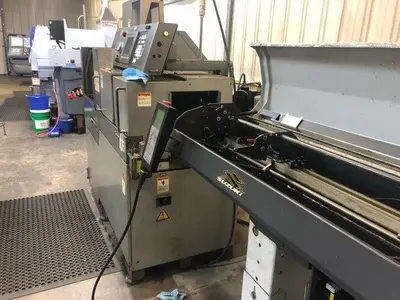

 - LNS EXPRESS 220 Magazine Barfeed

FOR MORE INFORMATION: Call Mike at 973-497-7540
