USED 1992 Hardinge Conquest GT Gang Tool

Hardinge Conquest GT Gang Tool CNC LATHE, Fanuc 0T, Live Tool, C-Axis

HARDINGE CONQUEST GT-SP SUPER PRECISION GANG TOOL CNC LATHE

NEW: 1992

SPECIFICATIONS:

Spindle capacity (5C)............................ 1-1/16"

Swing over way cover.............................. 11.76"

Swing over tool slide top plate................... 2.654"

X-axis travel.................................... 11.968"

Z-axis travel.................................... 11.062"

Spindle face to top plate........................ 11.259"

Spindle nose....................................... A-2-4

Max. spindle speed............................. 6,000 rpm

Max. square tool shank size......................... 0.5"

Max. round tool shank size......................... 0.75"

Spindle motor....................................... 5 Hp

Electrics................. 3/50/60/230V/10.5KW/ FLA 45/41

Dimensions (approx.)................. 120"L x 60"D x 65"H

Weight (approx.)............................... 6,500 lb.

SPECIFICATIONS:

Spindle capacity (5C)............................ 1-1/16"

Swing over way cover.............................. 11.76"

Swing over tool slide top plate................... 2.654"

X-axis travel.................................... 11.968"

Z-axis travel.................................... 11.062"

Spindle face to top plate........................ 11.259"

Spindle nose....................................... A-2-4

Max. spindle speed............................. 6,000 rpm

Max. square tool shank size......................... 0.5"

Max. round tool shank size......................... 0.75"

Spindle motor....................................... 5 Hp

Electrics................. 3/50/60/230V/10.5KW/ FLA 45/41

Dimensions (approx.)................. 120"L x 60"D x 65"H

Weight (approx.)............................... 6,500 lbs.

EQUIPPED WITH

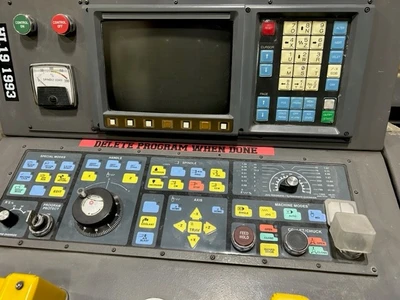

 - FANUC 0T CNC CONTROL

 - ALL AVAILABLE STATIC TOOL HOLDERS

FOR MORE INFORMATION: Call Mike at 973-497-7540
