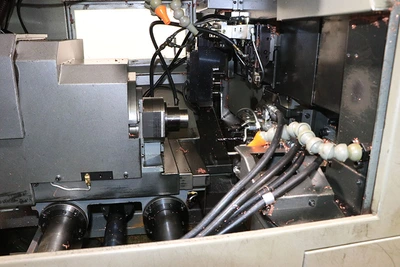

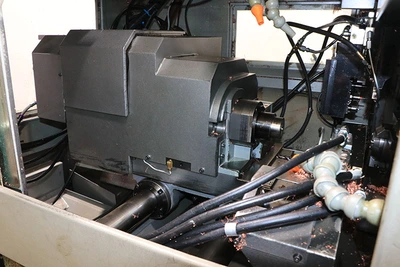

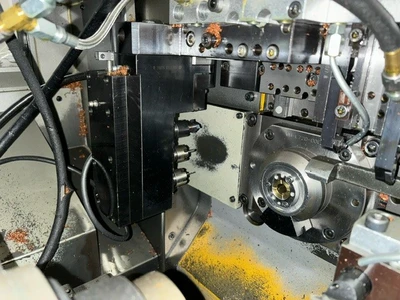

USED 2005 Citizen L-20 TypeVIII

0.75" Dia. Citizen L-20 TypeVIII CNC SWISS TYPE LATHE, CAV 20 Bar Loader, Chip Conveyor, High Pressure Co

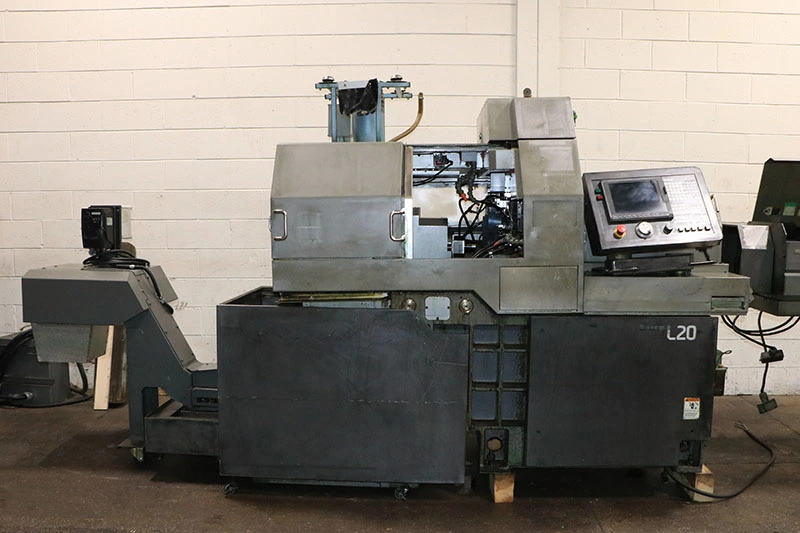

CITIZEN MODEL: L-20 TYPE VIII SWISS TYPE CNC LATHE

NEW: 2005

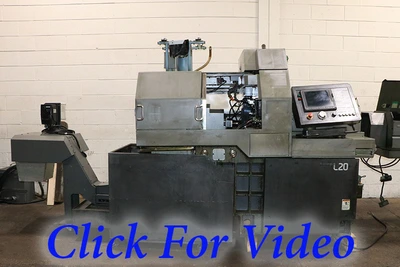

Video Link: https://youtu.be/Jk4SO3FJouc?si=zHpJ21mPOJfapYce

Specifications:

Main Spindle

 Max. machining diameter ....................... 3/4" (.79")

 Max. machining length per one chuck ........... 7.87"

 Max. drilling diameter ........................ up to .394"

 Speed ......................................... 200 - 10,000 rpm

 Min. spindle input increment .................. 0.01 Full C-axis

 Motor ......................................... 2.2/3.7 KW

 Tooling ....................................... 1/2" (T01 5/8")

Back-work:

 Max. chucking dia. of pick-off spindle ........ .79"

 Pick-off spindle speed ........................ 200 - 8,000 rpm

 Pick-off spindle motor ........................ .75/1.5 KW

 Min. spindle increment ........................ 0.01 Deg. Full C-axis

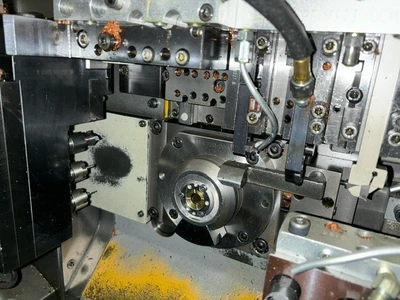

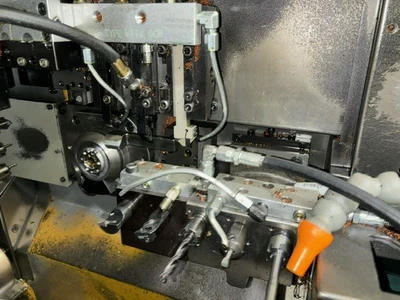

Rotary tool:

 Rotary spindle speed .......................... 200 - 5000 rpm

 Rotary tool motor ............................. 1.0 KW

Number of tools mounted ........................ 18-21

   Turning / Front ID / Back ID / Live tools ... 5 / 3 / 3 / 5

Power consumption:  ............................ 6 KVA

Approx. Machine Dims. .......................... 83.5" x 48" x 81"

Approx. Weight ................................. 5,000 lbs

Equipped With:

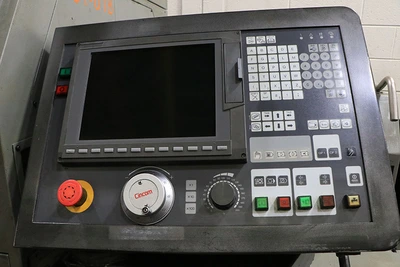

 - Cincom CNC Control

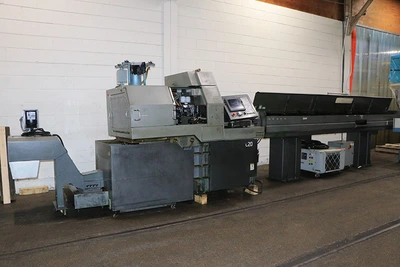

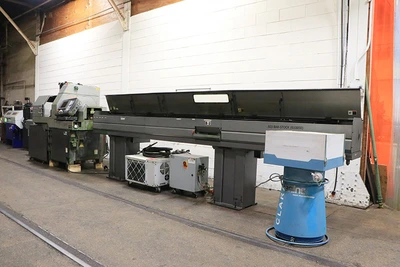

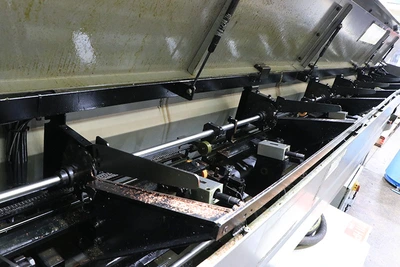

 - Citizen CAV20-IS Magazine Bar Loader

 - Chip Conveyor

 - CoolBlaster High Pressure Coolant

 - 3Nine Clara Mist Collector

FOR MORE INFORMATION: Call Mike at 973-497-7540
