USED 1999 Citizen M-12 2M3

0.5" Dia. Citizen M-12 2M3 CNC SWISS TYPE LATHE, Iemca MiniBoss 325

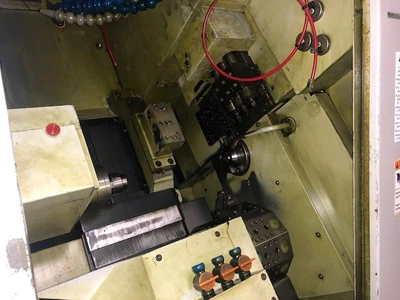

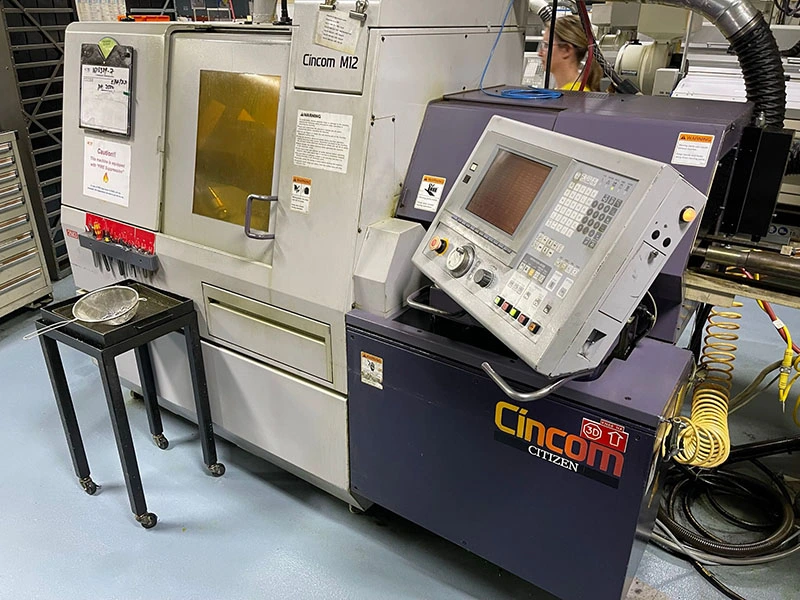

CITIZEN M-12 (2M3) CNC SWISS SCREW MACHINE

NEW: 1999

Video Link: https://youtu.be/a_8oOouuaak

General Specifications:

CNC Control:                                        Mitsubishi (M6M)

Machining Diameter:                                 1/2"

Machining Length per Chucking:                      7 3/4" (200mm)

Drilling Diameter:                                  6mm Maximum Threading

Diameter (tap & die):                               M6

Main Spindle Speed:                                 200 - 12000 rpm

Main Spindle Indexing:                              Full C-Axis

Rotary Spindle on Gang Tool Post:

   Drilling Diameter:                               5mm (Tapping M4)

Spindle Speed:                                      200 - 8000 rpm

Rotary Spindle on Tool Turret Head:

   Drilling Diameter:                               5mm

   Threading Diameter:                              M5

   Spindle Speed:                                   200 - 6500 rpm

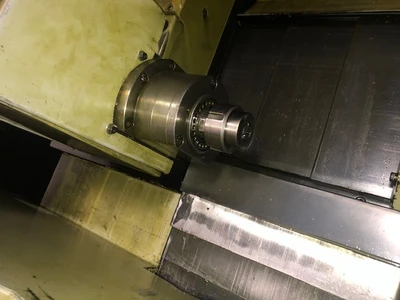

Backwork:

   Chucking Diameter of Backwork Spindle:           1/2"

   Backwork Length:                                 125mm

   Drilling Diameter:                               5mm

   Threading Diameter:                              M5

   Backwork Spindle Speed:                          250 - 6000 rpm

   Spindle Indexing:                                Full C-Axis

Number of Installable Tools:

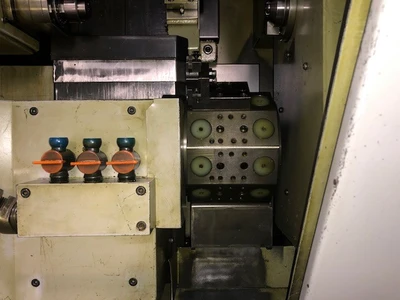

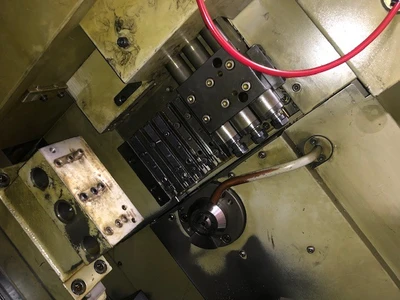

   Gang Tooling:                                    5 Turning, 3 Rotary

   Turret Tooling:                                  10 Tools

   Number of Turret Indexes:                        10 sets (20 sets avail.)

   Back Work Tool Post:                             3

Tool Sizes:

   Gang Tooling:                                    10mm x 10mm x 120mm

   Turret Tooling:                                  10mm x 10mm x 60mm

   Sleeve Size:                                     19.05mm diameter

Motors:

   Main Spindle Drive:                              1.5/2.2kw

Power Supply:                                       6 kva

Dimensions (approx.):                               97" x 49" x 68"h

Weight (approx.):                                   4840 lbs.

Machine:  96" x 45" x 89" 5,000 lbs

Equipped With:

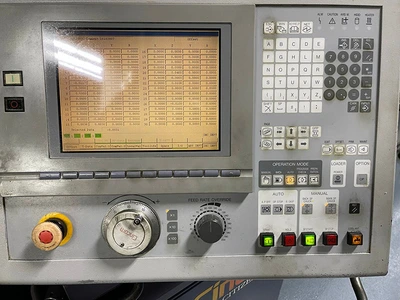

   Cincom CNC  Control

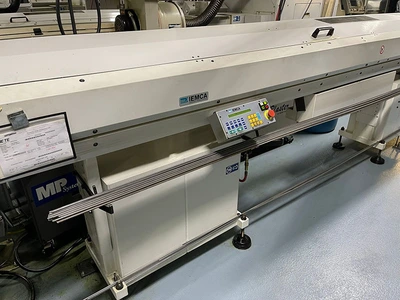

   Iemca Mini Boss 325 Magazine Bar Feed

FOR MORE INFORMATION: Call Mike at 973-497-7540
