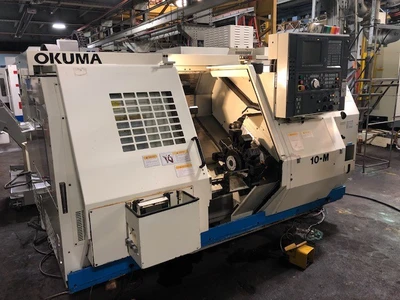

USED 1997 Okuma LT-10M Live Tool

Okuma LT-10M Live Tool CNC LATHE, OSP7000L, Twin Spindle, Twin Turret, Chip Conveyor

OKUMA LT-10M MULTI AXIS CNC TURNING CENTER

NEW: 1997

SPECIFICATIONS:

MAX DIAMETER BAR CAPACITY ........ 1.6"

MAX SWING OVER BED ............... 15.75"

DISTANCE BETWEEN NOSES ........... 37.80"

MAX TURNING DIAMETER ............. 8.27"

MAX MACHINING LENGTH ............. 5.12"

MAIN MOTOR ....................... 10/7.5 HORSEPOWER

SPINDLE SPEED L/R ................ 50 - 6,000 RPM

NO OF SPINDLE SPEED RANGES ....... AUTO 2-STEP

VAC MOTOR WINDING CHANGEOVER

TOOLS ............................ 12 + 12

DIAMETER OF OD TOOL SHANK ........ 0.79" x 0.79"

DIAMETER OF ID TOOL SHANK ........ 1.26"

SPINDLE BORE ..................... 2.09"

SPINDLE NOSE ..................... FLAT

RAPID TRAVERSE RATES ............. (X/Z) 591/787 IPM

MILLING MOTOR .................... 3 HORSEPOWER

MILLING SPEED .................... 100 - 6,000 RPM

X AXIS TRAVEL (BOTH TURRETS) ..... 7.56"

ZA AXIS TRAVEL (UPPER TURRET) .... 27.56"

ZB AXIS TRAVEL (LOWER TURRET) .... 28.74"

C AXIS TRAVEL .................... 360 DEGREE

APPROX. WEIGHT ................... 13,200 LBS

APPROX. DIMENSIONS ............... 120" X 82" X 71"

EQUIPPED WITH:

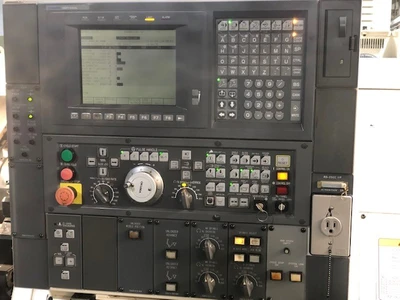

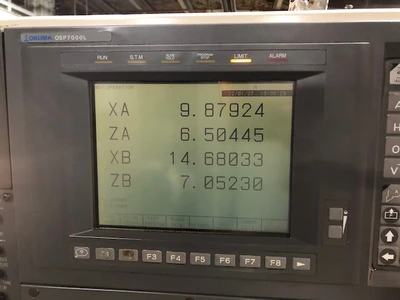

  - OSP 7000L CONTROL

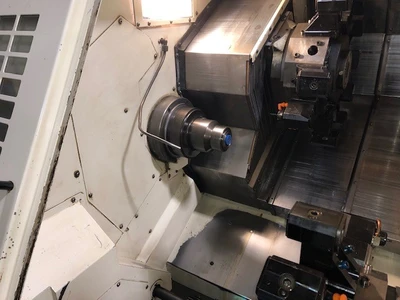

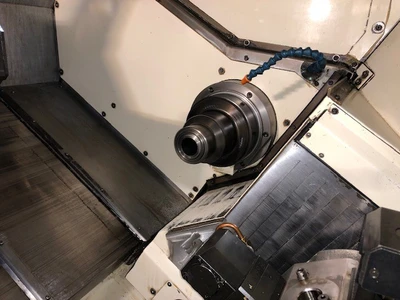

  - COLLET CHUCK ON LEFT AND RIGHT SPINDLES

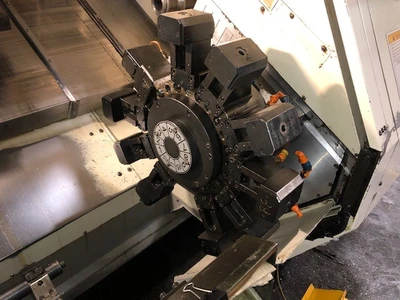

  - (2) 12 POSITION TURRETS

  - LIVE TOOL CAPABILITY ON BOTH TURRETS

  - PARTS CATCHER

  - CHIP CONVEYOR

  - ALL AVAILABLE STATIC & LIVE TOOL HOLDERS

  - ALL AVAILABLE MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
