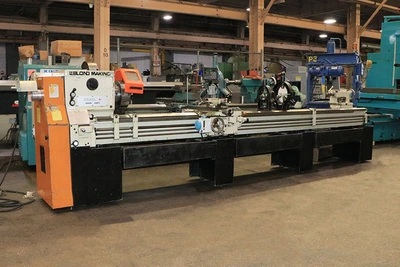

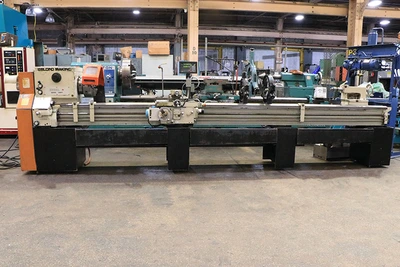

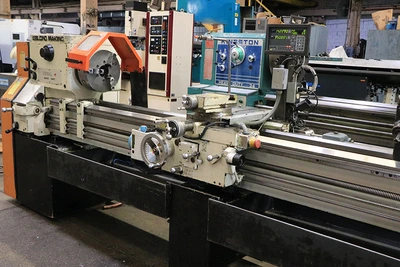

USED 1992 LeBlond-Makino 19" Regal Servo-Shift

19" Swing 150" Centers LeBlond-Makino 19" Regal Servo-Shift ENGINE LATHE, Inch/Metric, Taper, 3" Hole, 2 Stead Rests, 3-Jaw,

19" x 150" LEBLOND MAKINO SERVO-SHIFT ENGINE LATHE

MODEL: 19" REGAL, S/N: 15E-430, NEW: 1992

SPECIFICATIONS:

SWING OVER BED ...................... 19-1/4"

SWING OVER CROSS SLIDE .............. 12-1/4"

DISTANCE BETWEEN CENTERS ............ 150"

SPINDLE NOSE ........................ D1-8" CAMLOCK

HOLE THRU SPINDLE ................... 3-1/16"

WIDTH OF BED ........................ 14-3/8"

SPINDLE SPEED RANGE (12) ............ 40 - 1600 RPM

LONGITUDINAL FEED RANGE (48) ........ .0018" - .104" IPR

CROSS FEEDS HALF THE VALUES OF LONGITUDINAL

THREADING RANGE ENGLISH (48) ........ 2 - 112 TPI

THREADING RANGE METRIC (40) ......... 0.25 - 12 mm

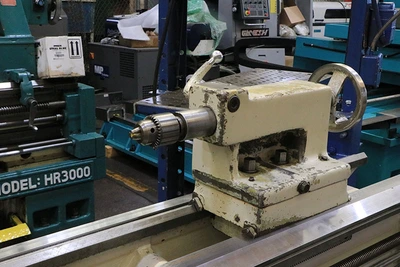

TAILSTOCK SPINDLE TRAVEL ............ 7"

TAILSTOCK SPINDLE TAPER ............. #4 MT

APPROX WEIGHT ....................... 6,500 LBS

APPROX DIMENSIONS ................... 214"L x 50"W x 51"H

EQUIPPED WITH:

- REPLACEABLE HARDENED BED WAYS

- INCH/METRIC THREADING

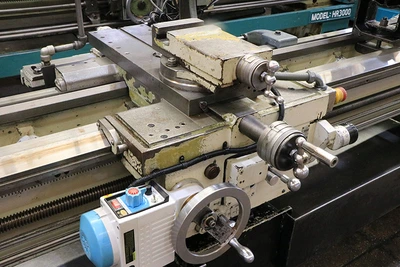

- TAPER TURNING ATTACHMENT

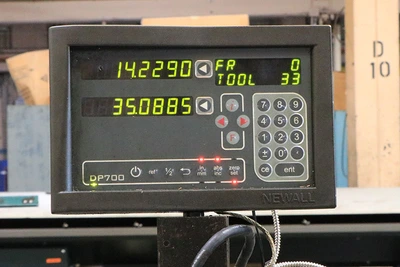

- NEWALL TOPAZ TWO AXIS DIGITAL READOUT

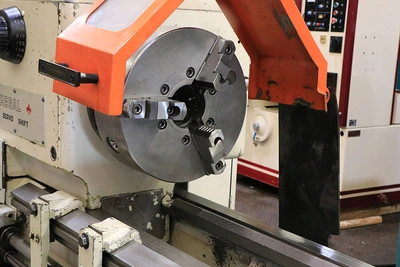

- 12" 3-JAW CUSHMAN CHUCK

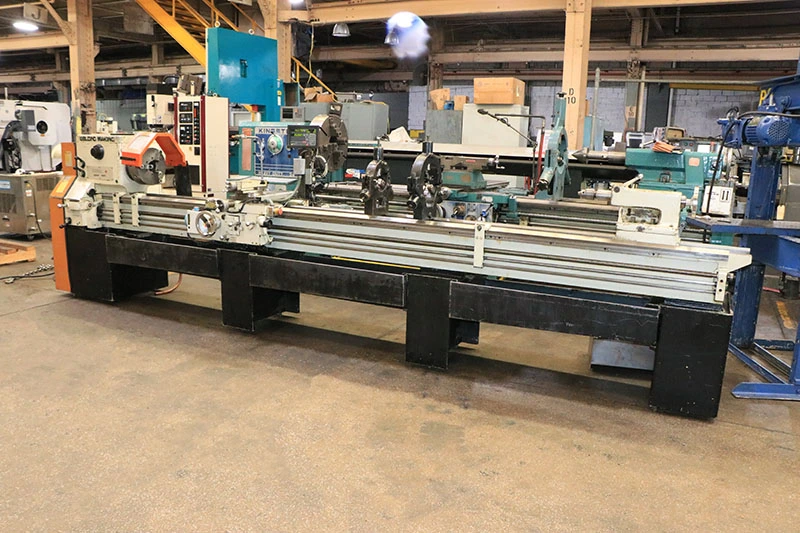

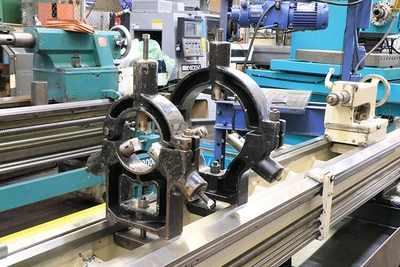

- (2) ROLLER TYPE STEADY RESTS

- THREAD DIAL

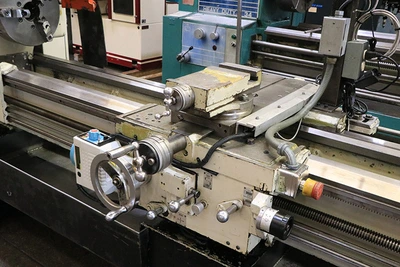

- MICROMETER CARRIAGE STOP

- COOLANT SYSTEM WITH REMOVABLE CHIP PANS

- 10 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
