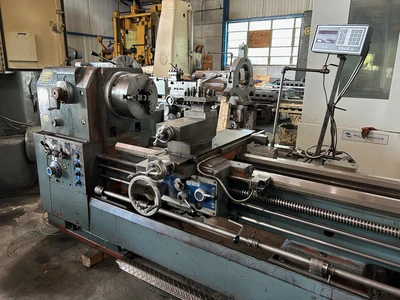

USED 1997 Kingston HD-26160 4" Hole, Taper

26" Swing 160" Centers Kingston HD-26160 4" Hole, Taper ENGINE LATHE, Inch/Metric,Gap,4" Hole,Taper,3&4 Jaw, 2 Steadies

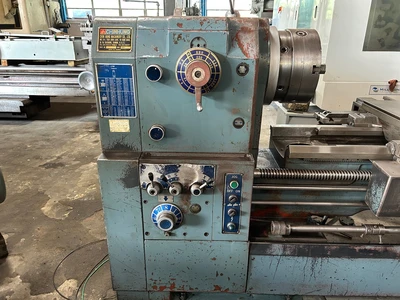

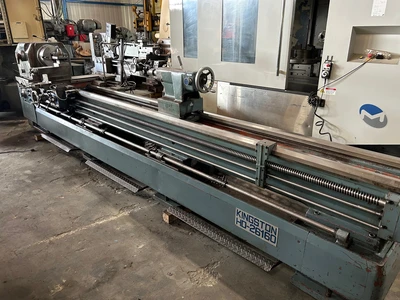

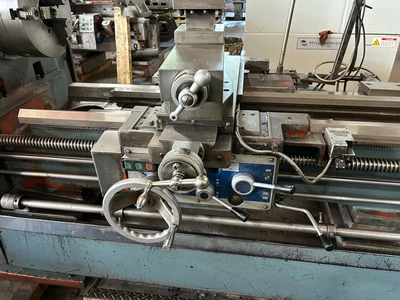

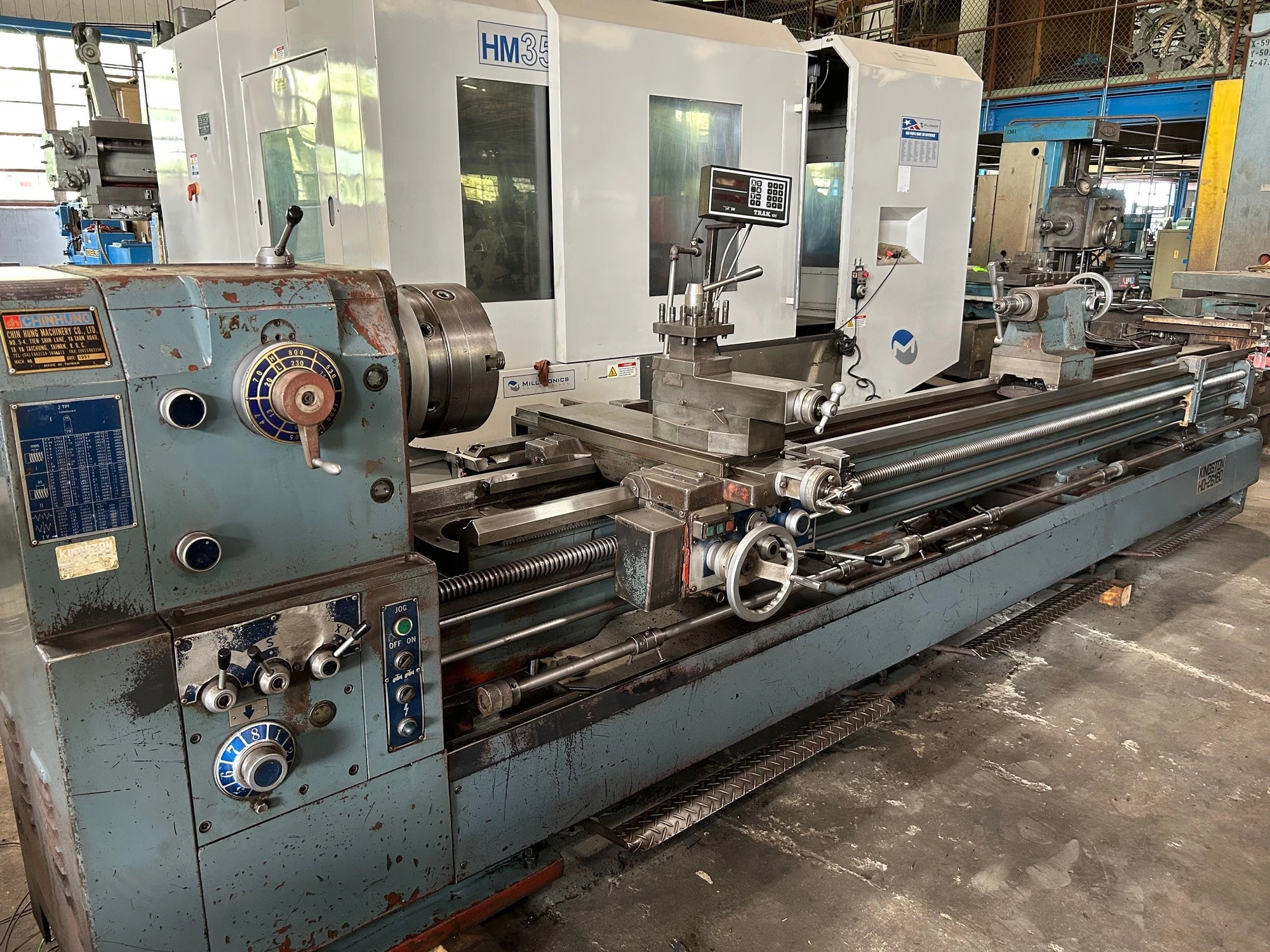

26"/35" X 160" KINGSTON GAP BED ENGINE LATHE

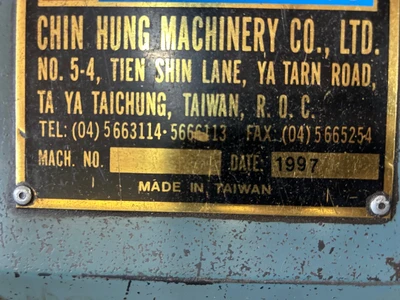

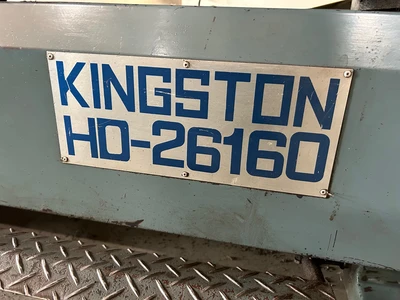

MODEL: HD26160,  S/N: CH97626,  YEAR: 1997

SPECIFICATIONS:

SWING OVER BED........................ 26"

SWING OVER CROSS SLIDE................ 17-1/2"

SWING IN REMOVABLE GAP................ 35-1/8"

SPINDLE NOSE CAMLOCK.................. D1-11"

HOLE THROUGH SPINDLE.................. 4-1/16"

DISTANCE BETWEEN CENTERS.............. 160"

SPINDLE SPEED RANGE (12).............. 13 - 1200 RPM

LONGITUDINAL FEED RANGE ............. .0012" - .039" IPR

CROSS FEEDS HALF OF LONGITUDINAL SETTING

ENGLISH THREADING RANGE .............. 1 - 42 TPI

METRIC THREADING RANGE ............... .2 - 14 M

TAILSTOCK SPINDLE DIAMETER............ 2-15/16"

TAILSTOCK SPINDLE TRAVEL.............. 7"

TAILSTOCK SPINDLE TAPER............... #5MT

APPROXIMATE FLOOR SPACE............... 55"W x 217"L

APPROXIMATE WEIGHT.................... 8,500 LBS.

EQUIPPED WITH:

 - TRAK TWO AXIS DIGITAL READOUT

 - TAPER TURNING ATTACHMENT

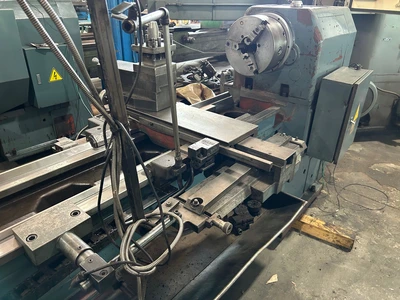

 - 4-JAW CHUCK

 - 3-JAW CHUCK

 - 16" CAPACITY ROLLER TYPE STEADY REST

 - 10" CAPACITY ROLLER TYPE STEADY REST

 - FOURWAY TOOLPOST

 - 3/4" CAPACITY DRILL CHUCK

 - THREAD DIAL INDICATOR

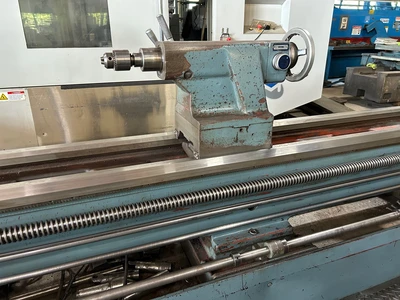

 - TWO SPEED TAILSTOCK

 - COOLANT SYSTEM WITH REMOVEABLE CHIP PANS

 - FOOT BRAKE

 - RAPID TRAVERSE

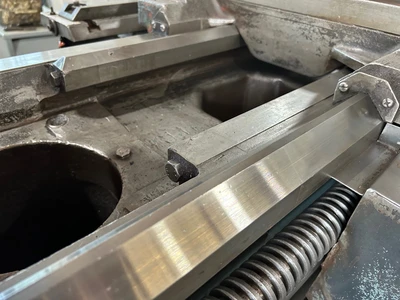

 - HARDENED & GROUND BEDWAYS

 - 10 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN A MIDWEST WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
