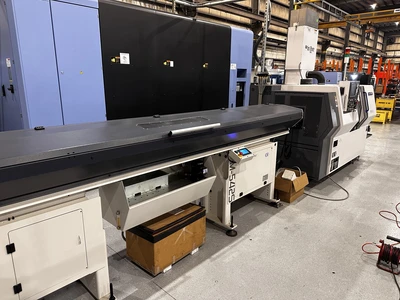

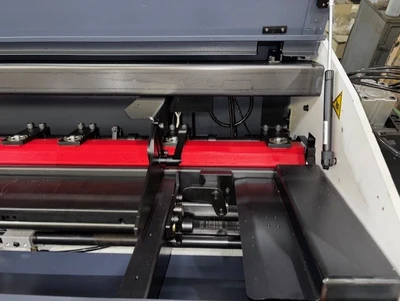

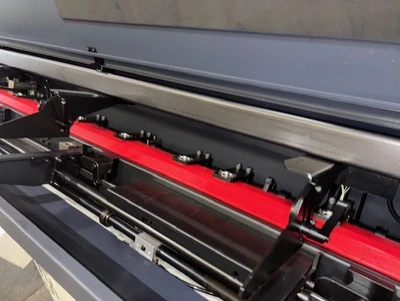

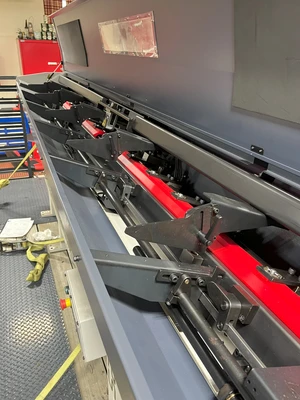

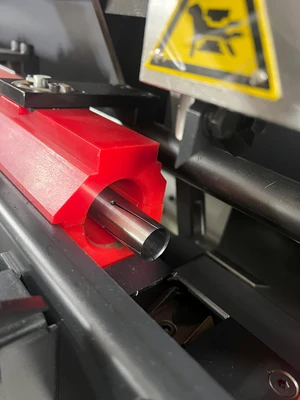

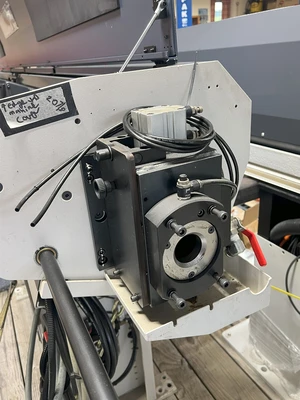

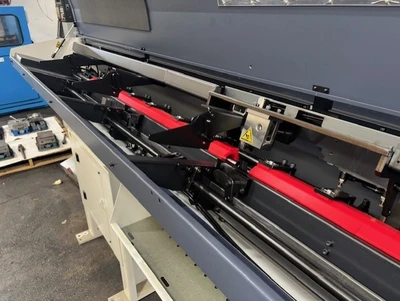

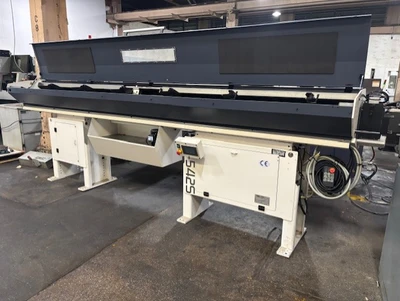

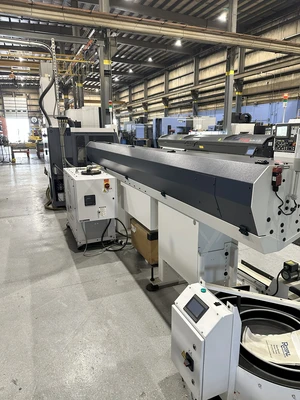

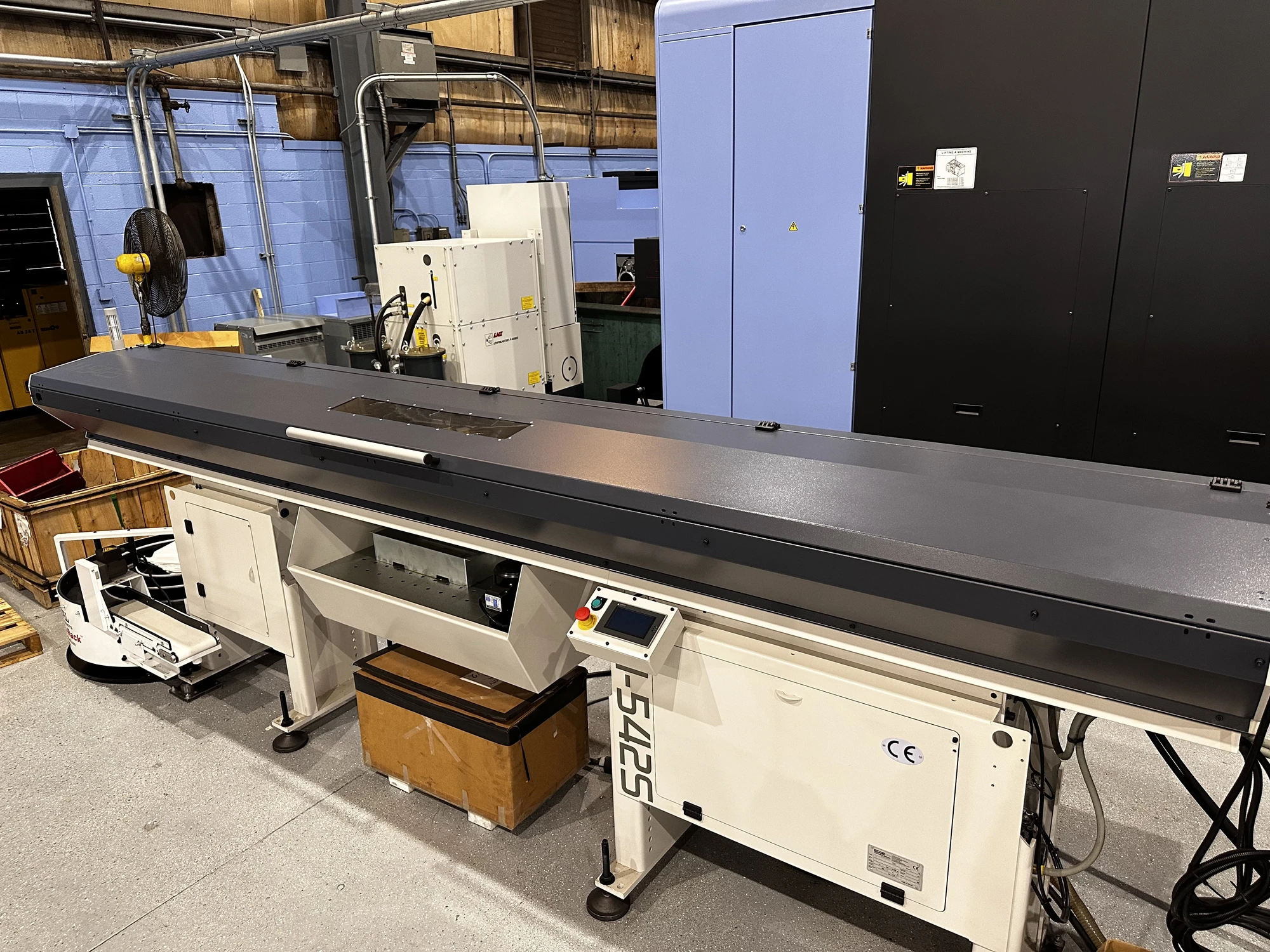

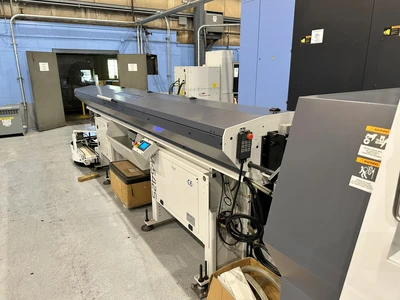

USED 2021 Edge Tech MIYANO M-542

1.26" Dia. 12' Length ft Edge Tech MIYANO M-542 BAR FEED

           EDGE TECH MIYANO 542 MAGAZINE BARFEED

                       NEW: 2021

                ** HAS NEVER BEEN USED **

This barfeed has never had any bars installed in it for use. It was purchased to be used on a Miyano BNA-42GTY

Specifications Direct From OEM Brochure:

Power consumption: 2 KW

Feed force: adjustable, max. 450 N (101 lbf)

Forward feed rate: adjustable 750 mm/sec max. (2.46 ft/sec)

Return feed rate: 1000 mm/sec (3.3 ft/sec)

Loading time: 30 sec (for 12’ bars)

Oil capacity : 55 liters (15 gallons)

Oil viscosity: ISO 100-150 hydraulic oil

Operating voltage: 200-230 V/60 Hz

Compressed air supply: 6 bar = (90 psi)

Compressed air consumption: approx. 8 liters per loading action

Bar Feed Dimensions: 180" x 25" x 51"

Weight without oil: 950 kg (2100 lbs)

Remnant length: 406 mm max (16 inches)

Maximum Bar Length: 3810 mm (12’6”)

Bar Diameter Range: 5-42 mm (.196”-1.653”)

Magazine Capacity: 12 linear inches

FOR MORE INFORMATION: Call Mike at 973-497-7540
