USED 2003 Chevalier FALCON-2033

33.5" X Axis 19" Y Axis Chevalier FALCON-2033 VERTICAL MACHINING CENTER, Fanuc OMC Control, Box Ways, 20 ATC,8000 RPM

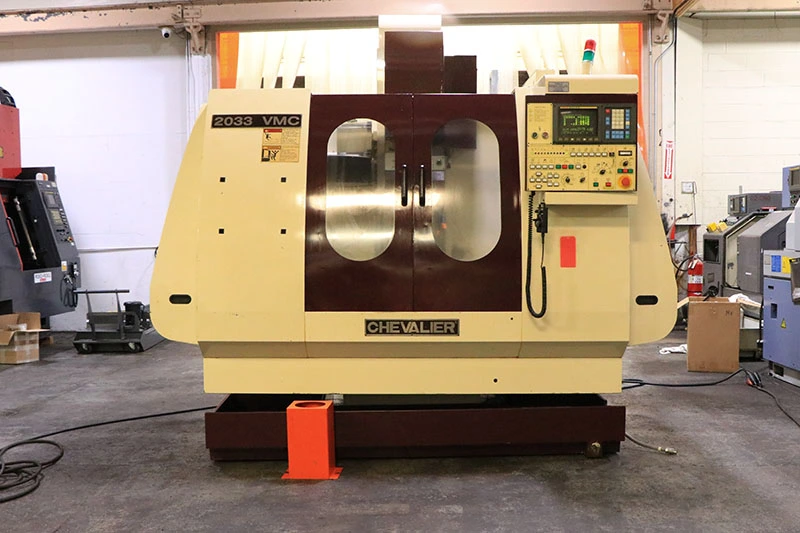

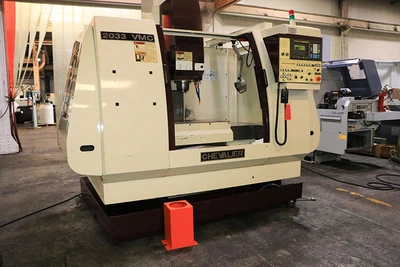

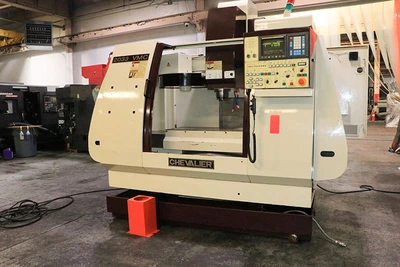

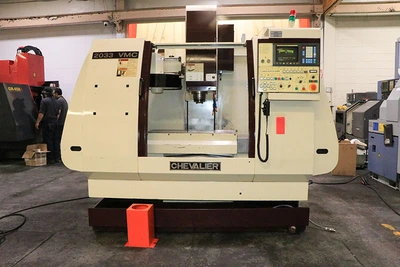

CHEVALIER VERTICAL MACHINING CENTER

MODEL: FALCON-2033, S/N: 875A07, YEAR: 2003

SPECIFICATIONS:

X-AXIS TRAVEL............... 33.5"

Y-AXIS TRAVEL............... 19.7"

Z-AXIS TRAVEL............... 19.7"

TABLE SIZE.................. 39.4" X 17.7"

MAXIMUM TABLE LOAD.......... 1100 LBS / 500 kg

SPINDLE NOSE TO TABLE TOP... 5.9" - 25.6"

SPINDLE MOTOR............... 15 HP

MAX SPINDLE SPEED........... 8,000 RPM

SPINDLE TAPER............... 40 CAT

AUTOMATIC TOOL CHANGER...... 20 TOOLS

RAPID TRAVERSE RATES X-Y/Z.. 590/472 IPM

APPROXIMATE MACHINE WEIGHT.. 10,560 LBS

APPROXIMATE FLOOR SPACE .... 107.9" X 98.7" X 108.5"

EQUIPPED WITH:

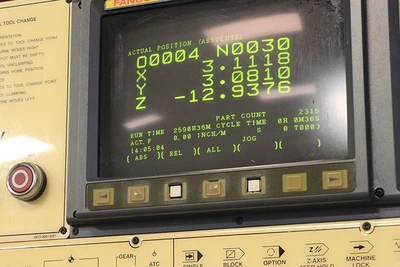

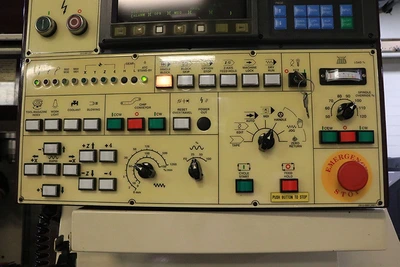

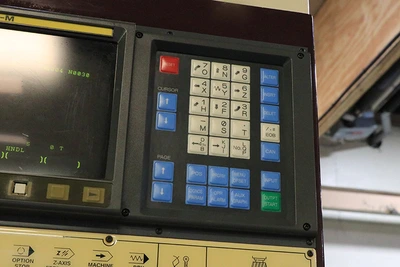

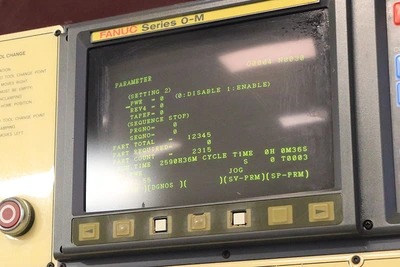

- FANUC MODEL: 0-MC CNC CONTROL

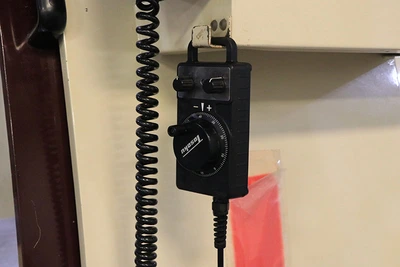

- MANUAL PULSE GENERATOR

- FANUC MOTORS & DRIVES ALL AXES

- RIGID TAPPING

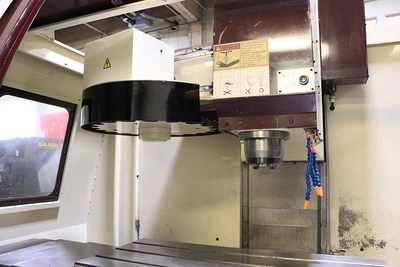

- 20 STATION AUTOMATIC TOOL CHANGER

- COOLANT SYSTEM

- BOX WAYS

- CHIP CONVEYOR

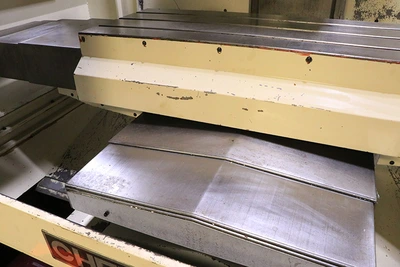

- STEEL TELESCOPIC WAY COVERS

- 15 HORSE POWER FANUC AC SPINDLE MOTOR

 PURCHASED FROM A FORTUNE 500 COMPANY

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****  SUPERB  ****

FOR MORE INFORMATION: Call David at 973-497-7570
