USED 2012 Quaser MK 603

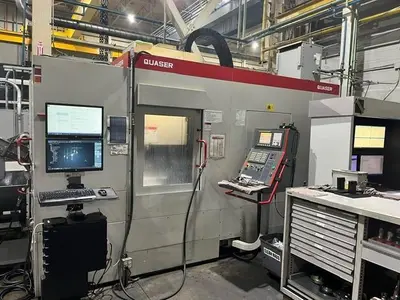

40" X Axis 20" Y Axis Quaser MK 603 VERTICAL MACHINING CENTER

QUASAR VERTICAL MACHINING CENTER

MODEL: MK 603, S/N: 201U120544, NEW: 2012

SPECIFICATIONS

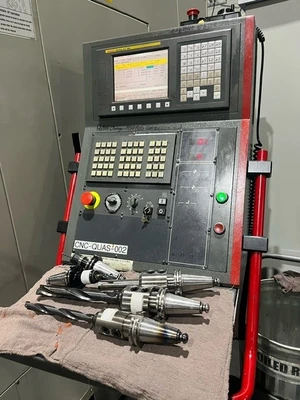

TYPE OF CNC CONTROL FANUC 0I-MD

# AXIS 3

TABLE SIZE ................. 41.3" X 21.6" (2 PALLETS)

TABLE CAPACITY ............. 660 POUNDS

X-AXIS TRAVEL .............. 40.1 INCHES

Y-AXIS TRAVEL .............. 24 INCHES

Z-AXIS TRAVEL .............. 23.6 INCHES

SPINDLE SPEED .............. 12,000

SPINDLE TAPER .............. CAT 40 BIG PLUS

MAIN MOTOR ................. 30 HP

TOOL CHANGER CAPACITY ...... 48

X-AXIS FEEDRATE ............ 787 IPM

Y-AXIS FEEDRATE ............ 787 IPM

Z-AXIS FEEDRATE ............ 787 IPM

X-AXIS RAPID TRAVERSE RATE . 1,260 IPM

Y-AXIS RAPID TRAVERSE RATE . 1,260 IPM

Z-AXIS RAPID TRAVERSE RATE . 1,260 IPM

COOLANT THRU SPINDLE ....... YES

DIMENSIONS ................. 113" X 191" X 130"

MAX DISTANCE SPINDLE

-TO TABLE TOP .............. 28.7 INCHES

TOOL CHANGE TIME ........... 2.5" TOOL TO TOOL, 6" CHIP TO CHIP

FOR MORE INFORMATION: Call Sales at 973-497-7510
