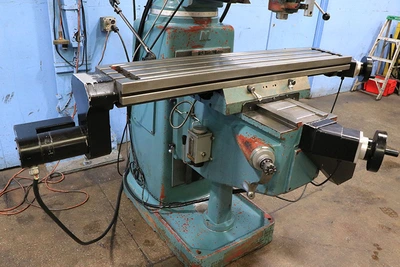

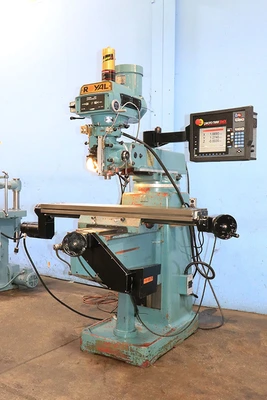

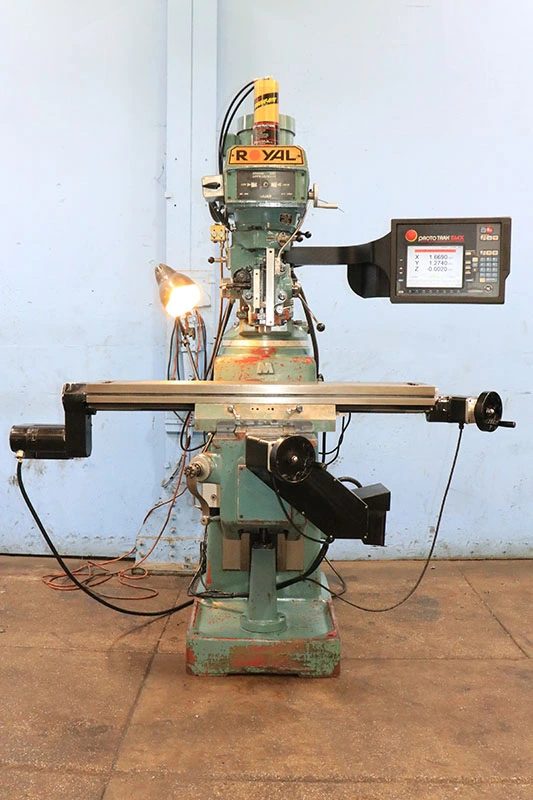

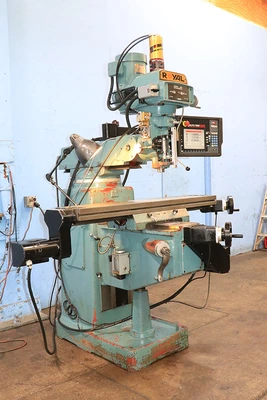

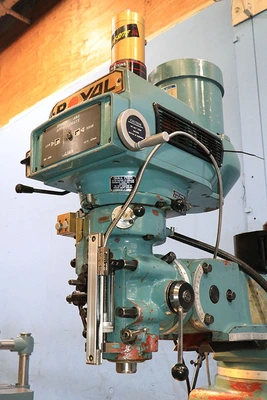

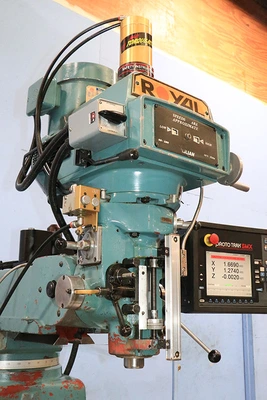

USED 2010 Royal 380VK

33" X Axis 3HP Spindle Royal 380VK CNC VERTICAL MILL, Proto-Trak SMX Cntrl,Electronic HandWheels,R-8 PDB

ROYAL PROTO-TRAK 2-AXIS CNC VERTICAL MILL

MODEL: 380VK, S/N: 7159

NEW: 1991, RETROFITTED in 2010

 W/PROTO-TRAK SMX CONTROL

ELECTRONIC HANDWHEELS AND 3 AXIS READOUTS

SPECIFICATIONS:

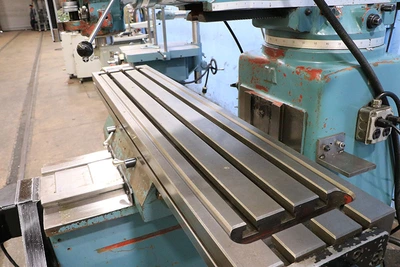

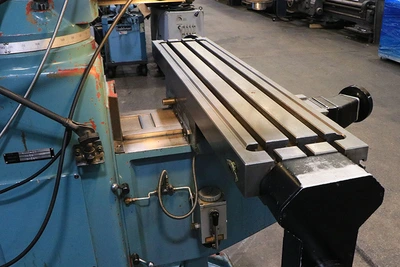

WORKING SURFACE OF TABLE ................. 10" x 50"

LONGITUDINAL TABLE TRAVEL ................ 33"

CROSS TABLE TRAVEL ....................... 14"

QUILL TRAVEL ............................. 5"

KNEE TRAVEL .............................. 14"

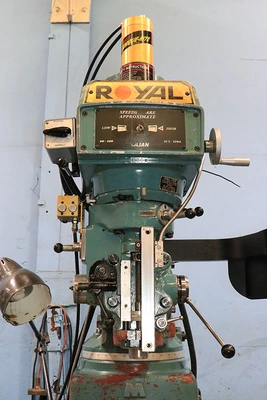

SPINDLE TAPER ............................ R-8

VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM

SPINDLE FEEDS(3) ................... .0015, .003, .006" IPR

FLOOR SPACE: ......................... 75"W x 72"D x 82"H

WEIGHT APPROXIMATELY: .................... 2,750 LBS.

EQUIPPED WITH:

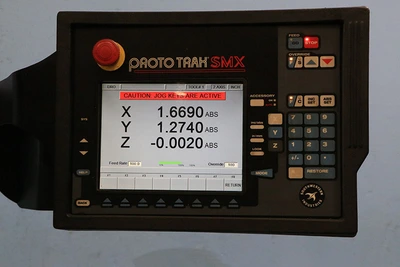

PROTO-TRAK MODEL: SMX 2-AXIS CNC CONTROL

  (MADE BY SOUTHWESTERN IND.)

   WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS

   LINEAR& CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,

   BOLT HOLE PATTERNS, RS-232

IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT

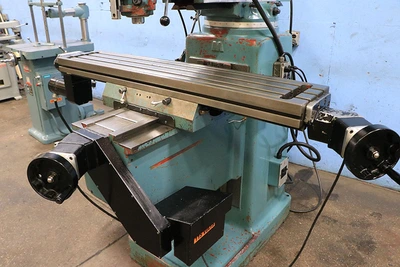

ELECTRONIC HANDWHEELS FOR X & Y AXIS

GROUND BALLSCREWS ON TABLE & SADDLE

HARD WAYS

LUBRICATION SYSTEM

3 HORSE POWER SPINDLE MOTOR

TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
