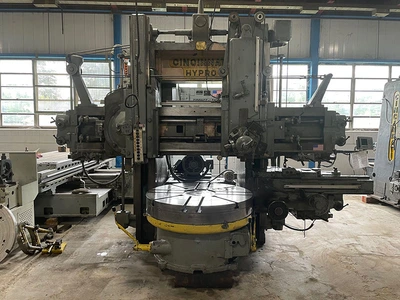

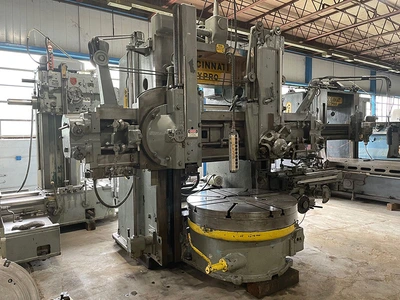

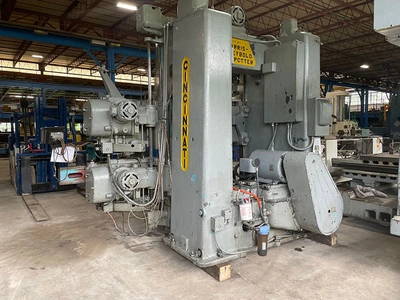

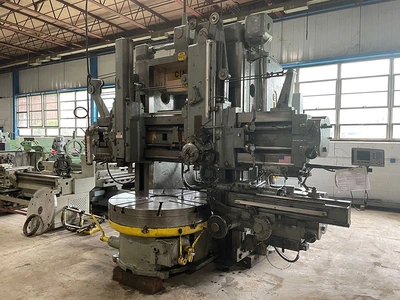

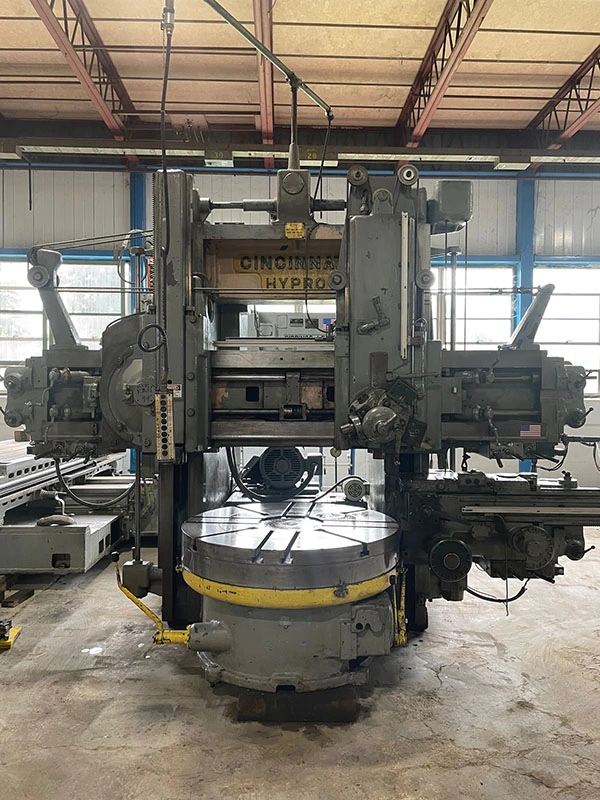

52" Table 56" Swing Cincinnati HYPRO VERTICAL BORING MILL, Ram Turret & Sidehead, Faceplate, 30 HP
52" CINCINNATI VERTICAL BORING MILL,
MODEL: HYPRO
SPECIFICATIONS:
DIAMETER OF TABLE .................. 52"
MAX. SWING ......................... 56"
MAX. HEIGHT UNDER CROSS RAIL ....... 44"

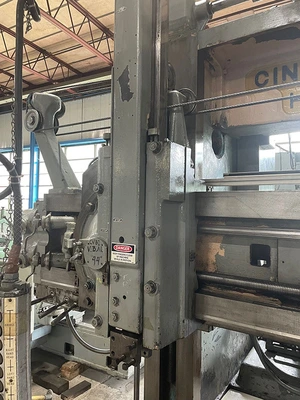

RAM HEAD VERTICAL TRAVEL ........... 32"
TURRET HEAD VERTICAL SLIDE TRAVEL .. 27"
SWIVEL OF RAM HEAD ................. ±60°
TRAVEL OF SIDE HEAD RAM ............ 26"
VERTICAL TRAVEL OF SIDE HEAD ....... 36"
TABLE SPEEDS (16) .................. 2 TO 72 RPM

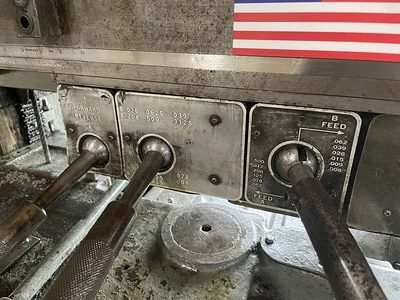

FEEDS (16) ......................... .003 - .500 IPR
APPROX. WEIGHT ..................... 47,500 LBS
HEIGHT TO TOP OF MACHINE ........... 10'9"
EQUIPPED WITH:

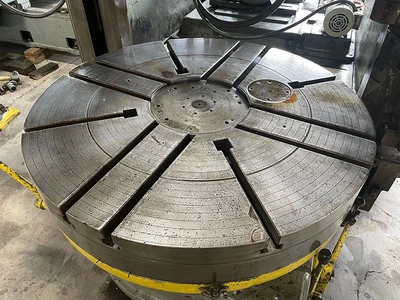

- T-SLOTTED TABLE
- L.H. SWIVEL RAM HEAD

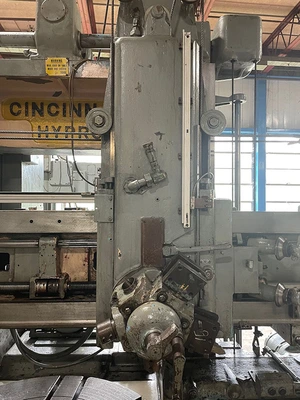

- R.H. PENTAGON TURRET HEAD WITH MANUAL INDEXING

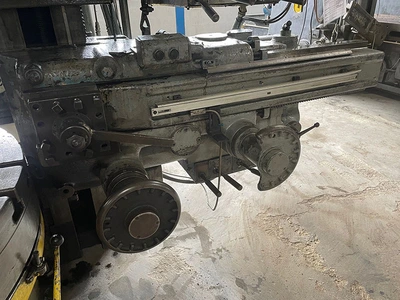

- SIDE HEAD
- POWER RAPID TRAVERSE
- HORSE POWER MAIN DRIVE MOTOR
- FLUSH FLOOR DESIGN
- 30 HORSE POWER MOTOR
FOR MORE INFORMATION: Call David at 973-497-7570
