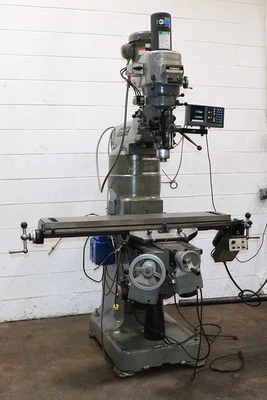

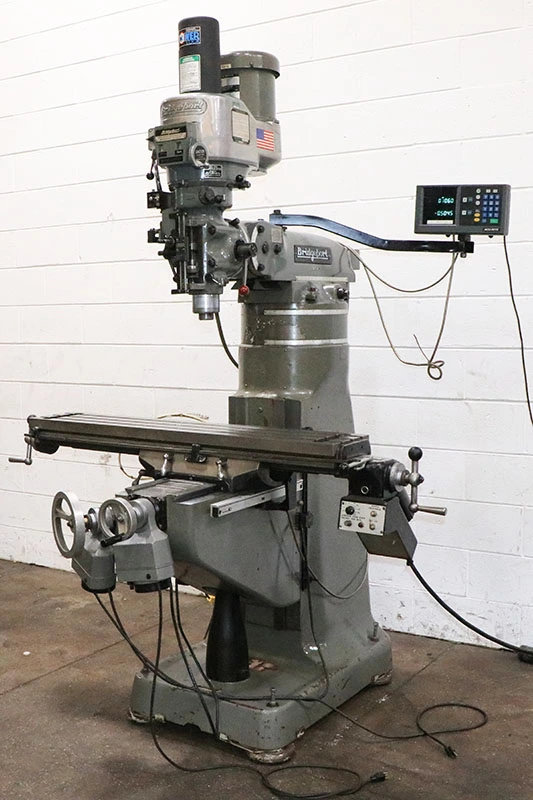

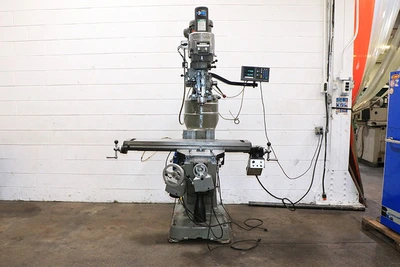

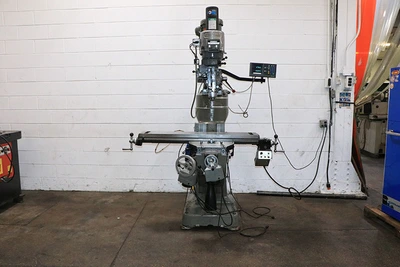

USED 1993 Bridgeport Series I

48" Table 2HP Spindle Bridgeport Series I VERTICAL MILL, Vari-speed,R8 PDB, Acu-rite DRO, 3 Tbl Pwr Feeds,

BRIDGEPORT VERTICAL MILLING MACHINE

MODEL: SERIES I, S/N: BR 263336, NEW: 1993

SPECIFICATIONS:

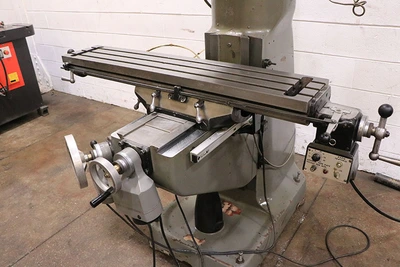

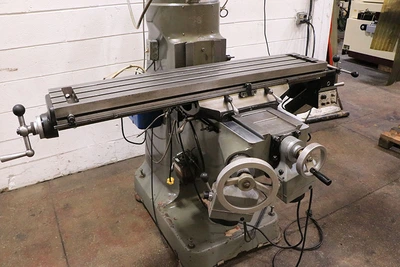

TABLE SIZE .............................. 9" X 48"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 36"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 12"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM

SPINDLE TAPER ........................... R-8

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

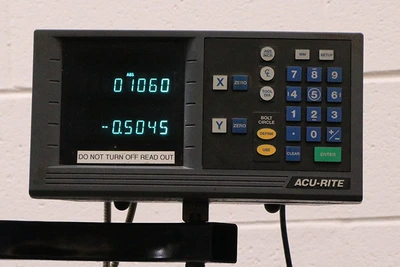

ACURITE TWO AXIS DIGITAL READOUT

MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL

BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL

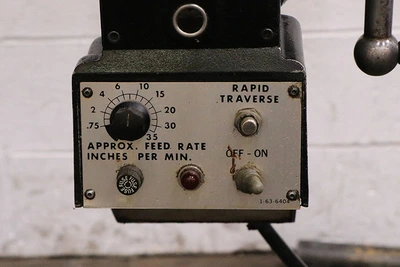

SERVO POWER FEED FOR CROSS TRAVEL

SERVO POWER FEED FOR VERTICAL KNEE TRAVEL

CHROME WAYS

KURT AIR ACTUATED POWER DRAW BAR

4" RISER BLOCK

BIJUR SPRAY MIST COOLANT SYSTEM

BIJUR ONE SHOT LUBRICATION SYSTEM

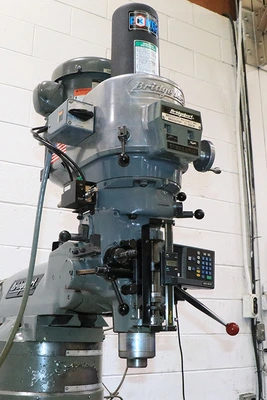

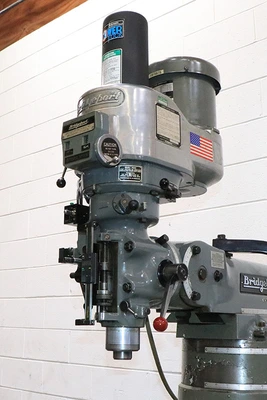

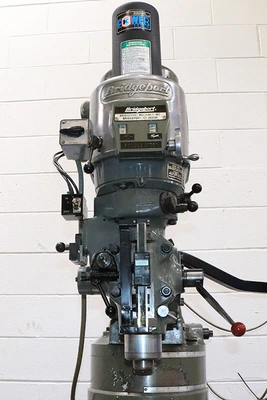

BRIDGEPORT SERIES I MILLING HEAD S/N: 289791

2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
