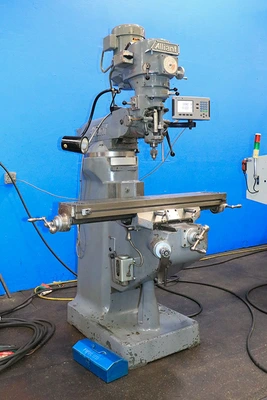

USED 2003 Alliant 42VC

42" Table 3HP Spindle Alliant 42VC VERTICAL MILL, Vari-Speed, R-8, acu-Rite 2-Axis DRO

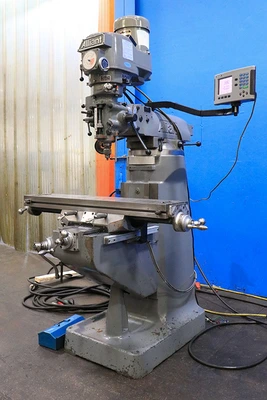

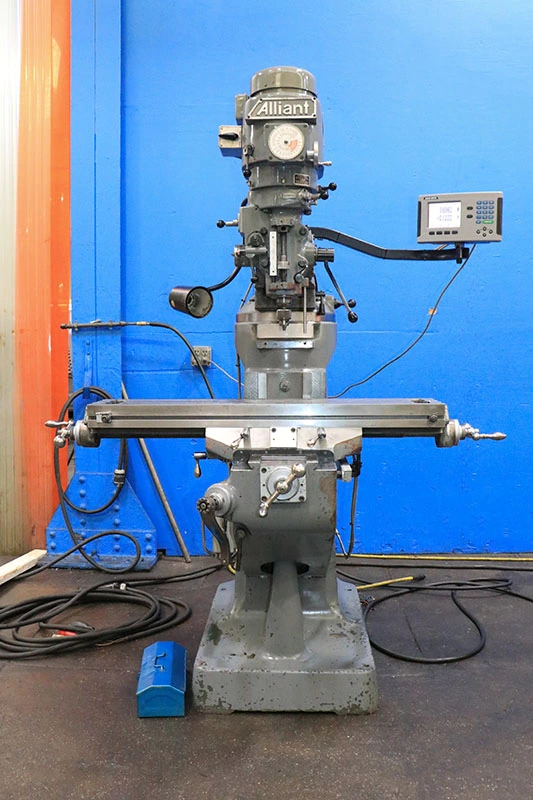

ALLIANT VERTICAL MILLING MACHINE

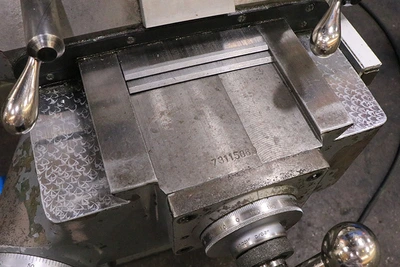

MODEL: 42VC, S/N: 73115069, NEW: 2003

SPECIFICATIONS:

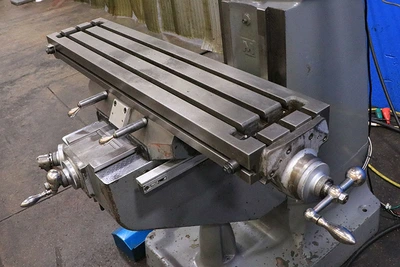

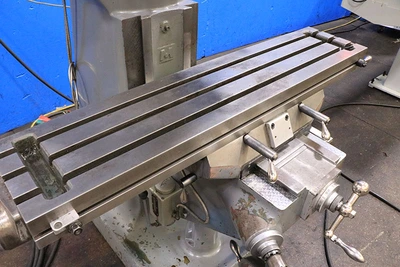

TABLE SIZE ........................... 9" X 42"

NUMBER OF T-SLOTS .................... 3

MAXIMUM WEIGHT OF WORKPIECE .......... 750 LBS

LONGITUDINAL TABLE TRAVEL ............ 30"

CROSS TRAVEL ......................... 12"

QUILL TRAVEL ......................... 5"

KNEE TRAVEL .......................... 16"

RAM TRAVEL ........................... 12"

MAX/MIN DIST, SPINDLE NOSE

    TO TOP OF TABLE ................ 18-1/2" / 2-1/2"

MAX/MIN DIST, CENTERLINE OF SPINDLE

    TO FACE OF COLUMN .............. 18-3/4" / 6-3/4"

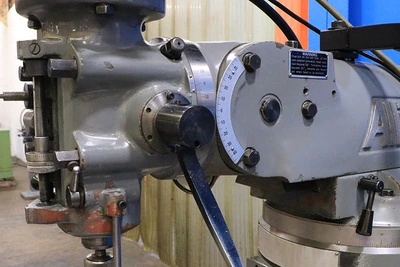

HEAD TILT:

    LEFT & RIGHT ................... 90 DEG

    FRONT & BACK ................... 35 DEG

INFINITELY VARIABLE SPEED RANGE ...... 60-4,500 RPM

POWER QUILL FEEDS (3) ................ .0015, .003, .006 IPR

INFINITELY VARIABLE SPEED RANGE ...... 60-4,200 RPM

SPINDLE TAPER ........................ R-8

MAX COLLET CAPACITY .................. 3/4"

APPROXIMATE WEIGHT ................... 2,000 LBS

EQUIPPED WITH:

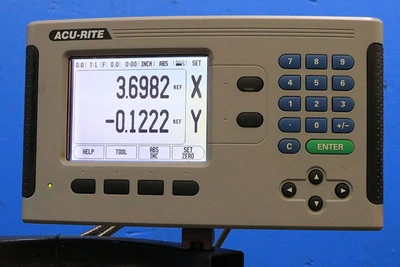

ACU-RITE TWO AXIS DIGITAL READOUT

CHROME WAYS

ONE-SHOT LUBE

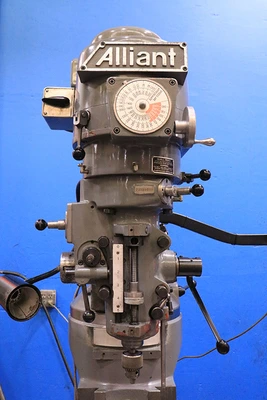

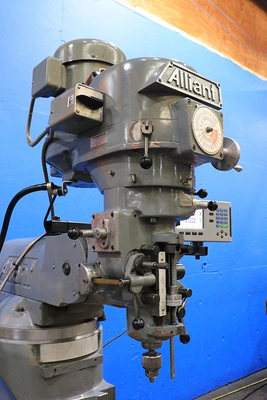

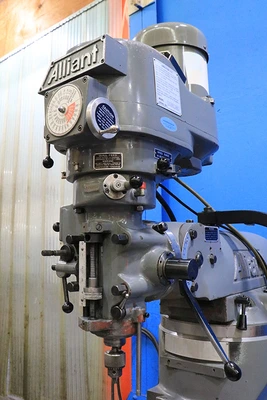

2 HORSE POWER MILLING HEAD

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
