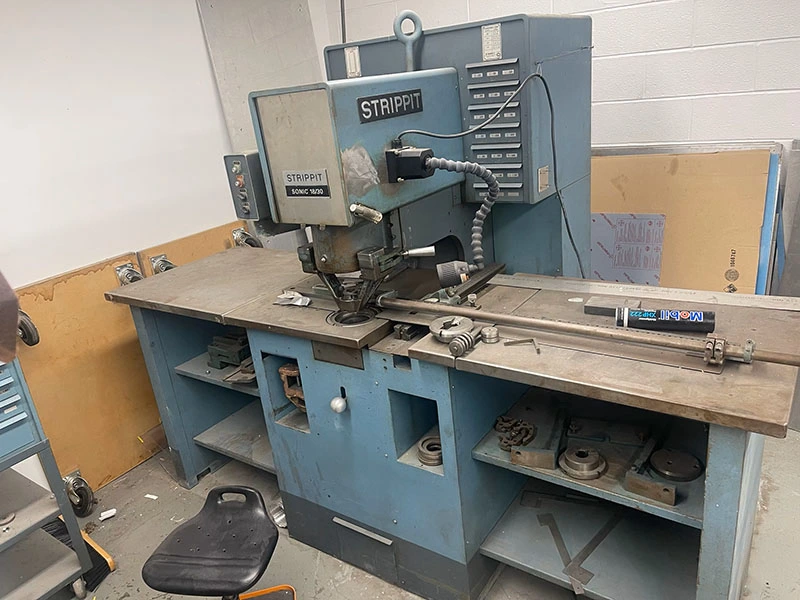

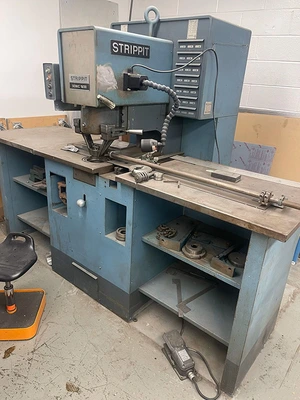

USED 1968 Strippit SONIC 18/30

30 Ton 18" Throat Strippit SONIC 18/30 SINGLE STA. PUNCH PRESS

30 TON STRIPPIT SONIC 18/30 FABRICATOR

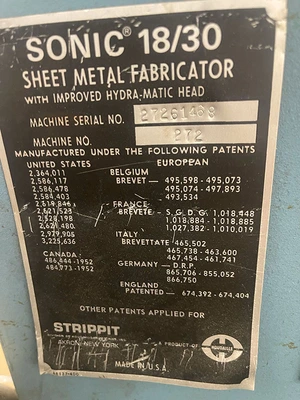

MODEL SONIC 18/30     S/N 27261468     NEW 1968

Capacity ....................... 30 Ton

Stock Size ..................... 18” x 30”

Material Thickness ............. 1/4” max

Max. Hole size ................. 3/4" in 1/4" m.s.

Throat depth ................... 18”

Shut Height .................... 5-13/32"

Stroke ......................... 5/8”

Strokes per min. ............... 165

Motor .......... 1 HP / 1,200 RPM, 230/460 v , 3 ph.

Overall Dim.: 67” x 88” x 67”

Weight: 3,800 lbs.

EQUIPPED WITH:

- ELECTRIC FOOT PEDAL

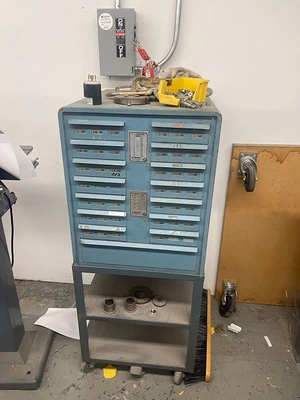

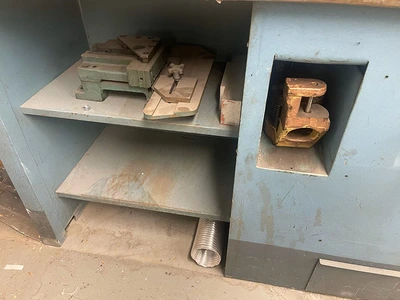

- MISCELLANEOUS TOOLING & CABINETS

- 1-1/4" & 3-1/2" TOOL HOLDERS

- CORNER NOTCHING DIE

- LAMP

- BACKGAUGE WITH FINGER STOPS

FOR MORE INFORMATION: Call Rick at 973-497-7560
