USED 1995 Hardinge CONQUEST T42

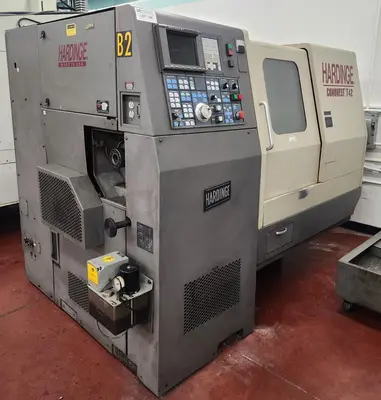

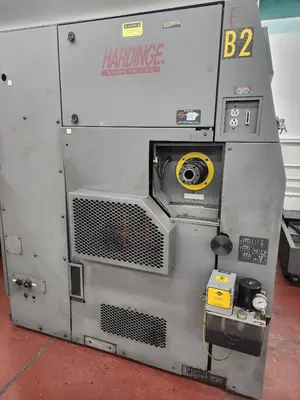

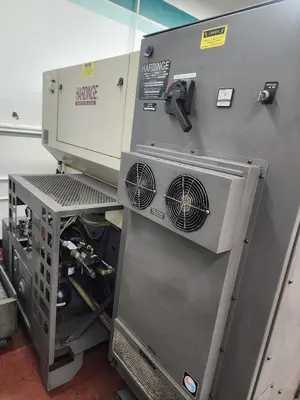

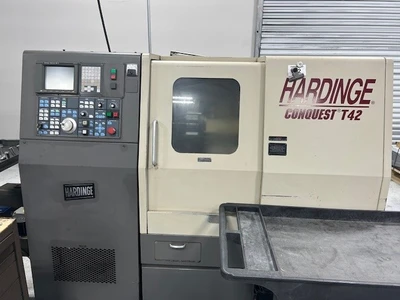

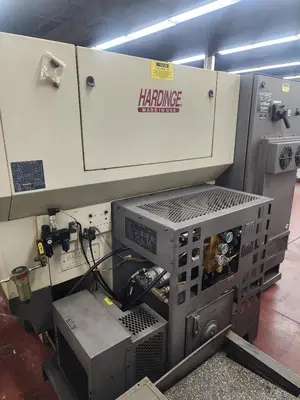

(1) USED HARDINGE CONQUEST T42 CNC LATHE

NEW: 1995

SPECIFICATIONS:

SPINDLE

SPINDLE CONFIGURATION (ANSI):    A2-5", 16C

ROUND COLLET (THROUGH CAPACITY): 1.625"

AC DIGITAL DRIVE SYSTEM

STANDARD:    10 HP

TORQUE RATING:    42 FT-LB

SPEED RANGE (1-RPM STEPS):    50 TO 5000

CARRIAGE AND CROSS SLIDE

SWING DIAMETER OVER UPPER WAY COVER:    21.2"

PRELOADED BALL SCREW DIAMETER:    1.259"

X-AXIS TRAVEL (MAX.):    5.5"

X-AXIS RAPID TRAVERSE RATE:    472 IPM

Z-AXIS RAPID TRAVERSE RATE:    630 IPM

Z-AXIS (DRILLING) THRUST (MAX.):    1,500 LBS

BI-DIRECTIONAL VERTICAL TURRET

NO. OF STATIONS:    12

SQUARE SHANK TOOL SIZE (MAX.):    3/4"

ROUND SHANK TOOL SIZE (MAX.):    1-1/4"

DISTANCE FROM SPINDLE FACE TO TURRET (MAX.):    14"

TURNING DISTANCE (MAX.):    13.8"

SPECIFICATIONS(CONT):

TAILSTOCK

CENTER TAPER:    MT NO. 3

TRAVEL (MAXIMUM):    11.5"

RAPID TRAVERSE AND RETURN RATE:    300 IPM

THRUST (MAXIMUM):    700 LBS

MISCELLANEOUS

COMPRESSED AIR REQUIREMENT:    70 TO 90 PSI

5 TO 6 SCFM

HYDRAULIC TANK CAPACITY:    10 U.S. GAL

COOLANT TANK CAPACITY:    26 U.S. GAL

SHIPPING WEIGHT, BASE MACHINE (APPROX.):    9,800 LBS

MACHINE DIMENSIONS

LENGTH:    93"

DEPTH:    70"

HEIGHT:    67"

ELECTRICS:    230V, 3 PH, 60 CYC

EQUIPPED WITH:

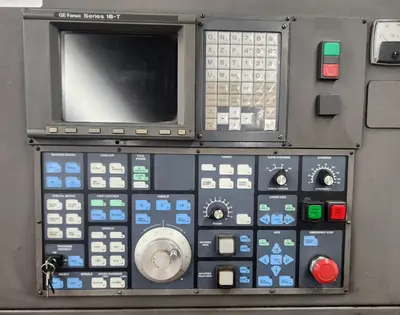

FANUC 18T  CNC CONTROL

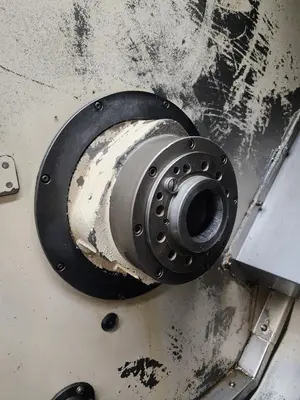

16CCOLLET CHUCK

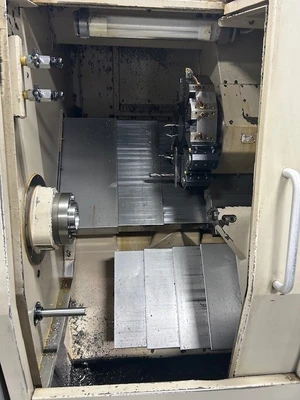

12 POSITION TURRET

TAILSTOCK

ALL AVAILABLE TOOLHOLDERS AND MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
