USED 1991 Diacro 35-6

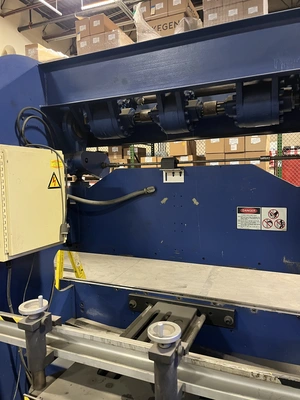

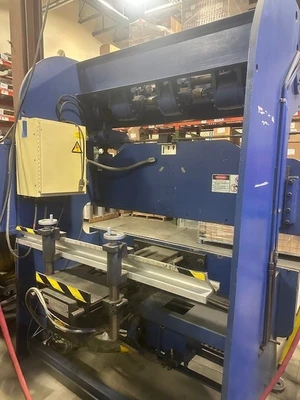

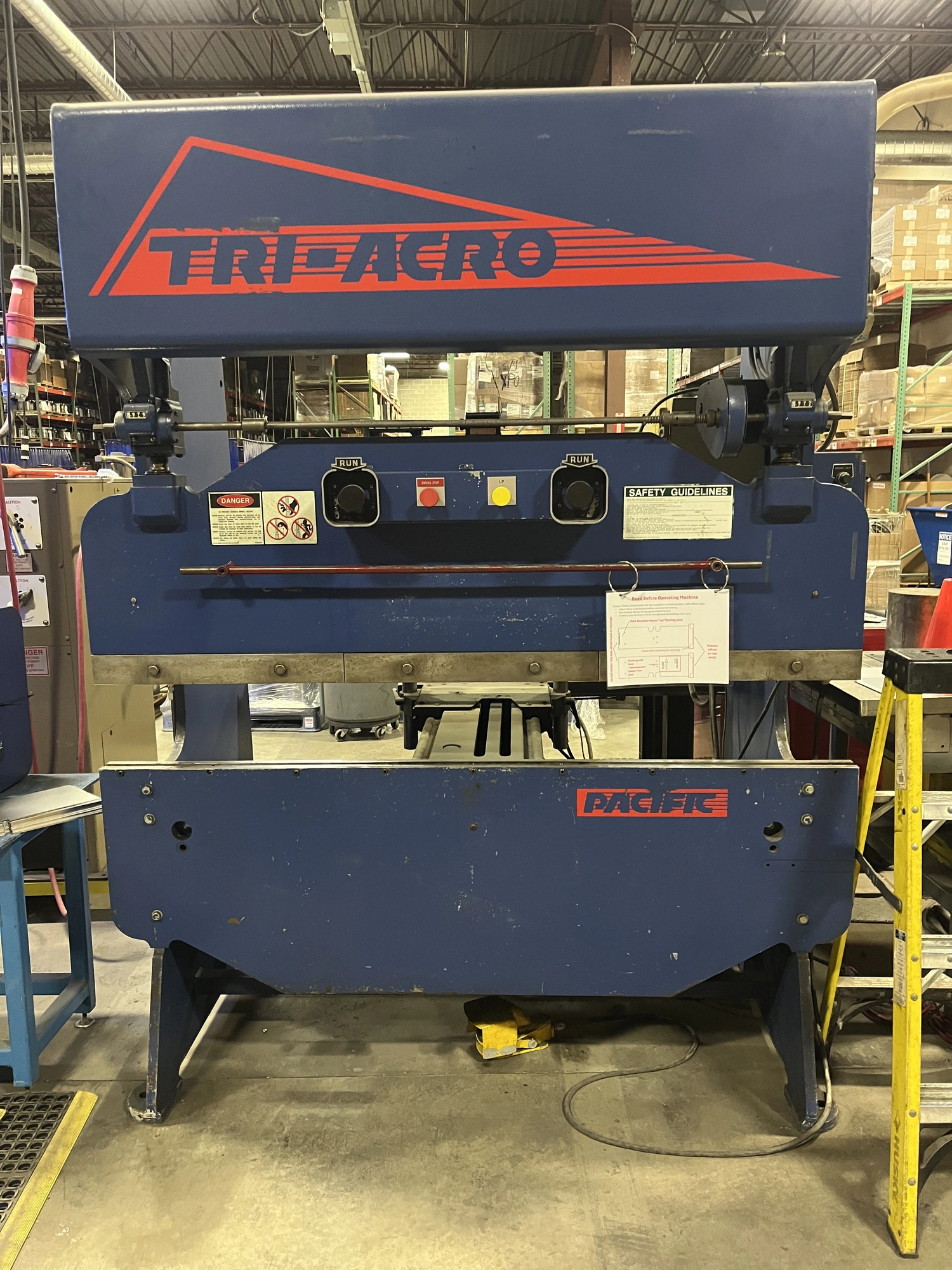

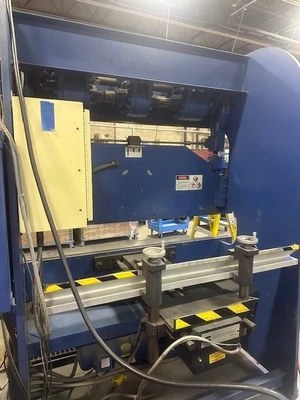

35 Ton 72" Bed Diacro 35-6 PRESS BRAKE

35 TON x 6' PACIFIC / TRI-ACRO HYDRA-MECHANICAL BRAKE

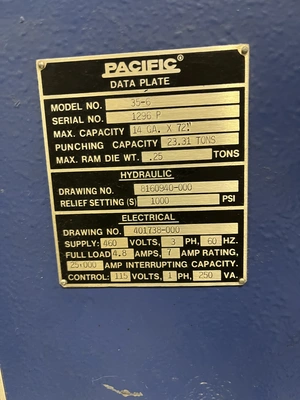

MODEL 35-6       S/N 1296-P       NEW 1991

CAPACITY .............................. 6' X 14 GA.

         .............................. 4' X 12 GA.

         .............................. 34" X 10 GA.

TONNAGE ............................... 35 TONS

PUNCHING CAPACITY ..................... 23.31 TONS

OVERALL BED LENGTH .................... 72"

DISTANCE BETWEEN HOUSINGS ............. 62"

STROKE LENGTH ......................... 2"

RAM ADJUSTMENT ........................ 3"

SHUT HEIGHT ........................... 9"

THROAT DEPTH .......................... 9"

APPROXIMATE DIMENSIONS ............ 72" X 40" X 92" H

APPROXIMATE WEIGHT ................ 5,500 LBS

MOTOR: 460 V / 3 PH / 60 HZ.

EQUIPPED WITH:

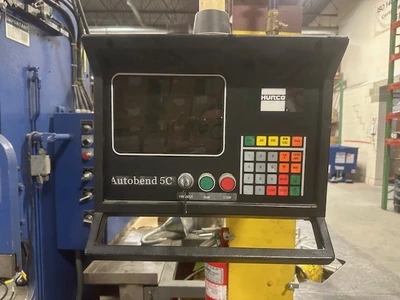

- HURCO AUTOBEND 5C CNC BACK GAUGE

- STROKE SELECTION - SET UP, INCH OR AUTO RETURN

- DUAL PALM BUTTONS

- FOOT SWITCH

- VARIABLE SPEED (HI - SLO)

FOR MORE INFORMATION: Call David at 973-497-7570
