USED 1944 Cincinnati-Bickford Super Service 3' x 9"

3' Arm Lth 9" Col Dia Cincinnati-Bickford Super Service 3' x 9" RADIAL DRILL, #4MT, 3HP, T-Slotted Box Table & Base,

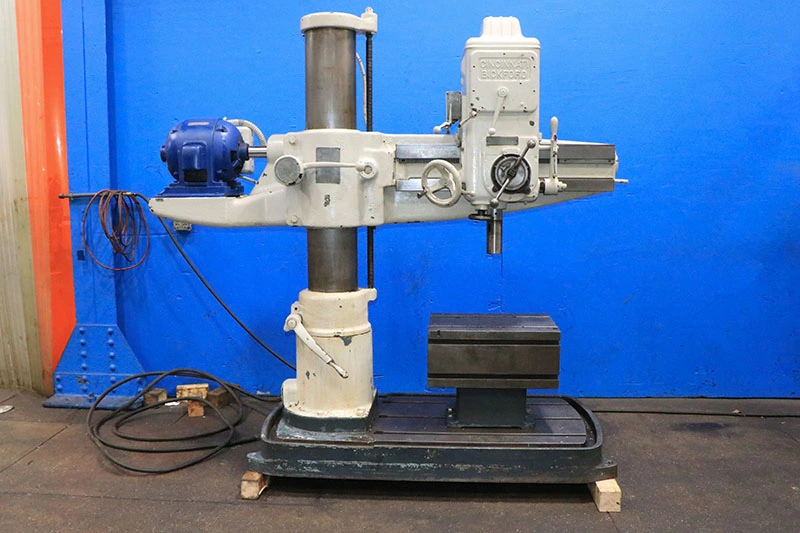

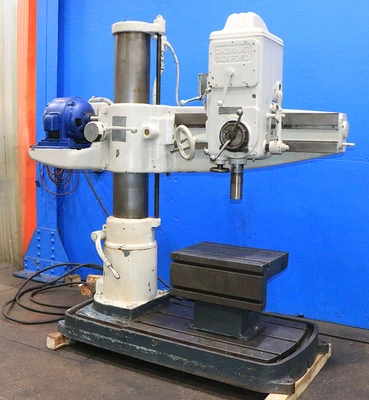

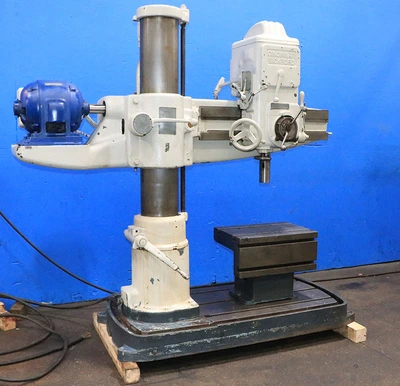

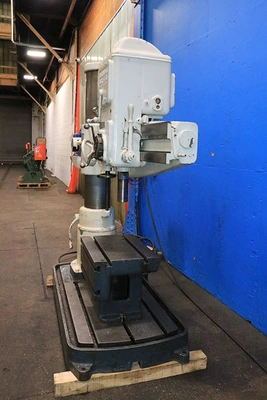

3' X 9" CINCINNATI-BICKFORD RADIAL DRILL

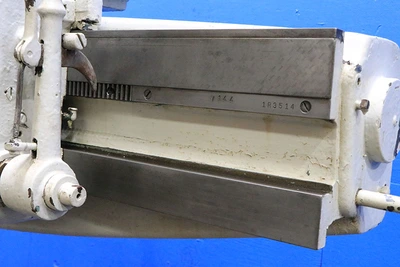

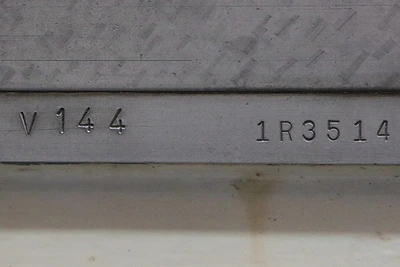

MODEL: SUPER SERVICE, S/N: 1R-3514, NEW: 1944

SPECIFICATIONS:

DIAMETER OF COLUMN .................. 9"

FACE OF COLUMN TO CENTER OF SPINDLE . 16-1/2"MIN

FACE OF COLUMN TO CENTER OF SPINDLE . 42"MAX

SPINDLE TO BASE ..................... 15-3/4"MIN

SPINDLE TO BASE ..................... 53"MAX

ELEVATING HEIGHT OF ARM ON COLUMN ... 27"

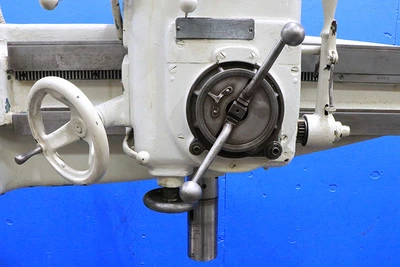

VERTICAL TRAVEL OF SPINDLE IN HEAD .. 10"

TAPER IN SPINDLE .................... #4 MT

SPINDLE FEEDS IN THOUSAND PER REV ... 4,8,14, & 20

SPINDLE SPEED RANGE(9) .............. 60 TO 1,200 RPM

WORKING SURFACE OF BASE ............. 30"W x 40"

APPROXIMATE WEIGHT .................. 4,250 LBS

APPROX FLOOR SPACE .................. 75"L  x 60"W

HEIGHT WITH ARM DOWN ON COLUMN ...... 80"

EQUIPPED WITH:

  * T-SLOTTED BASE

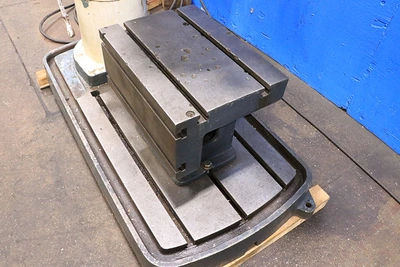

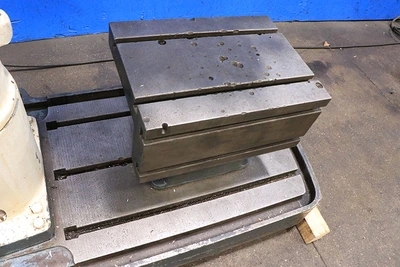

  * T-SLOTTED BOX TABLE

  * POWER ELEVATISON

  * COOLANT SYSTEM

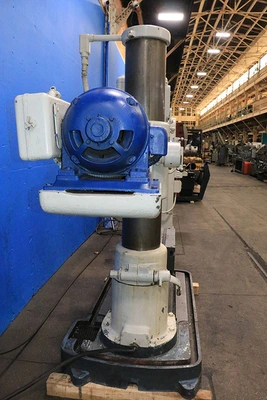

  * 3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
