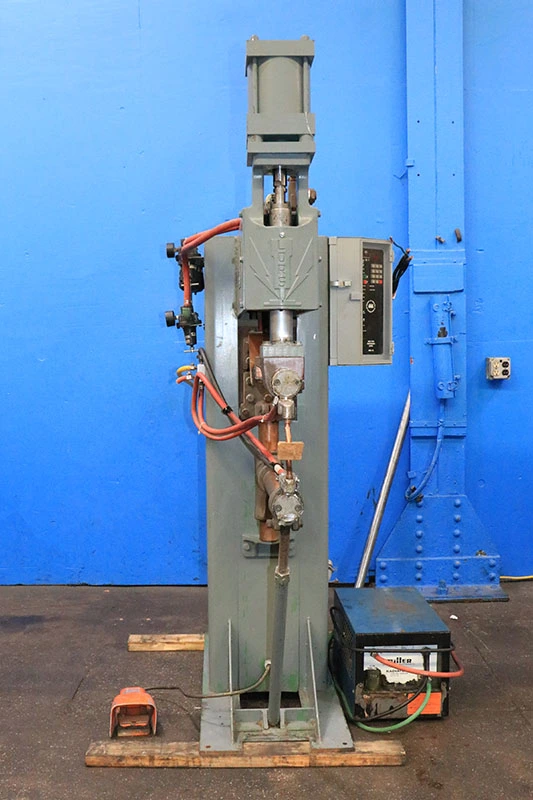

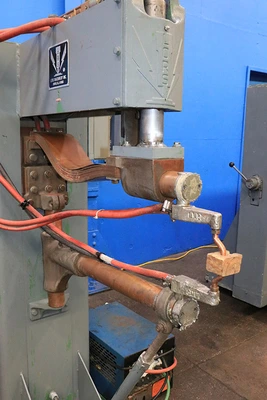

USED 1989 Lors 1100AP
Overview
Description

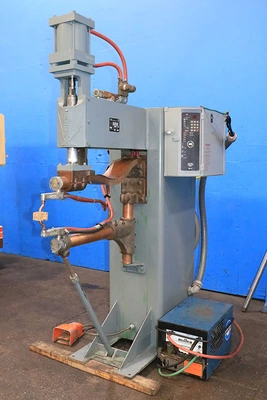

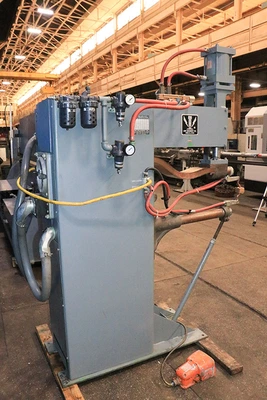

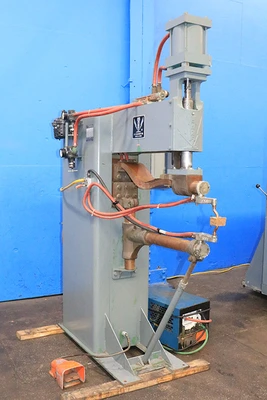

100 KVA 36" Throat Lors 1100AP SPOT WELDER
Specifications
100 KVA LORS PRESS TYPE SPOTWELDER
MODEL 1100-AP S/N 289-4045 NEW 1989
KVA ............................................ 100
RATED CAPACITY ...(2 PIECES COLD ROLL STEEL).... .165"
RATED CAPACITY ...(2 PIECES STAINLESS STEEL).... .110"
VOLTAGE ........................................ 440
SECONDARY VOLTAGE .............................. 6.7
MAXIMUM VOLTAGE ................................ 10.0
THROAT DEPTH ................................... 30"
MAXIMUM SHORT CIRCUIT .......................... 30,000
ELECTRO FORCE @ 80 PSI ......................... 4,020#
STROKE ......................................... 4"
HOLDER DIAMETER ................................ 1-1/2"
ARM DIAMETER ................................... 3"
EQUIPPED WITH:

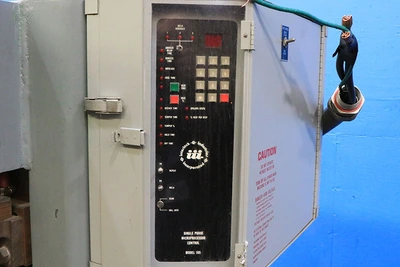

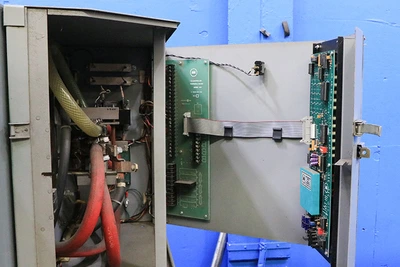

- INTERLOCK INDUSTRIES MICROPROCESSOR CONTROLS MODEL 105
- MILLER COOLER
- HEAVY DUTY WELDED STEEL FRAME

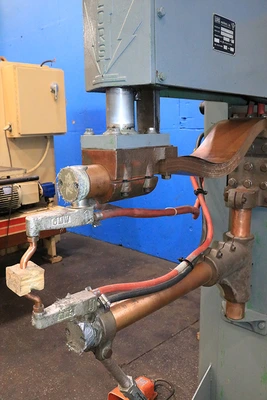

- SOLID COPPER ARMS WITH STEEL END CAPS
- MULTI-STEP TRANSFORMER TAP SWITCH
- EJECTOR-TYPE WATER COOLED TIP HOLDERS
- OPERATOR SELECTABLE SINGLE/DOUBLE STAGE FOOT SWITCH
- OPERATOR SELECTABLE SET-UP/RUN SWITCH FOR ADDED SAFETY
- CONVENIENT MANUALLY OPERATED TIP ALIGNMENT VALVE FOR QUICK SET-UP
FOR MORE INFORMATION: Call Rick at 973-497-7560
