8" Leg Lth 1" Thick Roundo R9S ANGLE BENDING ROLLS

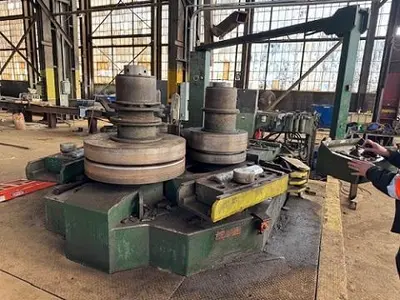

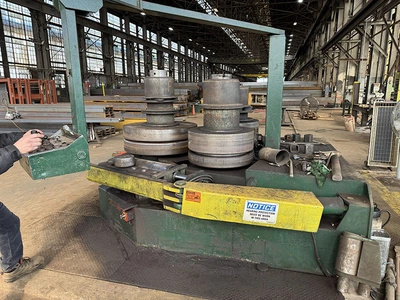

8" X 8" X 1" ROUNDO HYDRAULIC ANGLE BENDING ROLL

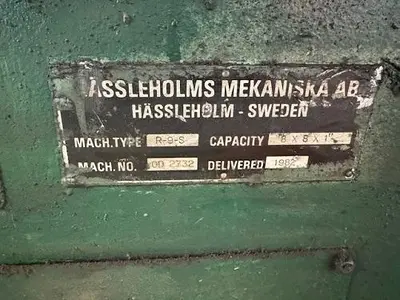

MODEL R9S S/N OD2732 NEW 1982
ROLL DIAMETER .................... 29"
ANGLE IRON, LEG OUT .............. 8" X 8" X 1"
MIN. DIAMETER .................... 125"
ANGLE IRON, LEG IN ............... 8" X 8" X 3/4"
MIN. DIAMETER .................... 140"
ANGLE IRON, SMALLEST SIZE ........ 3" X 3" X 1/4"
FLAT IRON, ON FLAT ............... 3" X 15"
FLAT IRON, ON EDGE ............... 2-1/4" X 8"
MIN. DIAMETER .................... 80"
T IRON, LEG OUT .................. WT8" X 50"
WT7" X 141.5"
T IRON, LEG IN ................... WT8" X 50"
WT7" X 116.5"
I BEAM & CHANNEL ................. 18"WF
SQUARE BAR ....................... 6"
ROUND BAR ........................ 6"
PIPE ............................. 9"
MIN. DIAMETER .................... 120"
FLOOR SPACE ...................... 110" X 165"
APPROX. WEIGHT ................... 50,000 LBS.
MOTOR HP ......................... 75 / 220 / 440 V
EQUIPPED WITH:

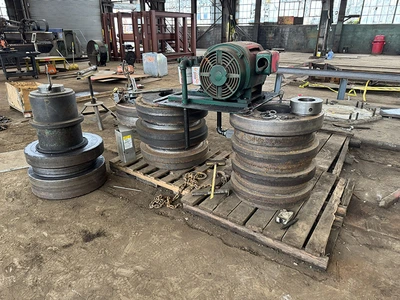

- LARGE AMOUNT OF MISC. DIES

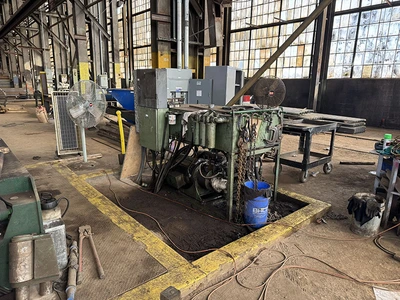

- HYDRAULIC MOTOR WITH BUILT IN BRAKE & CONTROLS
PROVIDING INFINITELY VARIABLE SPEEDS 3 PH / 60 HZ / 220 / 440
- HYDRAULICALLY OPERATED AND POWERED ADJUSTMENT OF LOWER ROLLS
- SIX-DIRECTIONAL HYDRAULICALLY OPERATED AND POWERED GUIDE ROLLS
- REMOTELY OPERATED PUSH BUTTON CONTROLS WITH EMERGENCY STOP
FOR MORE INFORMATION: Call Rick at 973-497-7560
