USED 1988 DoAll 3613-1

36" Throat 13" Height DoAll 3613-1 VERTICAL BAND SAW, Vari-Speed, Air Table Feed, Blade Welder,

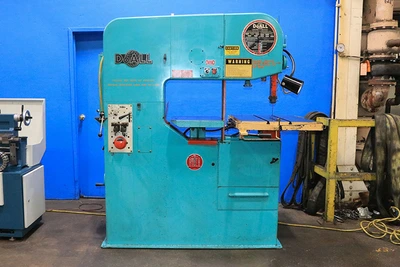

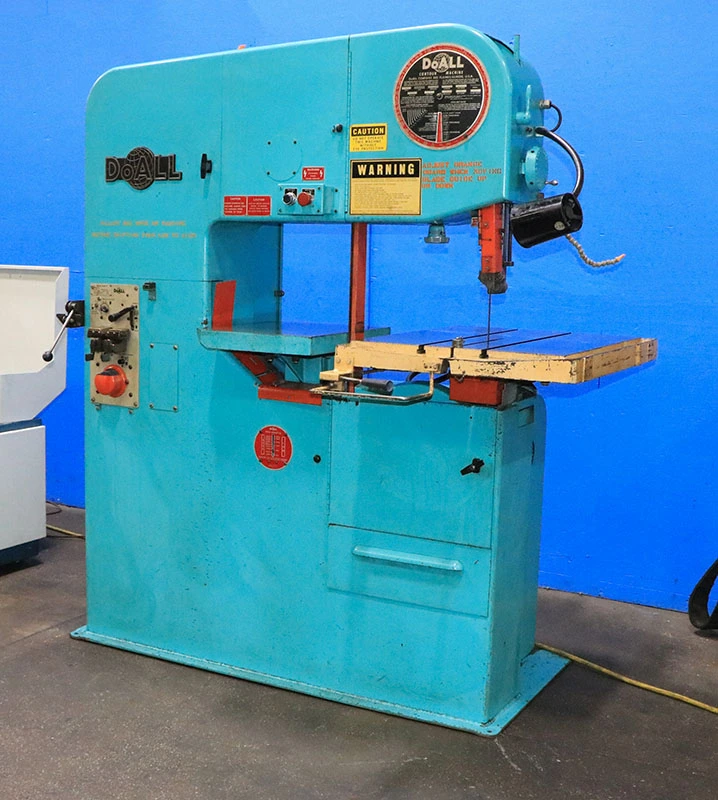

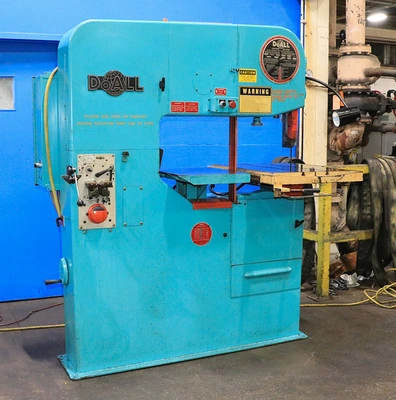

36" DOALL VERTICAL BANDSAW

MODEL: 3613-1, S/N:440-88290, NEW: 1988

SPECIFICATIONS:

THROAT CAPACITY ......................... 35-1/2"

WORK HEIGHT ............................. 13"

BAND WIDTH .............................. 1/16" - 1"

TABLE WORKING SIZE ...................... 24" x 30-1/2"

TABLE OVERALL w/COOLANT TROUGH .......... 27" x 33-3/4"

TABLE TILT .............................. 45 DEG R, 10 DEG L

BLADE SPEED RANGE INFINITELY VARIABLE:

    LOW RANGE ........................... 50 - 300 FPM

    HIGH RANGE .......................... 850 - 5,200 FPM

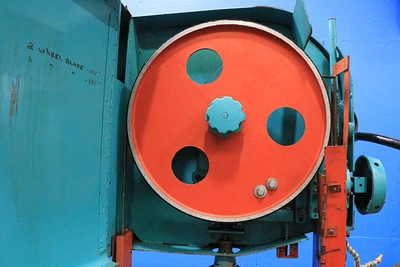

BAND LENGTH 2 WHEEL ..................... 125"

BAND LENGTH 3 WHEEL ..................... 175"

APPROXIMATE FLOOR SPACE ................. 76" X 39" X 78"H

APPROXIMATE WEIGHT ...................... 1,750 LBS

EQUIPPED WITH:

AIR ACTUATED POWER TABLE FEED

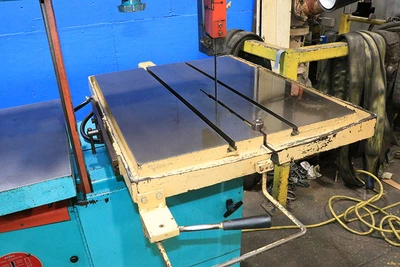

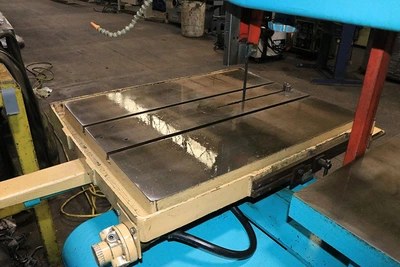

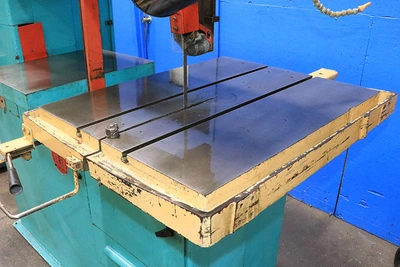

T-SLOTTED TABLE

AUXILIARY

AIR BLOWER

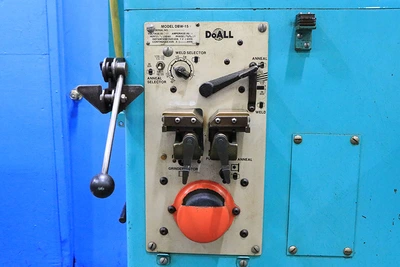

DOALL MODEL:DBW-15 BLADE WELDER GRINDER & SHEAR

3 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Andy at 973-497-7600
