USED 1995 Wilton 5216001

5' Arm Lth 17" Col Dia Wilton 5216001 RADIAL DRILL, 7.5HP,#5MT, Box Tbl,Power Elevation & Clamping,

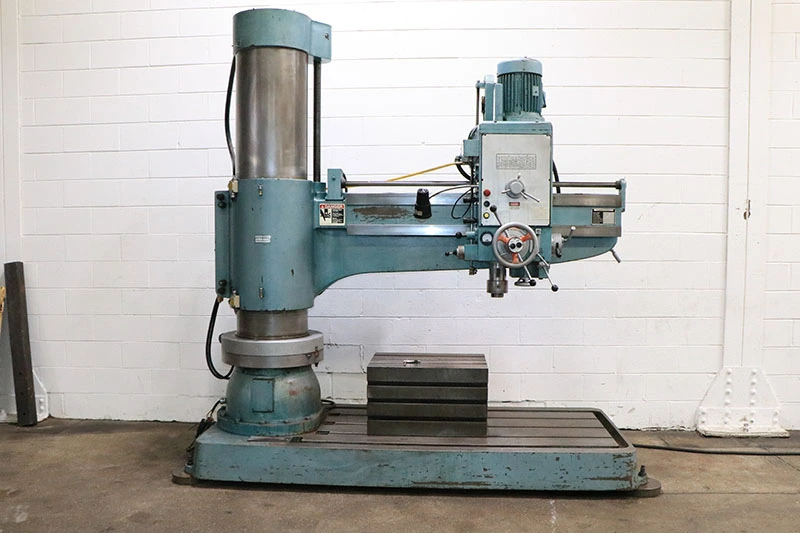

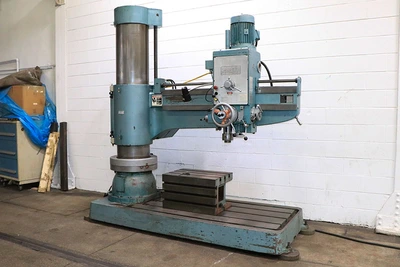

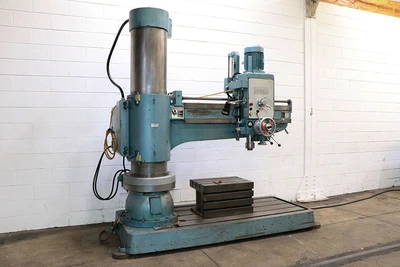

5' X 17" WILTON RADIAL DRILL

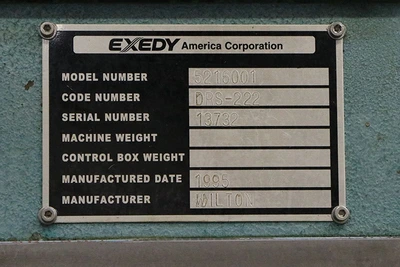

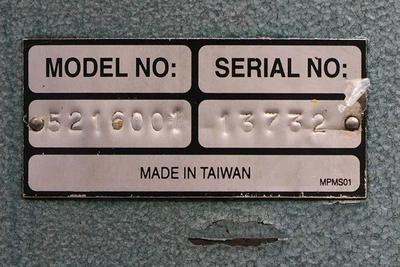

MODEL: 5216001, S/N: 137732,  NEW: 1995

SPECIFICATIONS:

COLUMN DIAMETER ....................... 17"

CENTER OF SPINDLE TO COLUMN ........... 63"

MINIMUM COLUMN TO SPINDLE ............. 13-3/8"

MAXIMUM DISTANCE SPINDLE TO BASE ...... 63"

MINIMUM DISTANCE SPINDLE TO BASE ...... 13"

STROKE OF SPINDLE ..................... 14-9/16"

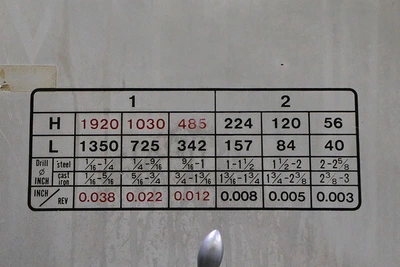

SPINDLE SPEED RANGE(12) ............... 40 - 1920 RPM

SPINDLE TAPER ......................... NO. 5 MORSE

SPINDLE FEEDS (6) ..................... .0012 - .038 IPR

DRILLING CAPACITY:

    IN STEEL .......................... 2-1/2"

    IN CAST IRON ...................... 2-7/8"

TAPPING CAPACITY:

    IN STEEL .......................... 2"

    IN CAST IRON ...................... 2-3/8"

BORING CAPACITY:

    IN STEEL .......................... 5"

    IN CAST IRON ...................... 7"

APPROXIMATE MACHINE WEIGHT ............ 11,200 LBS

APPROXIMATE SHIPPING DIMENSIONS ....... 40"W x 78"L x 115"H

MAXIMUM WORKING HEIGHT ................ 125"

EQUIPPED WITH:

POWER ELEVATION

POWER CLAMPING

T-SLOTTED BASE

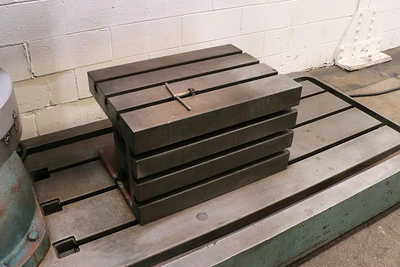

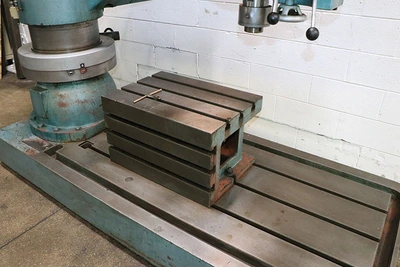

T-SLOTTED BOX TABLE 27"L x 19"W x 16"H

COOLANT SYSTEM

7-1/2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
