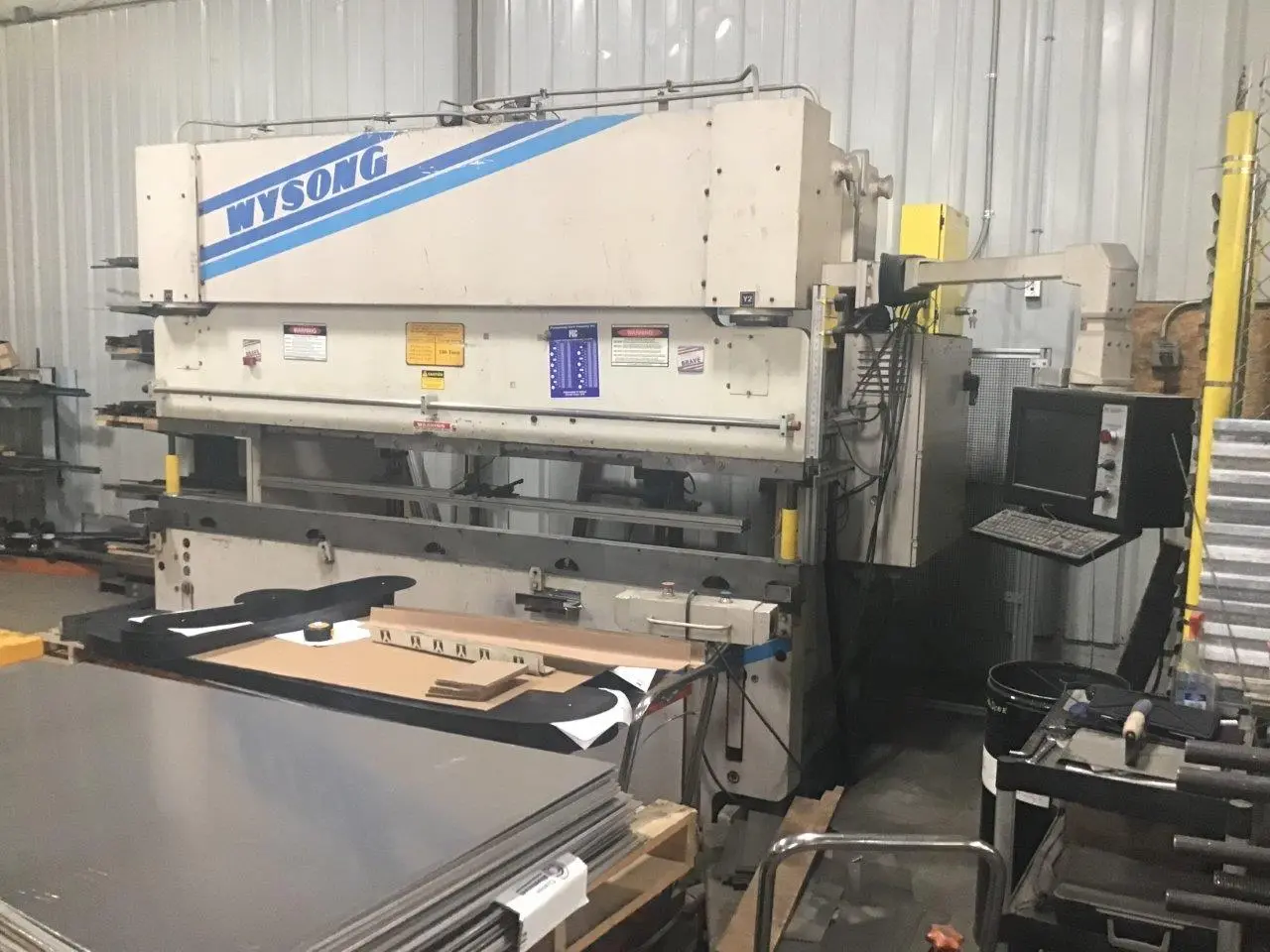

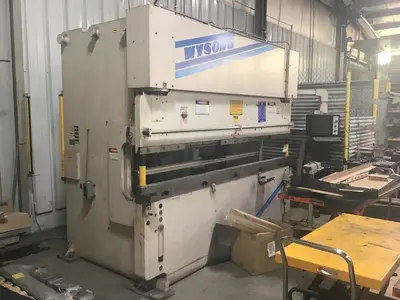

USED 1999 Wysong FAB100-120

100 Ton 120" Bed Wysong FAB100-120 PRESS BRAKE

100 TON x 10' WYSONG HYDRAULIC PRESS BRAKE

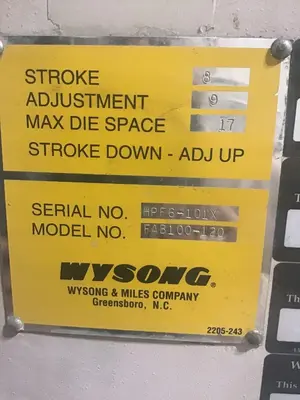

MODEL FAB100-120     S/N HPF6-101X      NEW 1999

TONNAGE ............................ 100 TON

BENDING LENGTH ..................... 120"

DIST. BETWEEN HOUSINGS ............. 102"

RATED CAPACITY ..................... 10 GA X 10'

               ..................... 3/16" X 8'7"

               ..................... 1/4" X 5'

OPEN HEIGHT ........................ 17"

SHUT HEIGHT ........................ 9"

STROKE LENGTH ...................... 8"

THROAT DEPTH ....................... 7"

APPROACH SPEED - IN./MIN. .......... 375

PRESS SPEED - IN./MIN. ............. 40

RETURN SPEED - IN./MIN. ............ 400

MAXIMUM RAM TILT ................... .625"

OVERALL LENGTH ..................... 127"

OVERALL WIDTH ...................... 56.5"

OVERALL HEIGHT ..................... 106.5"

MOTOR .............................. 25 HP

OIL RESERVOIR CAPACITY ............. 40 GALLONS

ESTIMATED SHIPPING WEIGHT .......... 17,500 LBS.

EQUIPPED WITH:

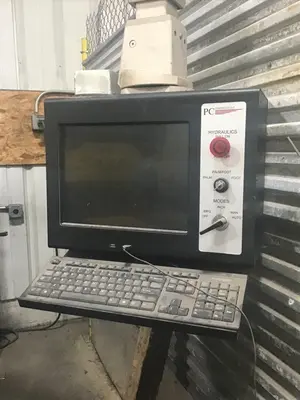

 - PC CONTROLS 38" CNC BACK GAUGE (INSTALLED 2019)

 - LOWER DIE RAIL

 - PEDESTAL STAND W/ DUAL PALM BUTTONS & EMERGENCY STOP

FOR MORE INFORMATION: Call Rick at 973-497-7560
