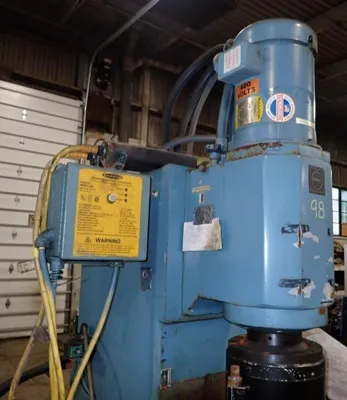

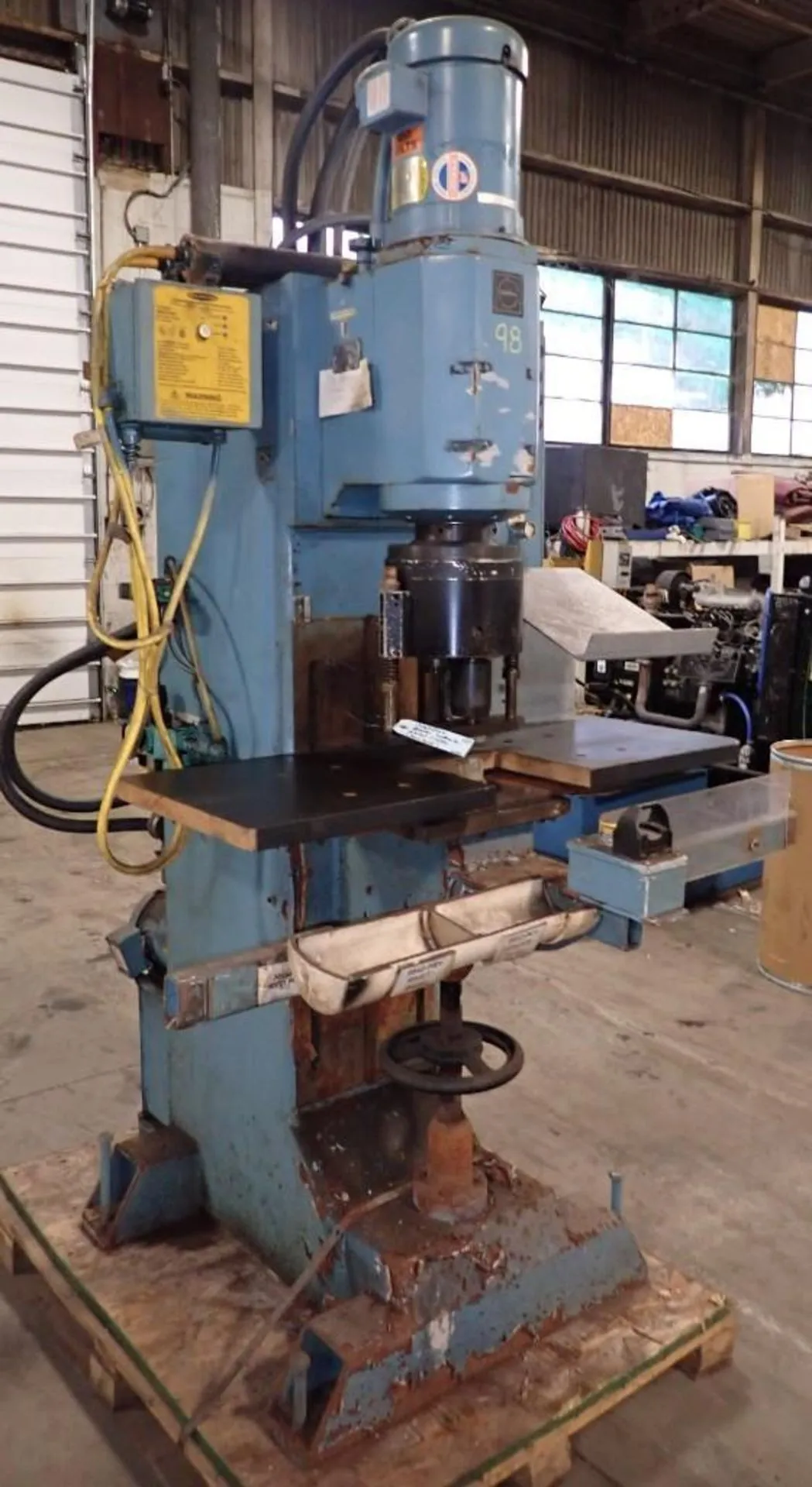

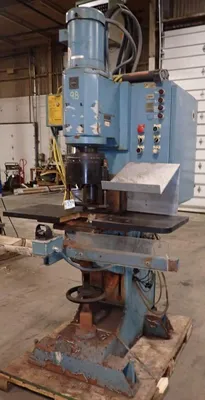

USED 1995 Orbitform P-1000

1" Rivet Cap 9" Throat Orbitform P-1000 RIVETER

ORBITFORM MODEL P-1000 HYDRAULIC RIVETER

MODEL P-1000           S/N 9509-068          Year 1995

HEAD FORMING CAPACITY ............. 1" Diameter. (MILD STEEL)

STROKE ............................ .06"-2-1/2"

MAXIMUM DOWNWARD FORCE ............ 18,000 lbs @ 1000 PSI

Bed Area .......................... 14 3/8" x 11 3/8"

Riser Size ........................ 12" x 10" x 8" high

Max Open Height ................... 15"

THROAT DEPTH ...................... 9"

Floor to Bed ...................... 37"

HYDRAULIC MOTOR 2 HP 220/440V

SPINDLE MOTOR 2 HP 220/440V

Dimensions 45" X 32" X 95" high

WEIGHT 1,150 LBS

Machine is equipped with:

- MANUAL / AUTOMATIC MODE SWITCH

- MANUAL Advance / Retract SELECTOR SWITCH

- Allen Bradley Micrologix 1000 PLC

- FINGER TRIP

- PEDESTAL BASE

FOR MORE INFORMATION: Call Rick at 973-497-7560
