USED 2001 Pexto 3617

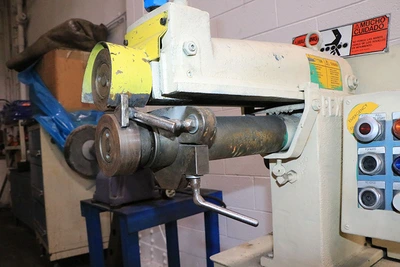

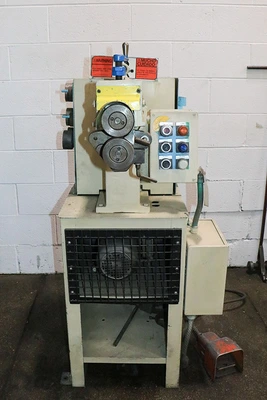

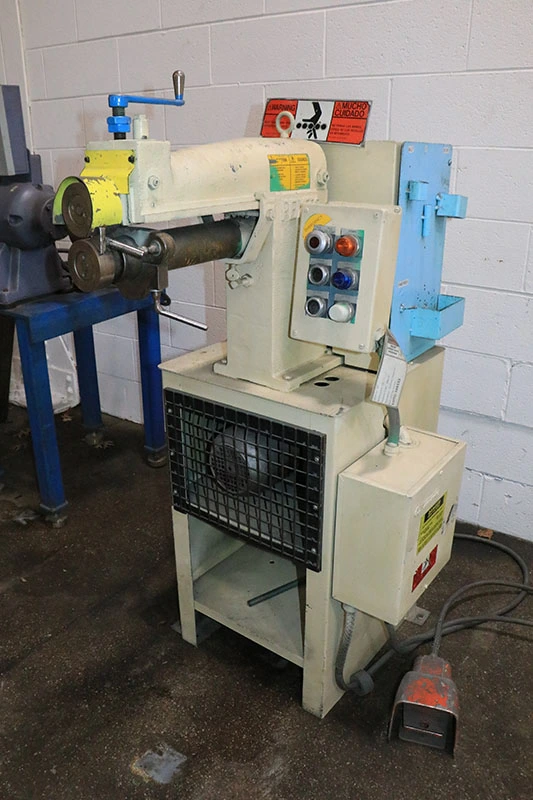

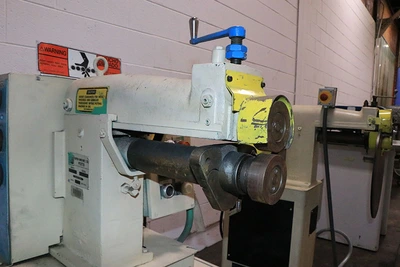

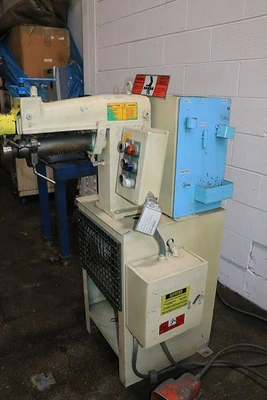

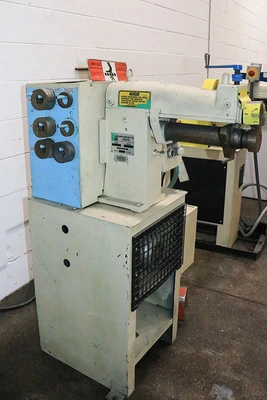

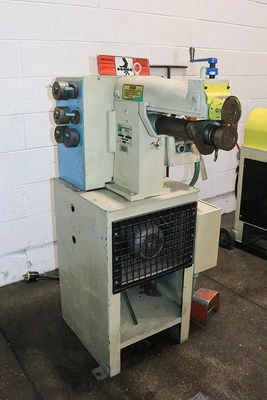

Pexto 3617 CRIMP & BEADING MACHINE

ROPER-WHITNEY (PEXTO)

Power Crimping & Beading (Combination) Machine

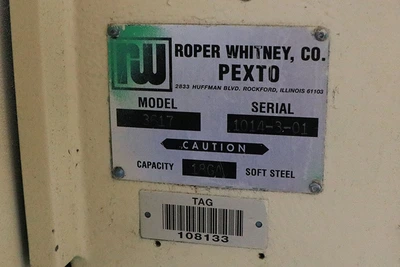

Model 3617             S/N 1014-3-01            New 2001

Capacity, mild steel .............. 18 gauge

Capacity, stainless ............... 22 gauge

Throat depth ...................... 13"

Distance between centers .......... 3"

Roll speed ........................ 40 R.P.M.

Ratio gearing ..................... 3-1/2:1

Equipped with:

Capability of being used with the following

  type of rolls: turning, burring, wiring, elbow

  edging, flange, flattening, crimping, ogee bead,

  single bead, slitting cutter, furnace collar edging,

  and offset

- One piece cast frame

- Forward / reverse operation

- Extra sets of roll tooling

- Adjustable shaft support brackets

- Work support stand

- Full set of manuals

- Floor stand with adjustable motor mount

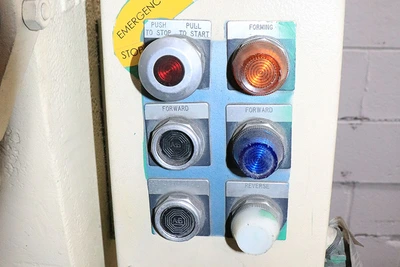

- Remote electric foot pedal for directional control

  of rolls

- 3/4 H.P. 3/60/230 volt "V" belt driven geared motor

  drive and electrical controls

Dimensions: 24" x 36" x 48" high

Approximate Weight: 500 Lbs.

FOR MORE INFORMATION: Call Rick at 973-497-7560
