USED 2006 Durma E37160

176 Ton 144" Bed Durma E37160 PRESS BRAKE

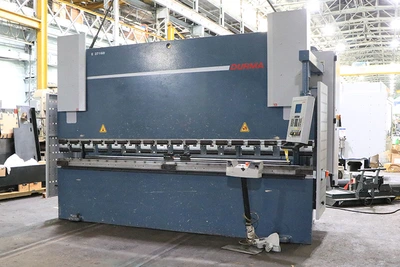

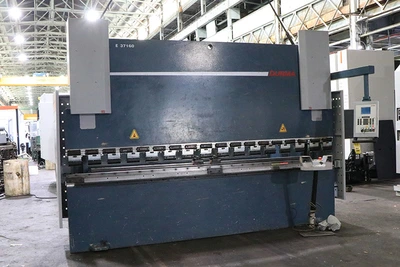

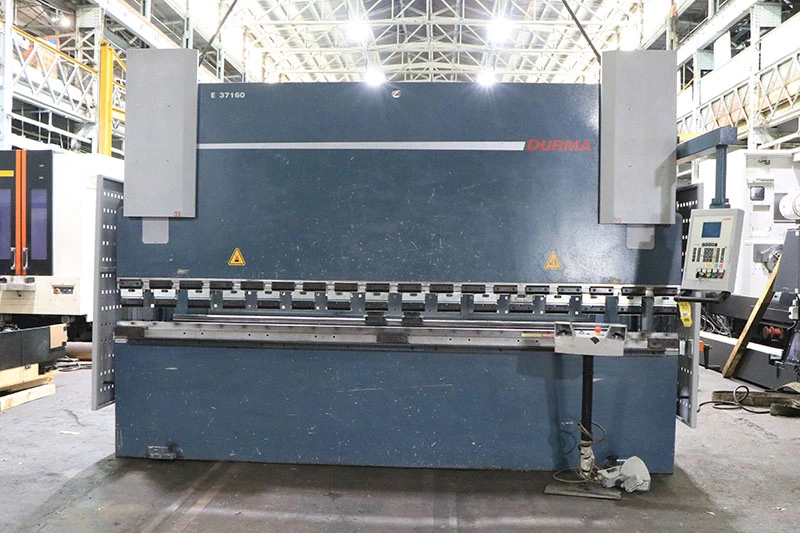

12' x 176 TON DURMA SYNCHRO-HYDRAULIC PRESS BRAKE

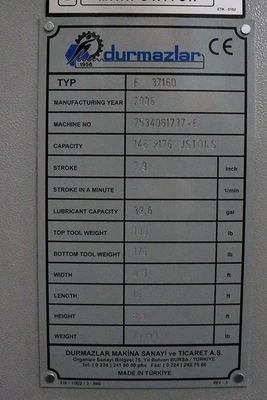

MODEL E37160       S/N 7534061737-E       NEW 2006

Capacity ........................ 176 Ton

Overall Length of Bed & Ram ..... 146"

Distance Between Housings ....... 122"

Stroke (Adjustable) ............. 7.9"

Open Height ..................... 16.9"

Throat Depth .................... 13.8"

Speeds .......................... 3.93 I/Sec - Approach

                                  0.35 I/Sec - Bending

                                  3.38 I/Sec - Return

Table Width ..................... 4"

Table Height .................... 33.77"

Back Gauge Range ................ 24"

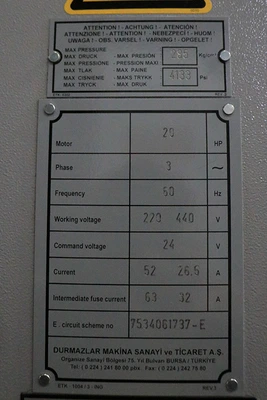

Voltage ......................... 230 / 460 / 3 Ph

EQUIPPED WITH:

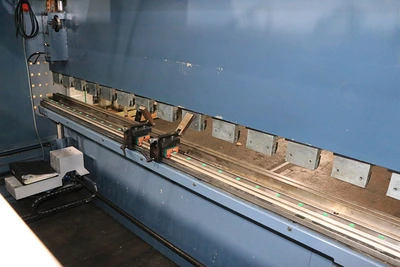

- 3-Axis Synchro CNC Back Gauge (Y1, Y2 & X)

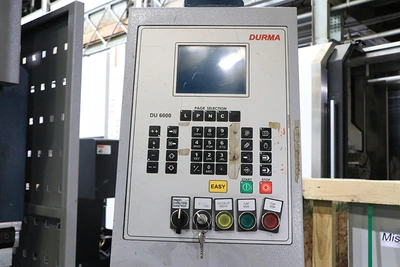

- Numerical Control Cybelec DU6000

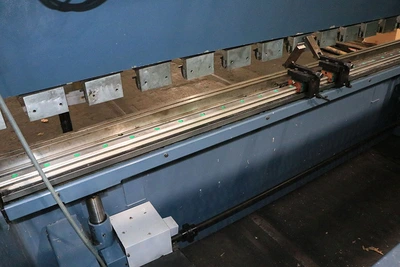

- Lower Die Rail

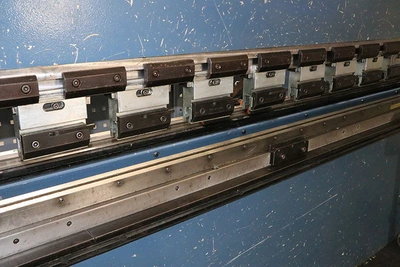

- European Clamping System

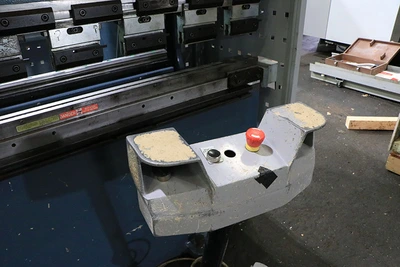

- Dual Palm Button or Electric Foot Switch Operation

- Back Gauge Fingers with Adjustable Height

- Manual Crowning

Weight: 24,030 Lbs.

Dimensions: 193" L-R x 59" F-B x 106" H

FOR MORE INFORMATION: Call Rick at 973-497-7560
