USED 2014 Durma AD-R-30175

192.5 Ton 120" Bed Durma AD-R-30175 PRESS BRAKE, Delem 56s Back Gauge

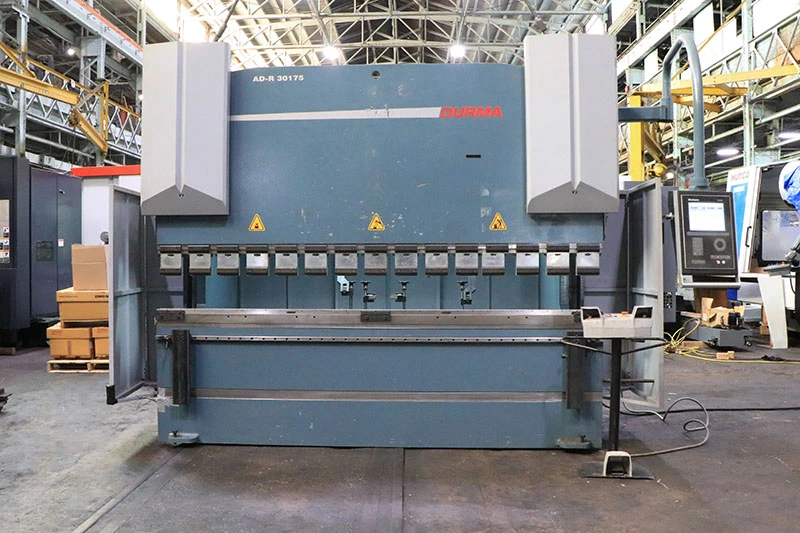

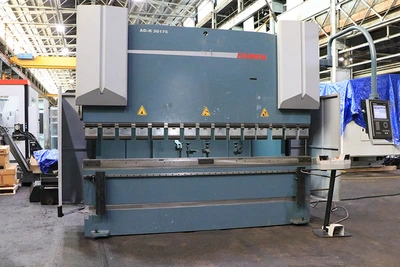

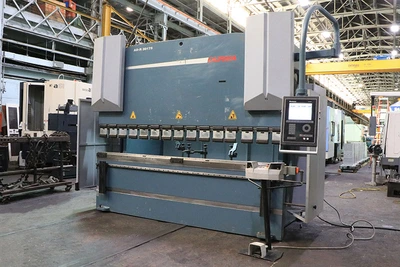

10' x 192.5 TON DURMA CNC HYDRAULIC PRESS BRAKE

MODEL AD-R 30175       S/N 7333149384       NEW 2014

Capacity ........................ 192.5 Ton

Overall Length of Bed & Ram ..... 10'

Distance Between Housings ....... 8'6"

Stroke (Adjustable) ............. 10.4"

Open Height ..................... 21"

Throat Depth .................... 16"

Speeds .......................... 283 IPM - Approach

                                  24 IPM - Press

                                  236 IPM - Return

Motor ........................... 25 HP

Voltage ..(currently 460)........ 230 / 460 / 3 Ph

EQUIPPED WITH:

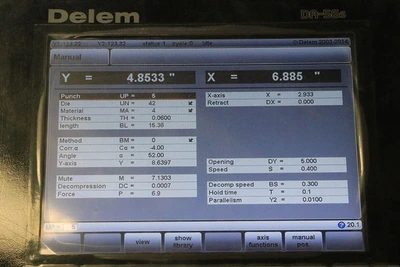

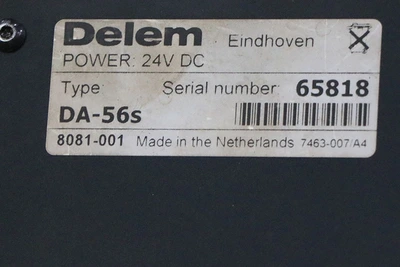

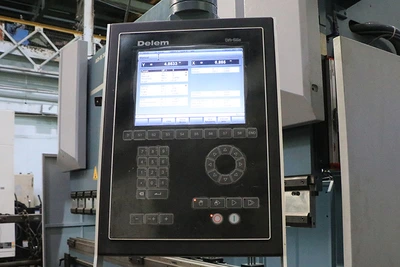

- Delem DA-56s 3-Axis CNC Back Gauge (X, Y1, Y2)

- Manual R Axis

- Manual Crowning

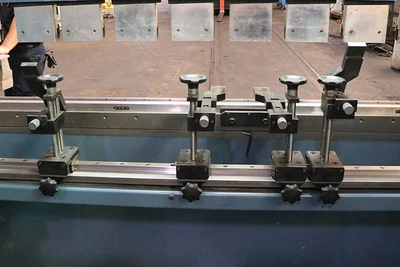

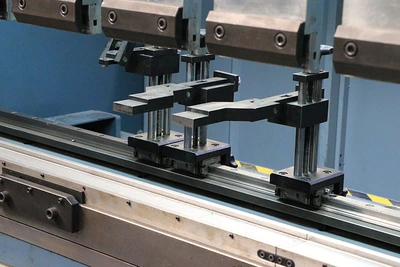

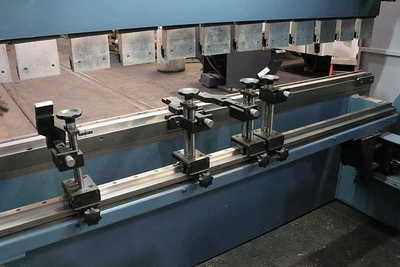

- 4 Adjustable Fingers on Back Gauge

- Lower Die Rail

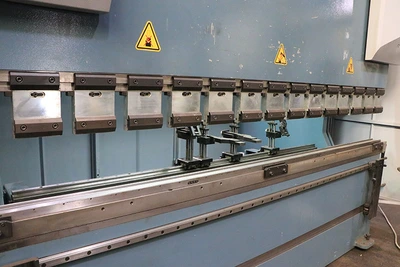

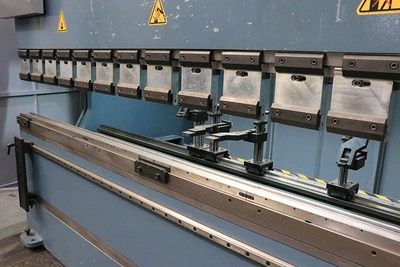

- Full Complement of Sectional Ram Clamps

- Dual Palm Button or Electric Foot Switch Operation

- All Manuals

Weight: 25,353 Lbs.

Dimensions: 14' L-R x 8'4" F-B x 9' H

FOR MORE INFORMATION: Call Rick at 973-497-7560
