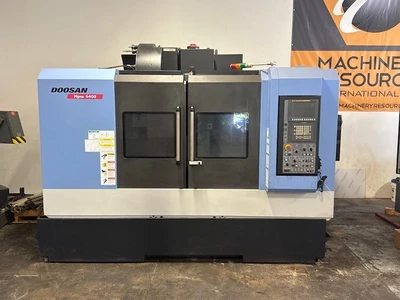

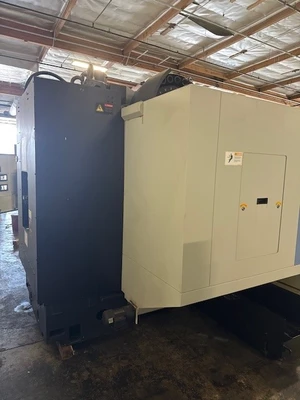

USED 2012 Doosan MYNX 5400

40.2" X Axis 21.3" Y Axis Doosan MYNX 5400 VERTICAL MACHINING CENTER, Fanuc Control, CT40, 30 ATC, TSC,Box Ways, Augers,

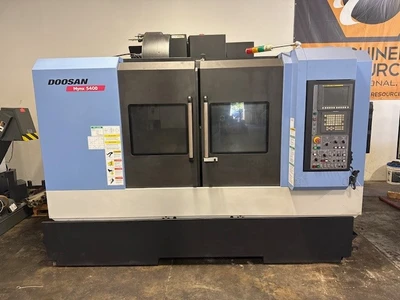

DOOSAN CNC VERTICAL MACHINING CENTER

MODEL: MYNX 5400,  NEW: 2012

SPECIFICATIONS:

X-AXIS TRAVEL ............................. 40.2" / 1020mm

Y-AXIS TRAVEL ............................. 21.3" / 540mm

Z-AXIS TRAVEL ............................. 20.9" / 530mm

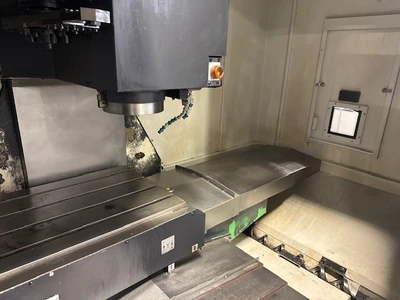

TABLE SIZE ................................ 47.2" x 21.3"

TABLE LOAD CAPACITY ....................... 1764 LBS

TABLE TOP TO SPINDLE NOSE ................. 5.9" - 26.8"

SPINDLE TAPER ............................. CAT-40

SPINDLE SPEED ............................. 8,000 RPM

SPINDLE MOTOR ............................. 30 HP

SIDE MOUNT TOOLCHANGER .................... 30 ATC

RAPID TRAVERSE RATE (X,Y/Z) ............... 1181/945 IPM

CUTTING FEED RATES ........................ .04 - 472 IPM

APPROXIMATE FLOOR SPACE ............... 96.2" x 132" x 108"H

APPROXIMATE MACHINE WEIGHT ................ 15,500 Lbs.

EQUIPPED WITH:

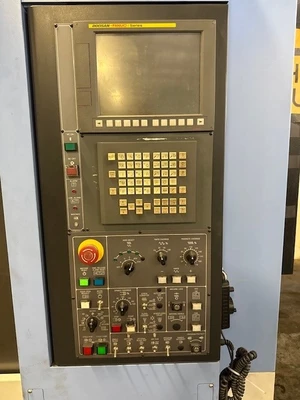

- FANUC SERIES I WITH EZ GUIDE CONTROL

- BOX WAY CONSTRUCTION

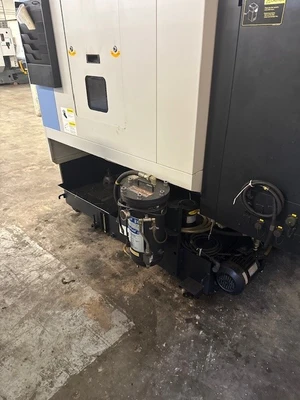

- COOLANT THROUGH SPINDLE

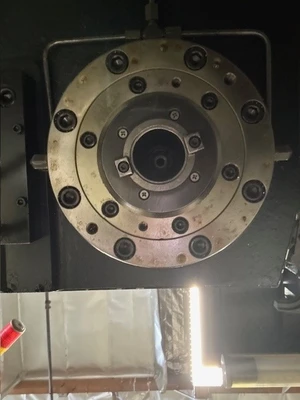

- DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER

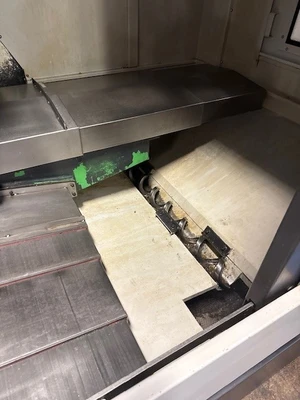

- DUAL AUGERS

- 20 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN A WEST COAST WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
