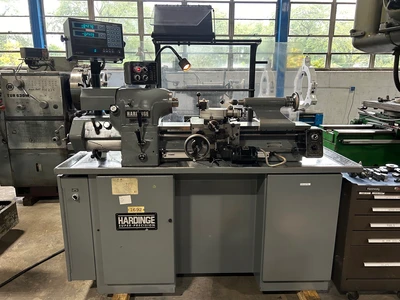

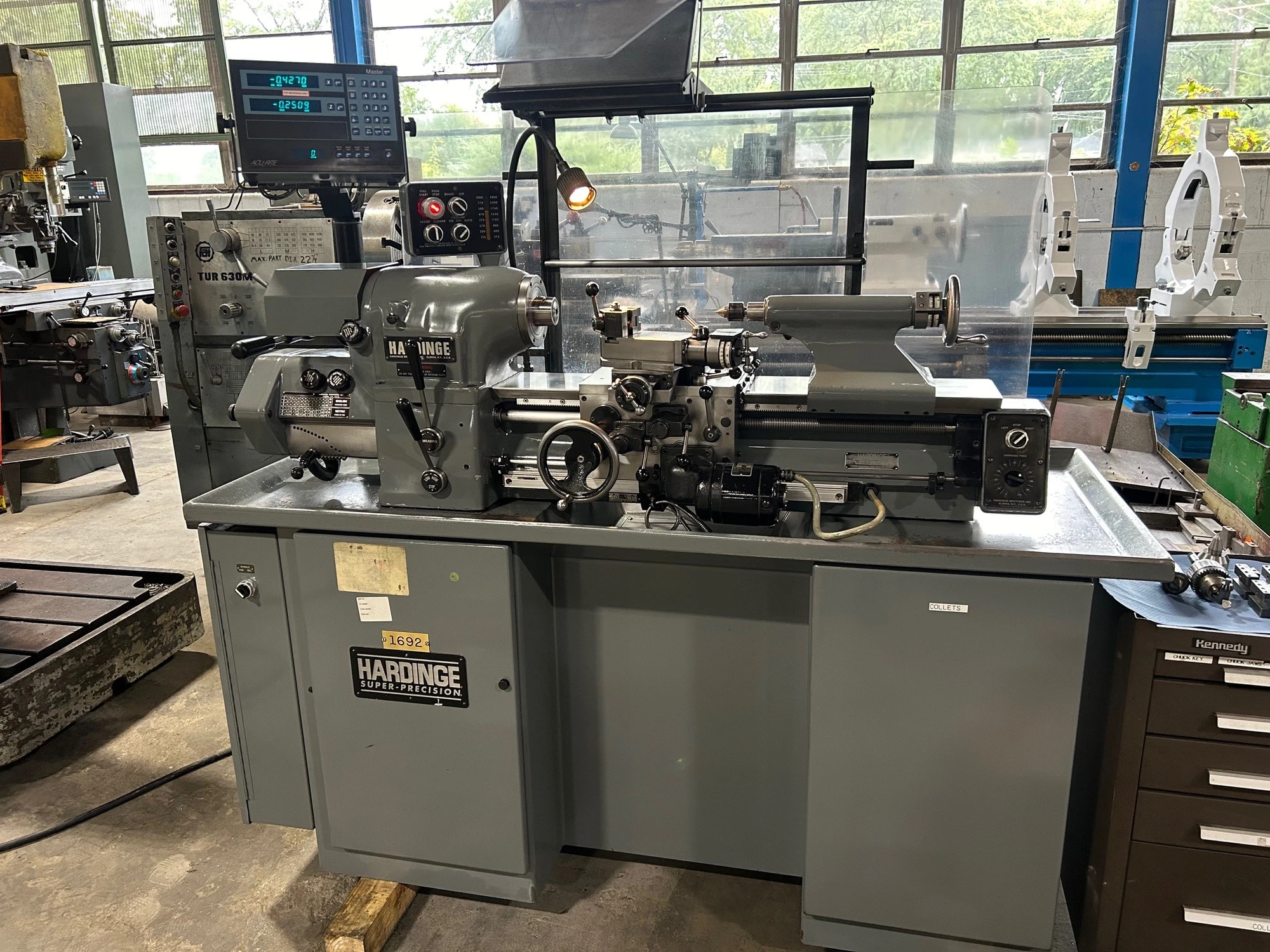

USED 1997 Hardinge HLV-EM

11" Swing 18" Centers Hardinge HLV-EM PRECISION ENGINE LATHE, Inch/Metric,Acu-rite DRO,Taper,5C Collet,Like NEW

HARDINGE SUPER-PRECISON TOOLROOM LATHE

MODEL: HLV-EM, S/N: HLV-H-14850-T, NEW: 1997

SPECIFICATIONS:

SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION

                                   PRELOADED BALL BEARING

SPINDLE NOSE ..................... HARDINGE TAPERED

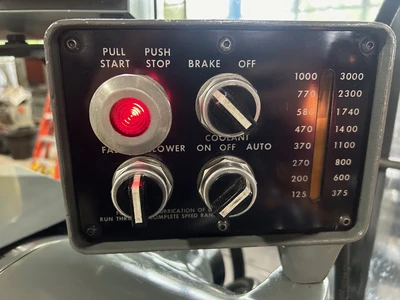

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM

HOLE THROUGH SPINDLE ............. 1-1/4"

SPINDLE CAPACITY:

    w/ROUND 5C COLLETS ........... 1-1/6

    w/HEXAGON 5C COLLETS ......... 7/8"

    w/SQUARE 5C COLLETS .......... 3/4"

    w/STEP CHUCKS ................ 1-1/16" TO 6"

    w/JAW CHUCKS ................. 5"

    w/EXPANDING COLLETS .......... 3"

SWING OVER BED ................... 11"

SWING OVER CARRIAGE .............. 9"

SWING OVER CROSS SLIDE ........... 6"

DISTANCE BETWEEN CENTERS ......... 18"

COMPOUND SLIDE TRAVEL ............ 3"

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM

CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM

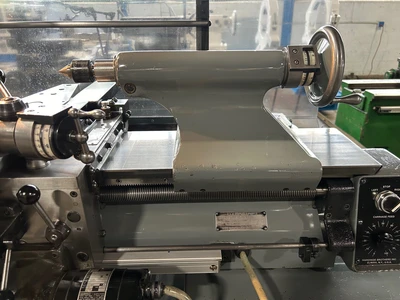

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"

TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"

TAILSTOCK SPINDLE TAPER .......... #2 MT

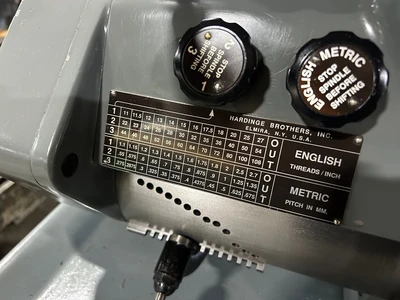

THREADING RANGE .................. 11" TO 108" TPI

INCH THREADING RANGE ............. 11 - 108 T.P.I.

METRIC THREADING RANGE ........... 0.275 - 2.7 MM

APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"

APPROX. WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:

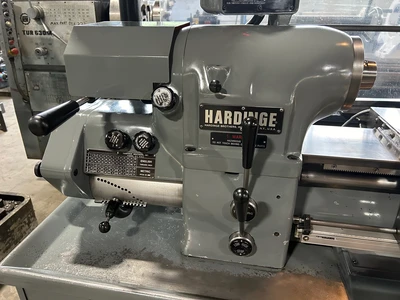

- INCH/METRIC THREADING CAPABILITY

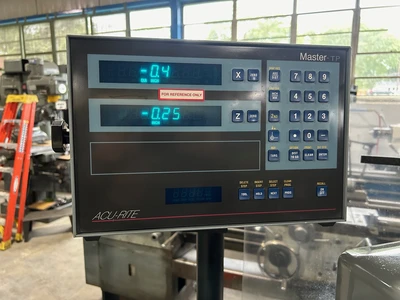

- ACU-RITE TWO AXIS DIGITAL READOUT

- INCH/METRIC DUAL DIALS ON TAILSTOCK & COMPOUND

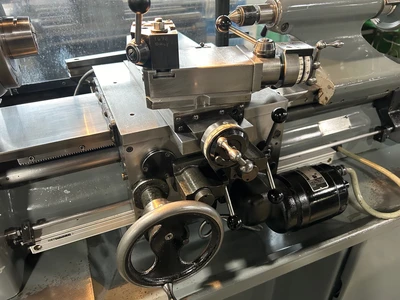

- HARDINGE TAPER TURNING ATTACHMENT

- HARDINGE LEVER TYPE 5C-COLLET CLOSER

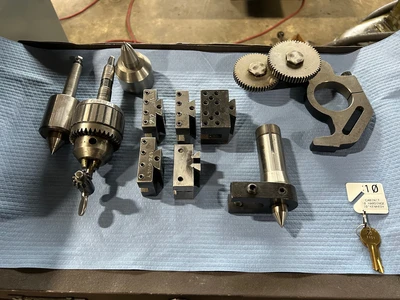

- HARDINGE MODEL: L19 QUICK CHANGE TOOLPOST WITH HOLDERS

- JACOBS DRILL CHUCK FOR TAILSTOCK

- LIVE CENTER FOR TAILSTOCK

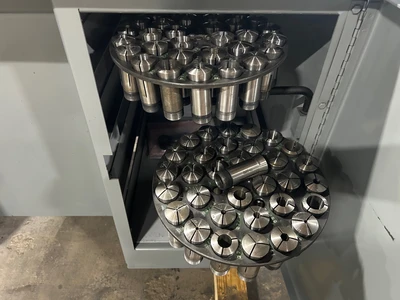

- ASSORTMENT OF 5C COLLETS

- COOLANT SYSTEM

- 1.5 HORSE POWER TWO SPEED MOTOR

- MACHINE HAS A FACTORY-INSTALLED MULTI-TAP TRANSFORMER ALLOWING THE FOLLOWING VOLTAGE OPTIONS: 230/460 VOLTS

INSPECT UNDER POWER IN MID-WEST WAREHOUSE

 MACHINE HAS ITS ORIGINAL PAINT

****  SUPERB-CONDITION  ****

FOR MORE INFORMATION: Call David at 973-497-7570
